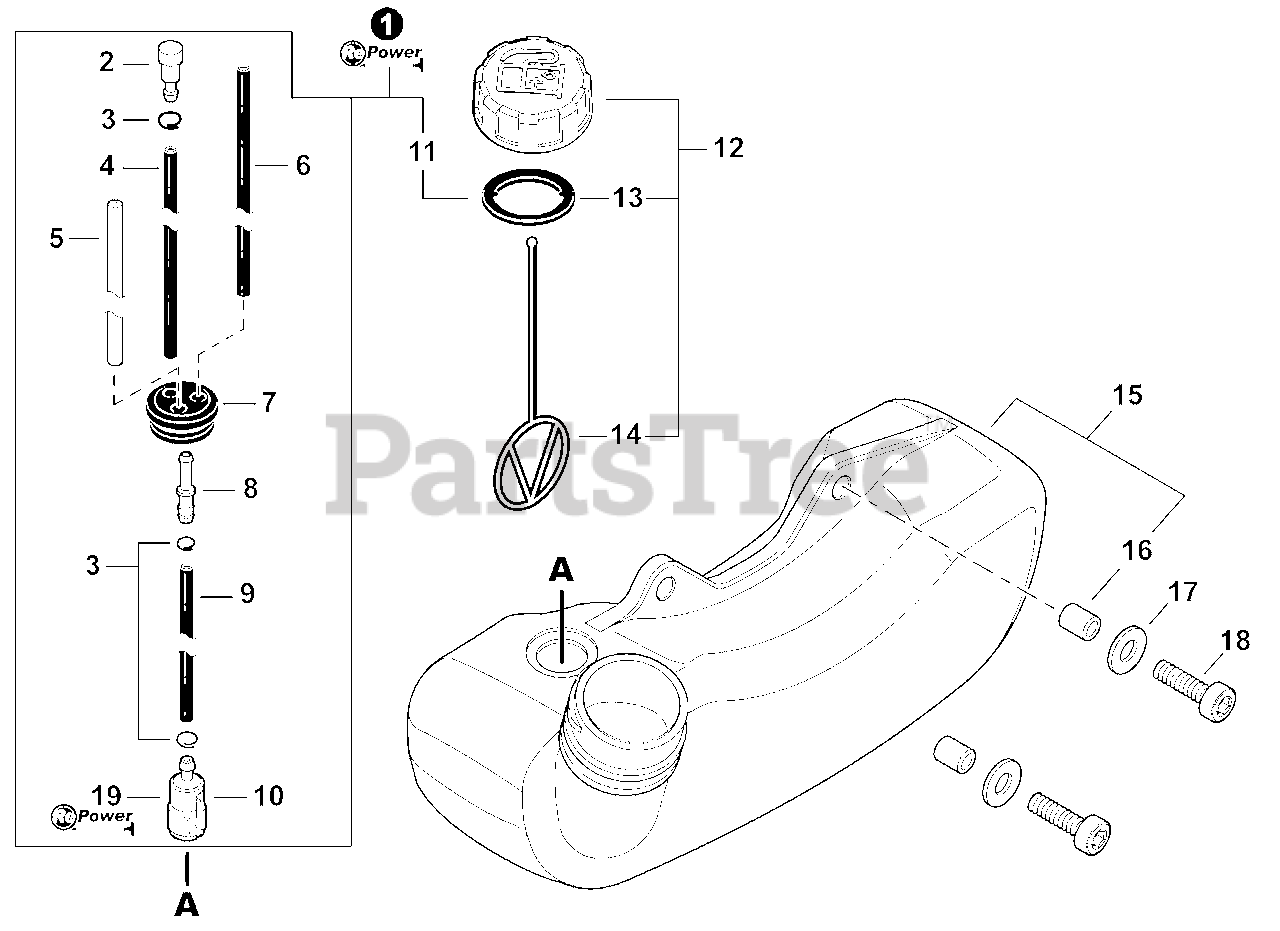

ES-250 - Echo Shred N Vac Blower (SN: P41814001001 - P41814999999) Fuel System Parts Diagram

Shred N Vac Blower

Fuel System Parts Diagram

  • Title

1

Echo 90129

FUEL SYSTEM KIT - REPOWER
(Superseded to 90129Y)

Note: Includes Items 2-11

$23.99

$

In Stock, only 4 left!

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 18

0

4

Echo 13201204631

PIPE, FUEL 3×5×80 BLACK

$

$

Not available

5

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, only 3 left!

0

6

Echo V471003590

PIPE, FUEL 3×5×78 BLACK
(Superseded to V471005630)

$3.49

$

In Stock, only 1 left!

0

7

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

$1.49

$

In Stock, only 4 left!

0

10

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

15

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Item 16

$24.99

$

In Stock, only 3 left!

0

16

Echo 13104528230

SPACER 6.2×7.8×6

$1.49

$

In Stock, Qty 20+

0

17

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

19

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0
