ES-250 - Echo Shred N Vac Blower (SN: P40412001001 - P40412999999) Fan, Ignition, Right Fan Cover Parts Diagram

Shred N Vac Blower

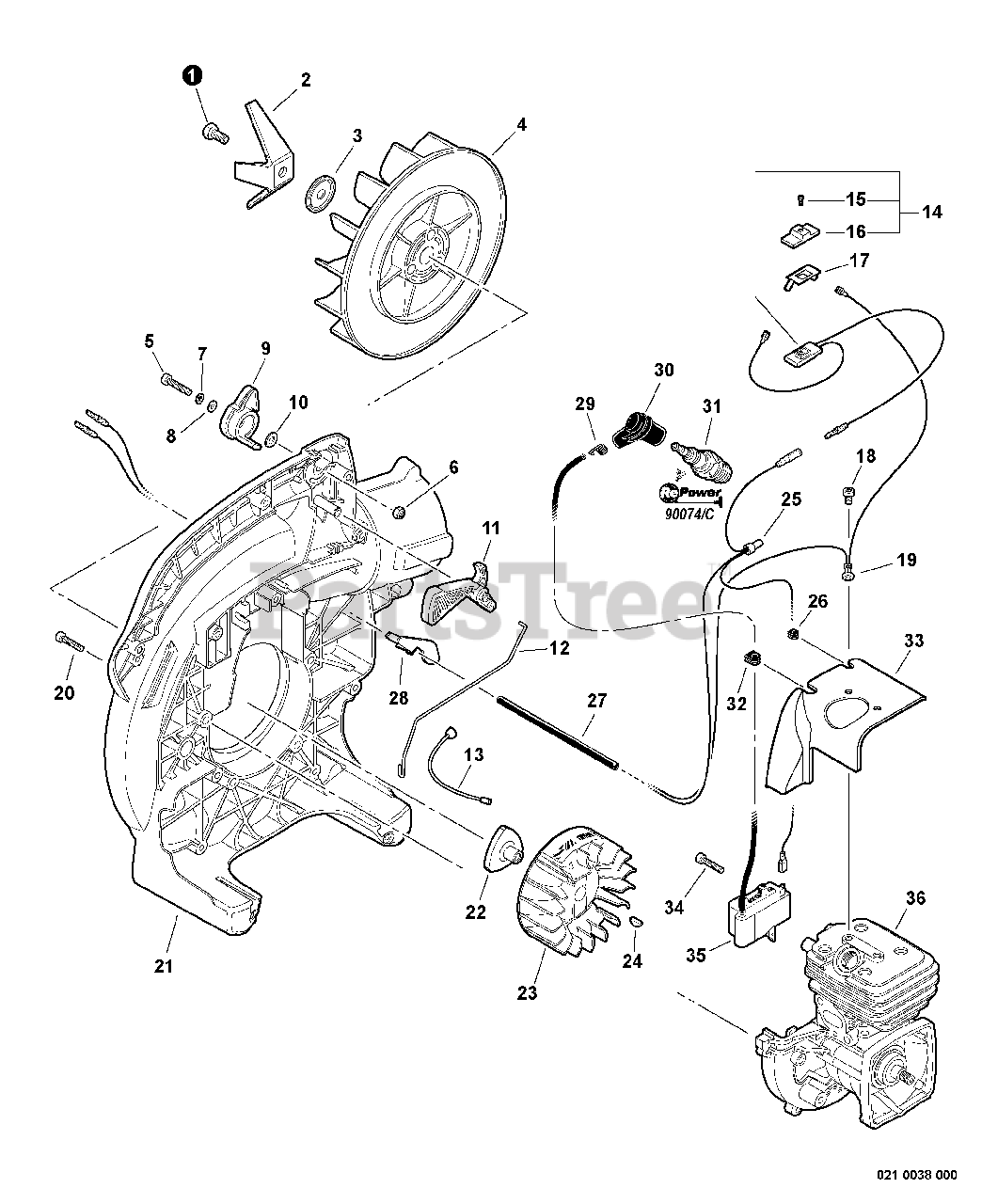

Fan, Ignition, Right Fan Cover Parts Diagram

  • Title

1

Echo 90010508015

SCREW - 8X15

$0.99

$

In Stock, only 3 left!

0

2

Echo X413000010

CUTTER, SHREDDER

$6.49

$

In Stock, only 1 left!

0

3

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, Qty 6

0

4

Echo E100000220

FAN

$16.99

$

In Stock, Qty 11

0

5

Echo V805000220

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0

6

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

8

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo C453000300

LEVER, THROTTLE

$1.99

$

In Stock, only 3 left!

0

10

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo C450000720

TRIGGER, THROTTLE

$2.99

$

In Stock, only 2 left!

0

12

Echo C454000480

ROD, THROTTLE

$4.49

$

In Stock, only 2 left!

0

13

Echo V431000000

CABLE, THROTTLE

$1.99

$

In Stock, Qty 20+

0

14

Echo A440001310

IGNITION SWITCH ASSY
(Superseded to P021045250)

Note: Includes ITEMS 15-16

$9.99

$

In Stock, only 1 left!

0

15

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

16

Echo A444000060

KNOB, SWITCH - ORANGE

$3.99

$

Usually ships in 2-4 days

0

17

Echo V486000150

TERMINAL - GROUND

$0.99

$

In Stock, only 4 left!

0

18

Echo V805000120

SCREW - 5X8

$0.99

$

In Stock, Qty 7

0

19

Echo V485002220

LEAD - GROUND

$1.99

$

In Stock, only 3 left!

0

20

Echo V804000070

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

21

Echo E103000691

COVER, FAN - RIGHT

$75.99

$

Usually ships in 2-4 days

0

22

Echo E101000122

HUB, FAN

$7.99

$

In Stock, only 1 left!

0

23

Echo A409001250

FLYWHEEL

$21.99

$

In Stock, only 2 left!

0

24

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

25

Echo V485002210

LEAD - IGNITION

$3.49

$

Usually ships in 2-4 days

0

26

Echo 15211505530

GROMMET

$0.99

$

In Stock, only 3 left!

0

27

Echo V475006820

TUBE, INSULATOR

$1.99

$

Usually ships in 2-4 days

0

28

Echo V162000640

GUIDE

$2.49

$

Usually ships in 2-4 days

0

29

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

30

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 6

0

31

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

31

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS

$3.49

$

In Stock, Qty 20+

0

32

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

33

Echo A160001260

SHIELD, CYLINDER

$3.99

$

Usually ships in 2-4 days

0

34

Echo V804000070

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

35

Echo A411000500

COIL, IGNITION
(Superseded to A411000501)

$79.99

$

In Stock, Qty 20+

0

36

Echo SB1104

SHORT BLOCK -- SB1104

$133.99

$

Usually ships in 2-4 days

0

37

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

37

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: CANADA MODELS

$20.99

$

In Stock, Qty 19

0
