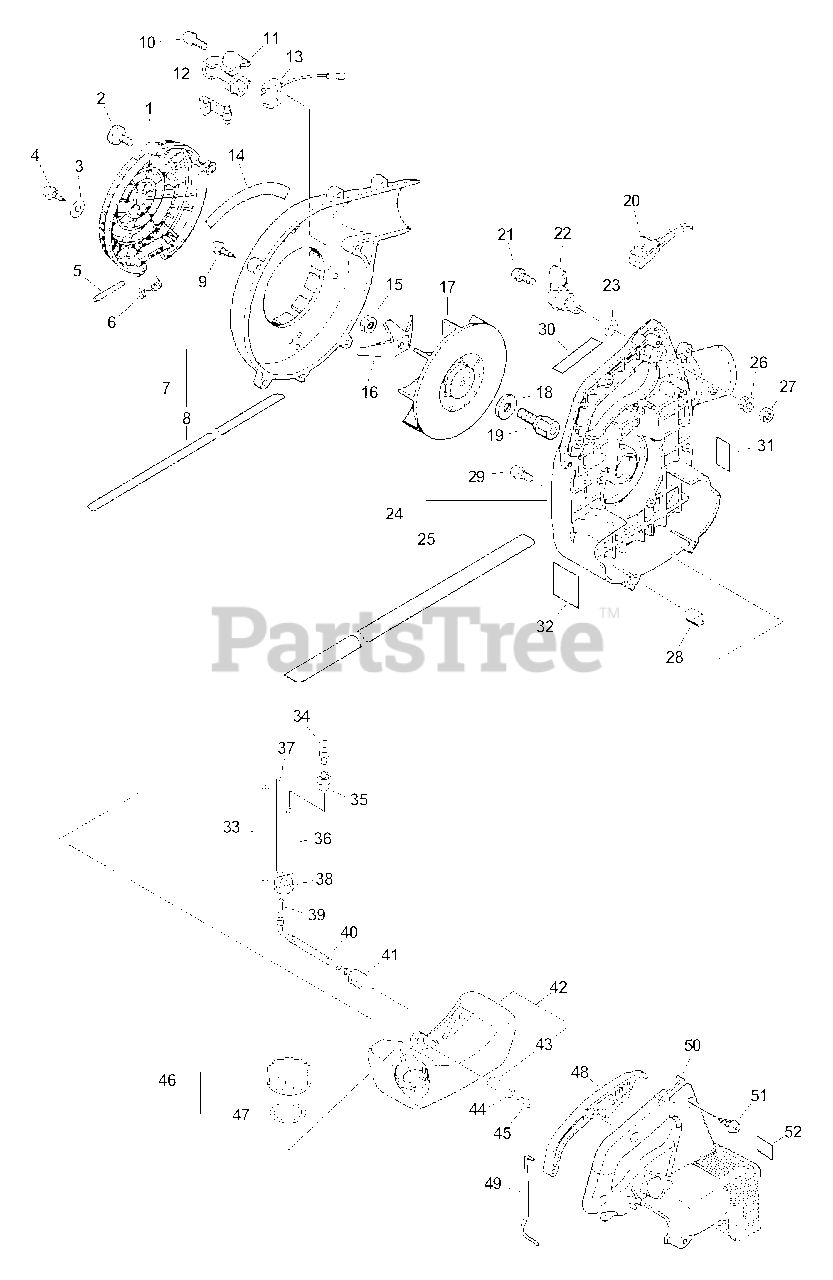

ES-2400 - Echo Shred N Vac Blower (Type 1E) Fan Case, Engine Cover, Fuel System Parts Diagram

Shred N Vac Blower (Type 1E)

Fan Case, Engine Cover, Fuel System Parts Diagram

  • Title

1

Echo 20012420661

GUARD, DEBRIS

$20.99

$

In Stock, only 3 left!

0

2

Echo 13040606360

THUMBSCREW
(Superseded to 13040620660)

$2.49

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

5

Echo 20015005060

PIN

$2.99

$

In Stock, only 1 left!

0

6

Echo 20015205060

SPRING

$3.49

$

In Stock, only 3 left!

0

7

Echo 20010920661

FAN COVER ASSY - LEFT
(Superseded to 20010920662)

Note: Includes ITEM 8

$

$

Not available

8

Echo 22012020560

CUSHION
(Superseded to 22012020561)

$7.49

$

Usually ships in 2-4 days

0

9

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

10

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

11

Echo 16381020660

BRACKET, SWITCH - GRAY

$9.99

$

In Stock, only 1 left!

0

12

Echo 16333520660

LEVER, SHUT OFF ACTUATOR

$3.99

$

Usually ships in 2-4 days

0

13

Echo 16340020660

IGNITION SWITCH ASSY

$10.99

$

Usually ships in 2-4 days

0

14

Echo 89011509560

LABEL - MODEL ES-2400

$2.49

$

Usually ships in 2-4 days

0

15

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

16

Echo 20018008761

BLADE, SHREDDER

$9.49

$

In Stock, only 4 left!

0

17

Echo 20001006363

FAN

$15.99

$

In Stock, Qty 7

0

18

Echo 10013205660

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

19

Echo 20001105661

HUB, FAN

$15.99

$

Usually ships in 2-4 days

0

20

Echo 16340120660

IGNITION SWITCH ASSY
(Superseded to 16340120661)

$13.99

$

Usually ships in 2-4 days

0

21

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

22

Echo 17805420560

LEVER, THROTTLE - ORANGE

$10.99

$

Usually ships in 2-4 days

0

23

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 20010820661

FAN COVER ASSY - RIGHT
(Superseded to 20010820662)

Note: Includes ITEM 25

$39.99

$

Usually ships in 2-4 days

0

25

Echo 22012020660

CUSHION
(Superseded to 22012020661)

$7.99

$

Usually ships in 2-4 days

0

26

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

27

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 13

0

28

Echo 35133520560

CUSHION

$6.49

$

In Stock, only 1 left!

0

29

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

30

Echo 89016008761

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

31

Echo 89022808760

LABEL - CAUTION -- SPANISH
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

32

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

33

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

34

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

35

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 15

0

36

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

37

Echo V471001210

PIPE - 3X5X90 -- BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

38

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

39

Echo 13201103360

CONNECTOR, PIPE

$2.99

$

In Stock, Qty 20+

0

40

Echo 13201212360

PIPE, FUEL - CORRUGATED
(Superseded to 13201212361)

$3.99

$

In Stock, Qty 20+

0

41

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

42

Echo A350000640

FUEL TANK ASSY
(Superseded to A350002540)

$24.99

$

In Stock, only 2 left!

0

43

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

44

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

45

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

46

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 47

$4.49

$

In Stock, only 1 left!

0

47

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

48

Echo 17801020560

TRIGGER, THROTTLE - ORANGE

$7.49

$

In Stock, Qty 5

0

49

Echo 17801120561

ROD, THROTTLE

$6.49

$

In Stock, Qty 20+

0

50

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

51

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

52

Echo 10401220560

COVER, ENGINE
(Superseded to 10401220561)

$25.99

$

Usually ships in 2-4 days

0
