ES-2400 - Echo Shred N Vac Blower (Type 1E) Carburetor -- C1U-K44A S/N: 001001-519978, Canada - 001001-029298 Parts Diagram

Shred N Vac Blower (Type 1E)

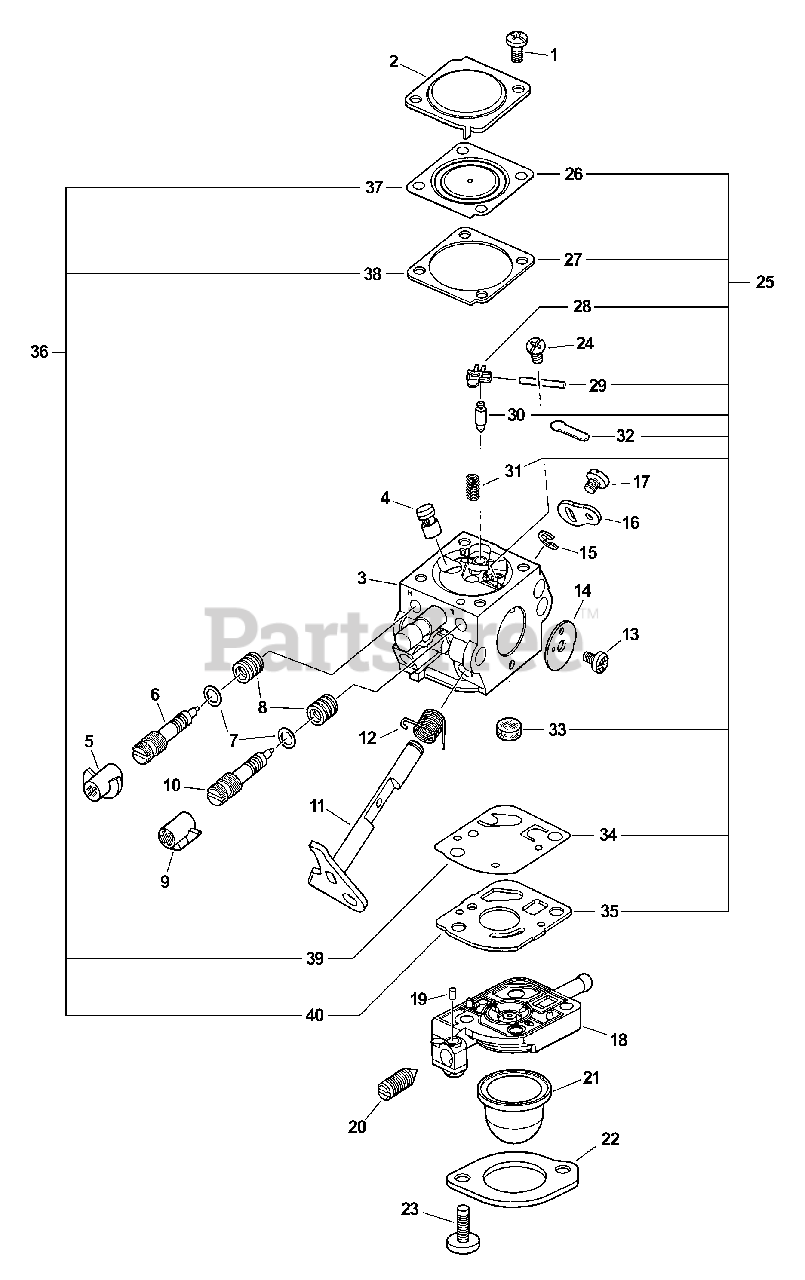

Carburetor -- C1U-K44A S/N: 001001-519978, Canada - 001001-029298 Parts Diagram

  • Title

Echo 12520009560

CARBURETOR C1U-K44A
(Superseded to 12520009561)

$75.99

$

In Stock, only 1 left!

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534207360

COVER, METERING

$4.99

$

Usually ships in 2-4 days

0

3

------------------

BODY, CARBURETOR

$

$

Not available

4

Echo 12537607360

NOZZLE, CHECK VALVE

$4.49

$

Usually ships in 2-4 days

0

5

Echo 12532908560

CAP, LIMITER

Note: ES-2400 TYPE 1E ONLY

$1.99

$

In Stock, only 4 left!

0

6

Echo 12532020560

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

7

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

8

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

9

Echo 12532909860

CAP, LIMITER

Note: ES-2400 TYPE 1E ONLY

$1.99

$

In Stock, Qty 13

0

10

Echo 12531809560

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

11

Echo 12531706860

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

12

Echo 12531308560

SPRING, TRIGGER

$1.49

$

Usually ships in 2-4 days

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531620560

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 12531713930

SHAFT, THROTTLE
(Superseded to 12531713931)

$

$

Not available

16

Echo 12535020560

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

18

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

19

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

20

Echo 12533406860

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

21

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

22

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

23

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

24

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

25

Echo 12530020560

REPAIR KIT

Note: INCLUDES ITEMS 26-35

$15.99

$

In Stock, only 2 left!

0

26

------------------

DIAPHRAGM, METERING

$

$

Not available

27

------------------

GASKET, METERING

$

$

Not available

28

------------------

LEVER, METERING

$

$

Not available

29

------------------

PIN, METERING LEVER

$

$

Not available

30

------------------

VALVE, INLET NEEDLE

$

$

Not available

31

------------------

SPRING, METERING LEVER

$

$

Not available

32

------------------

PLUG, WELCH

$

$

Not available

33

------------------

STRAINER

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

Echo 12530320560

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 37-40

$8.99

$

In Stock, only 4 left!

0

37

------------------

DIAPHRAGM, METERING

$

$

Not available

38

------------------

GASKET, METERING

$

$

Not available

39

------------------

DIAPHRAGM, PUMP

$

$

Not available

40

------------------

GASKET, PUMP

$

$

Not available
