ES-231 - Echo Shred N Vac Blower (SN: 06001001 - 06999999) Starter, Rear Handle, Fuel System Parts Diagram

Shred N Vac Blower

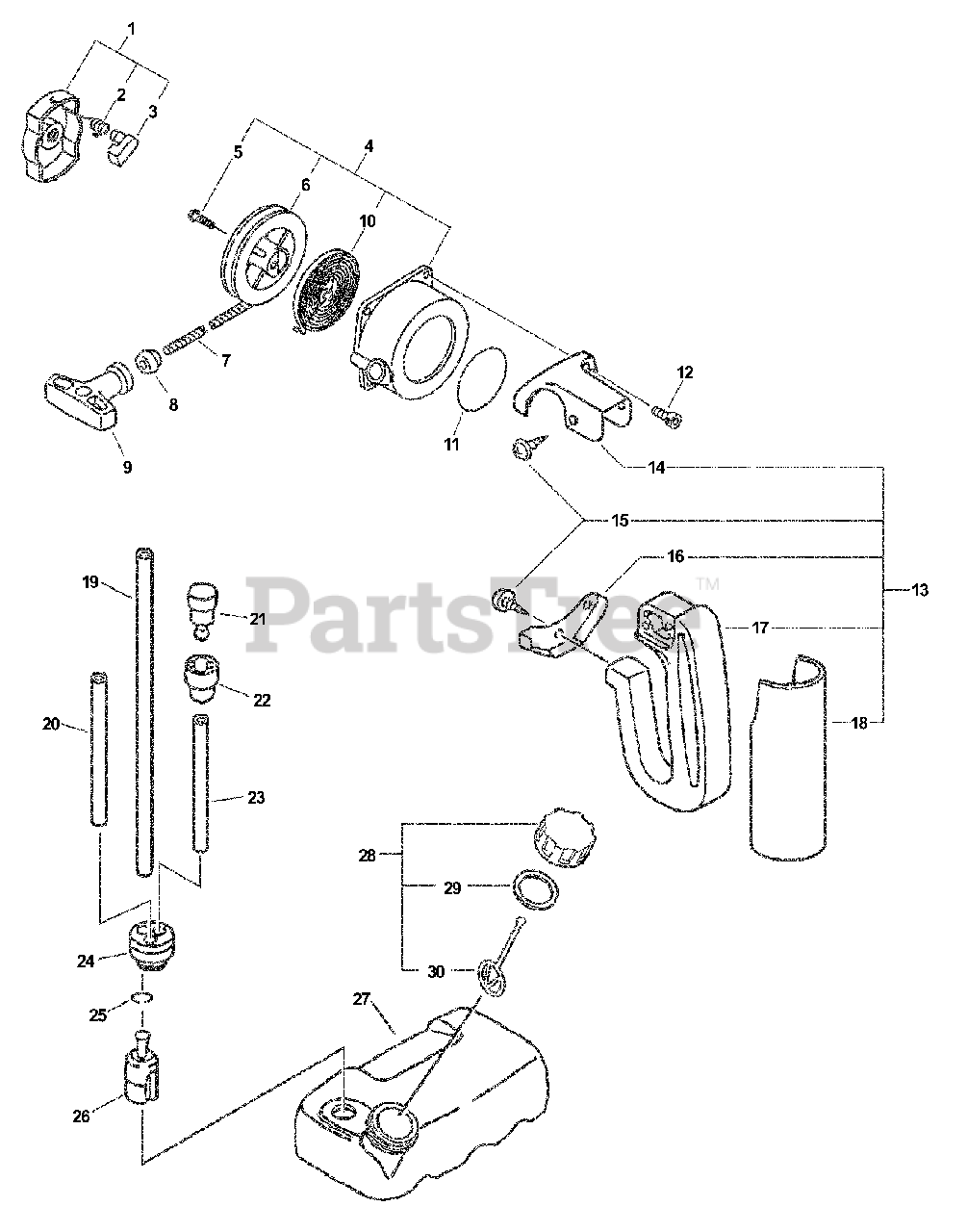

Starter, Rear Handle, Fuel System Parts Diagram

  • Title

1

Echo 17720244331

STARTER PAWL ASSY
(Superseded to 17720212220)

Note: INCLUDES ITEMS 2-3

$16.99

$

In Stock, Qty 18

0

2

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

4

Echo 17720009560

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$40.99

$

In Stock, Qty 5

0

5

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

6

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17722605310

ROPE, STARTER - 3.5X960

Note: RePower BULK OPTION: 99944445000

$5.49

$

In Stock, only 1 left!

0

8

Echo 17722709560

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

9

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

10

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

11

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

12

Echo 90016304018

SCREW - 4X18

$1.49

$

In Stock, Qty 20+

0

13

Echo P021001200

SIDE HANDLE ASSY

Note: Includes ITEMS 14-18

$25.99

$

Usually ships in 2-4 days

0

14

Echo C405000010

BRACKET, HANDLE - UPPER

$5.99

$

Usually ships in 2-4 days

0

15

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

16

Echo C405000000

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

17

Echo 35101005060

HANDLE - REAR

$

$

Not available

18

Echo 35121354330

GRIP, HANDLE

$

$

Not available

19

Echo 43721015130

PIPE - 3X6X200 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

Usually ships in 2-4 days

0

20

Echo 13201014010

PIPE - 3X6X100 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 11

0

21

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

22

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

23

Echo 43721720760

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720761)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, only 1 left!

0

24

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 19

0

25

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

26

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

27

Echo A350000023

TANK, FUEL
(Superseded to A350000650)

$21.99

$

Usually ships in 2-4 days

0

28

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 29-30

$6.49

$

In Stock, only 2 left!

0

29

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

30

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0
