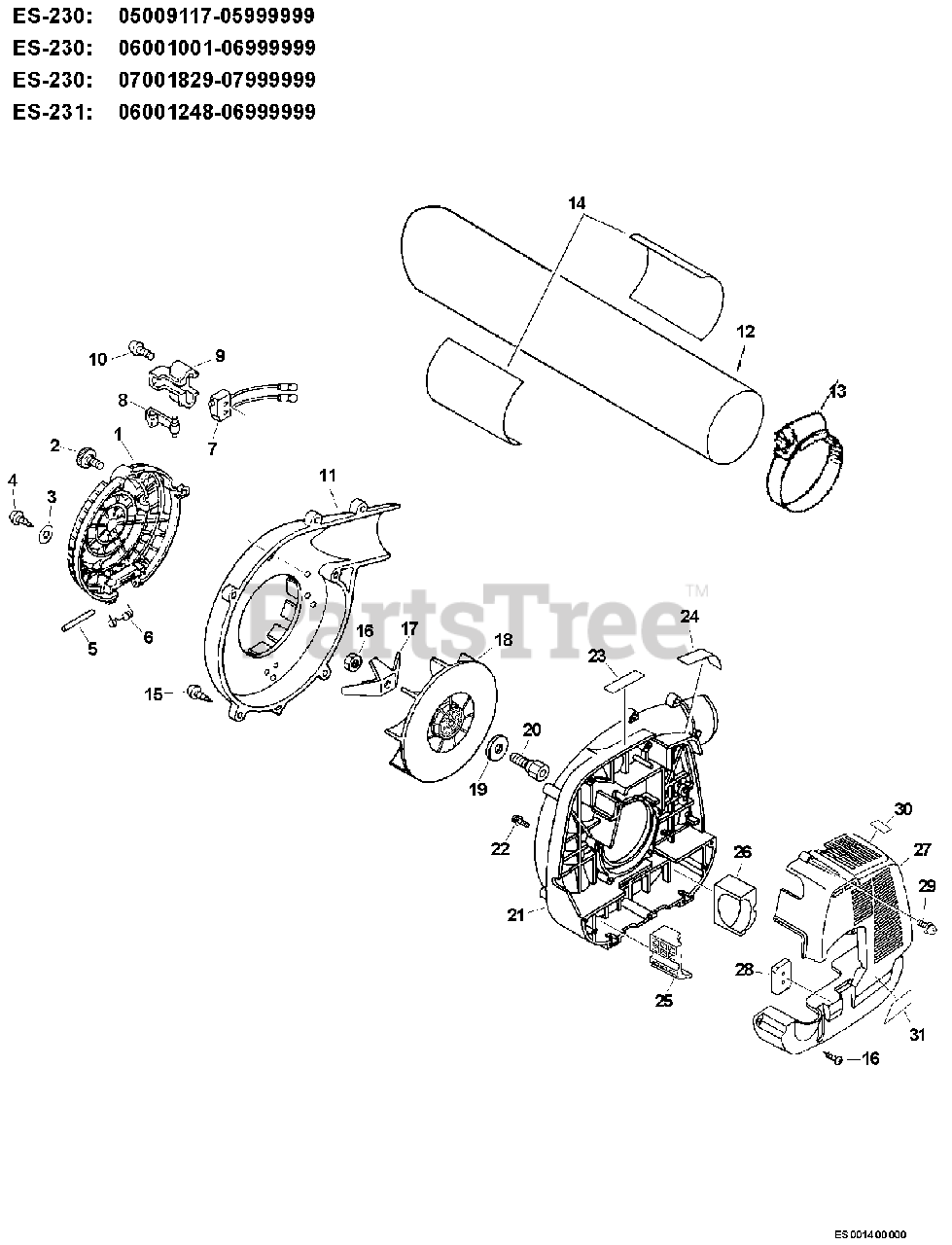

ES-231 - Echo Shred N Vac Blower (SN: 06001001 - 06999999) Fan Case, Suction Tube Without Sleeve S/N: 06001248 - 06999999 Parts Diagram

Shred N Vac Blower

Fan Case, Suction Tube Without Sleeve S/N: 06001248 - 06999999 Parts Diagram

  • Title
1

Echo 20012420661

GUARD, DEBRIS

$20.99

$

In Stock, only 3 left!

0

2

Echo 13040620660

THUMBSCREW
(Superseded to V299000290)

$2.49

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

$2.99

$

In Stock, only 1 left!

0

6

$3.49

$

In Stock, only 3 left!

0

7

Echo 16340020660

IGNITION SWITCH ASSY

$10.99

$

Usually ships in 2-4 days

0

8

Echo 16333520660

LEVER, SHUT OFF ACTUATOR

$3.99

$

Usually ships in 2-4 days

0

9

Echo 16381020660

BRACKET, SWITCH - GRAY

$9.99

$

In Stock, only 1 left!

0

10

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 7

0

11

Echo E103000290

COVER, FAN - LEFT

$34.99

$

Usually ships in 2-4 days

0

12

Echo E180000000

TUBE, VACUUM
(Superseded to E180000020)

$

$

Not available

13

$7.49

$

Usually ships in 2-4 days

0

14

Echo 89013508760

LABEL - SHRED 'N' VAC

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

16

$0.99

$

In Stock, Qty 20+

0

17

Echo 20018008761

BLADE, SHREDDER

$9.49

$

In Stock, only 4 left!

0

$15.99

$

Usually ships in 2-4 days

0

19

Echo 10013205660

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

20

Echo E101000000

HUB, FAN

$14.99

$

Usually ships in 2-4 days

0

21

Echo E103000081

COVER, FAN - RIGHT
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

23

Echo X508000130

LABEL - NOISE 70dB(A) CAT II

$3.99

$

Usually ships in 2-4 days

0

24

Echo 89016009461

LABEL - CAUTION

$1.99

$

In Stock, Qty 19

0

25

Echo V420000270

CUSHION, FUEL TANK - LEFT
(Superseded to Discontinued)

$

$

Not available

26

Echo V420000280

CUSHION, FUEL TANK - RIGHT

$10.99

$

In Stock, only 1 left!

0

27

Echo A190000011

COVER, ENGINE

$23.99

$

Usually ships in 2-4 days

0

28

Echo V420000390

CUSHION, FUEL TANK - FRONT
(Superseded to Discontinued)

$

$

Not available

29

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

30

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0

31

Echo X503001240

LABEL - MODEL ES-231

$2.49

$

Usually ships in 2-4 days

0

31

Echo X503003020

LABEL - MODEL ES-230

$3.99

$

Usually ships in 2-4 days

0
