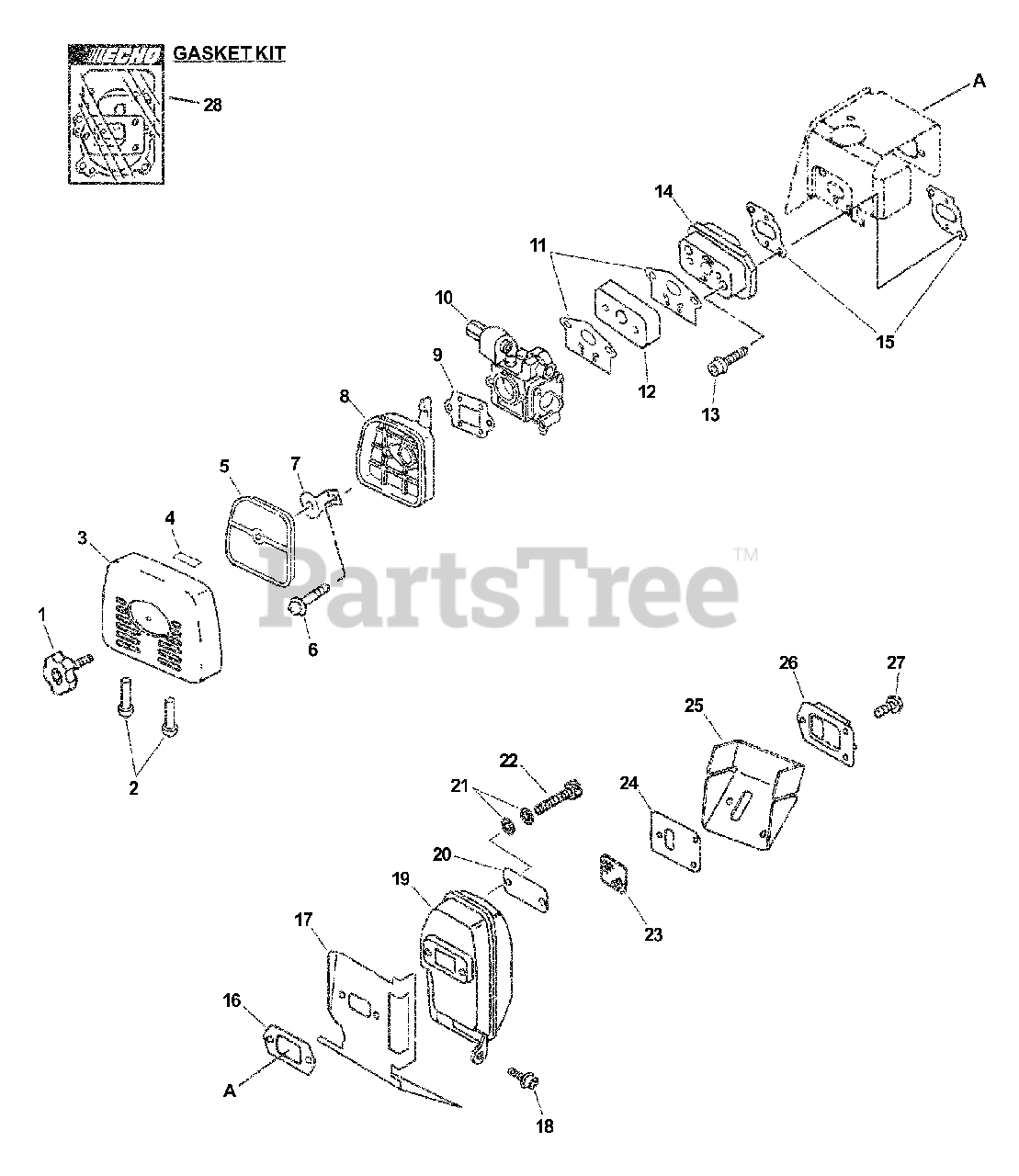

ES-231 - Echo Shred N Vac Blower (SN: 02001001 - 02999999) Intake, Exhaust Parts Diagram

Shred N Vac Blower

Intake, Exhaust Parts Diagram

  • Title
1

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

$0.99

$

Usually ships in 2-4 days

0

3

Echo A232000041

COVER, AIR FILTER
(Superseded to A232000042)

$9.49

$

In Stock, Qty 10

0

4

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

6

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

7

Echo 12901157731

PLATE, PREVENT

$5.49

$

In Stock, Qty 15

0

8

Echo 13030757730

CASE, AIR FILTER

$12.99

$

In Stock, Qty 19

0

9

$3.99

$

In Stock, only 1 left!

0

10

Echo A021000142

CARBURETOR RB-K61A
(Superseded to Discontinued)

Note: SUPERSEDES: A021000141 CARBURETOR -- RB-K61A; A021000140 CARBURETOR -- RB-K61

$

$

Not available

11

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

12

Echo A200000030

INSULATOR, INTAKE

$7.99

$

Usually ships in 2-4 days

0

13

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001756431

INSULATOR, INTAKE

$12.99

$

In Stock, only 1 left!

0

15

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

16

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

17

Echo V104000041

SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0

18

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

19

Echo A300000110

MUFFLER

$90.99

$

Usually ships in 2-4 days

0

20

$1.49

$

In Stock, Qty 9

0

21

Echo V347000000

WASHER - CONICAL

$0.99

$

In Stock, Qty 12

0

22

Echo 9110005065

BOLT - 5X65

$0.99

$

In Stock, Qty 20+

0

23

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

24

Echo V104000031

GASKET, EXHAUST
(Superseded to V104000032)

$1.99

$

Usually ships in 2-4 days

0

25

Echo V104000050

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

26

Echo A313000070

GUIDE, EXHAUST

$12.99

$

Usually ships in 2-4 days

0

27

Echo 9136704012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

28

Echo P021001363

GASKET KIT

$37.99

$

Usually ships in 2-4 days

0
