ES-231 - Echo Shred N Vac Blower (SN: 02001001 - 02999999) Carburetor -- RB-K61A Parts Diagram

Shred N Vac Blower

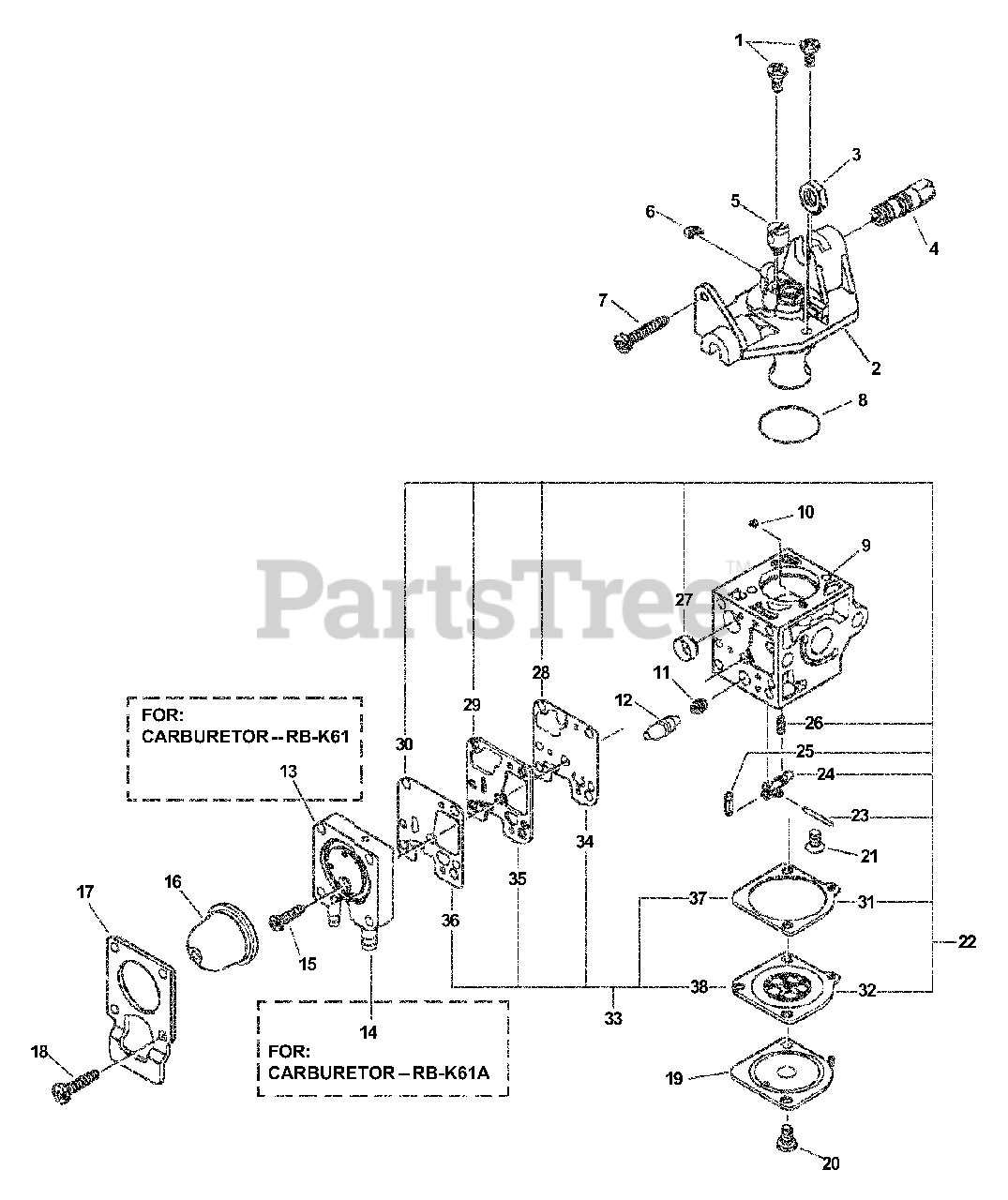

Carburetor -- RB-K61A Parts Diagram

  • Title

Echo A021000142

CARBURETOR RB-K61A
(Superseded to Discontinued)

Note: SUPERSEDES: A021000141 CARBURETOR -- RB-K61A; A021000140 CARBURETOR -- RB-K61

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo P005000360

ROTOR COVER ASSY

$32.99

$

Usually ships in 2-4 days

0

3

Echo P005000120

NUT

$3.99

$

Usually ships in 2-4 days

0

4

Echo P005000110

NUT, CABLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

5

Echo P005000180

SWIVEL

$3.99

$

Usually ships in 2-4 days

0

6

Echo P005000190

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

7

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

8

Echo P005000280

O-RING

$3.49

$

In Stock, only 4 left!

0

9

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

10

Echo P005000290

GUIDE, ROLLER

$1.99

$

Usually ships in 2-4 days

0

11

Echo P005000570

JET

$2.99

$

In Stock, only 1 left!

0

12

Echo P005000370

PLUG KIT

$

$

Not available

13

Echo P005000530

BASE, PURGE
(Superseded to P005000930)

$19.99

$

In Stock, Qty 20+

0

14

Echo P005000930

BASE, PURGE

$19.99

$

In Stock, Qty 20+

0

15

Echo P005000270

SCREW, PURGE BASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

17

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

18

Echo P005000260

SCREW, RETAINER
(Superseded to 12531061830)

$0.99

$

In Stock, Qty 20+

0

19

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

20

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

21

Echo P005000020

SCREW, METERING LEVER PIN
(Superseded to 12533942030)

$0.99

$

In Stock, Qty 12

0

22

Echo P005000560

REPAIR KIT
(Superseded to P005002880)

Note: INCLUDES ITEMS 23-32

$15.99

$

In Stock, only 1 left!

0

23

------------------

PIN, METERING LEVER

$

$

Not available

24

------------------

LEVER, METERING

$

$

Not available

25

------------------

VALVE, INLET NEEDLE

$

$

Not available

26

------------------

SPRING, METERING LEVER

$

$

Not available

27

------------------

STRAINER

$

$

Not available

28

------------------

DIAPHRAGM, PUMP

$

$

Not available

29

------------------

GASKET, PUMP

$

$

Not available

30

------------------

SURGE, DIAPHRAGM

$

$

Not available

31

------------------

GASKET, METERING

$

$

Not available

32

------------------

DIAPHRAGM, METERING

$

$

Not available

33

Echo P005000550

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 34-38

$7.99

$

In Stock, Qty 20+

0

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

------------------

SURGE, DIAPHRAGM

$

$

Not available

37

------------------

GASKET, METERING

$

$

Not available

38

------------------

DIAPHRAGM, METERING

$

$

Not available
