ES-230 - Echo Shred N Vac Blower (SN: 06001001 - 06999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Shred N Vac Blower

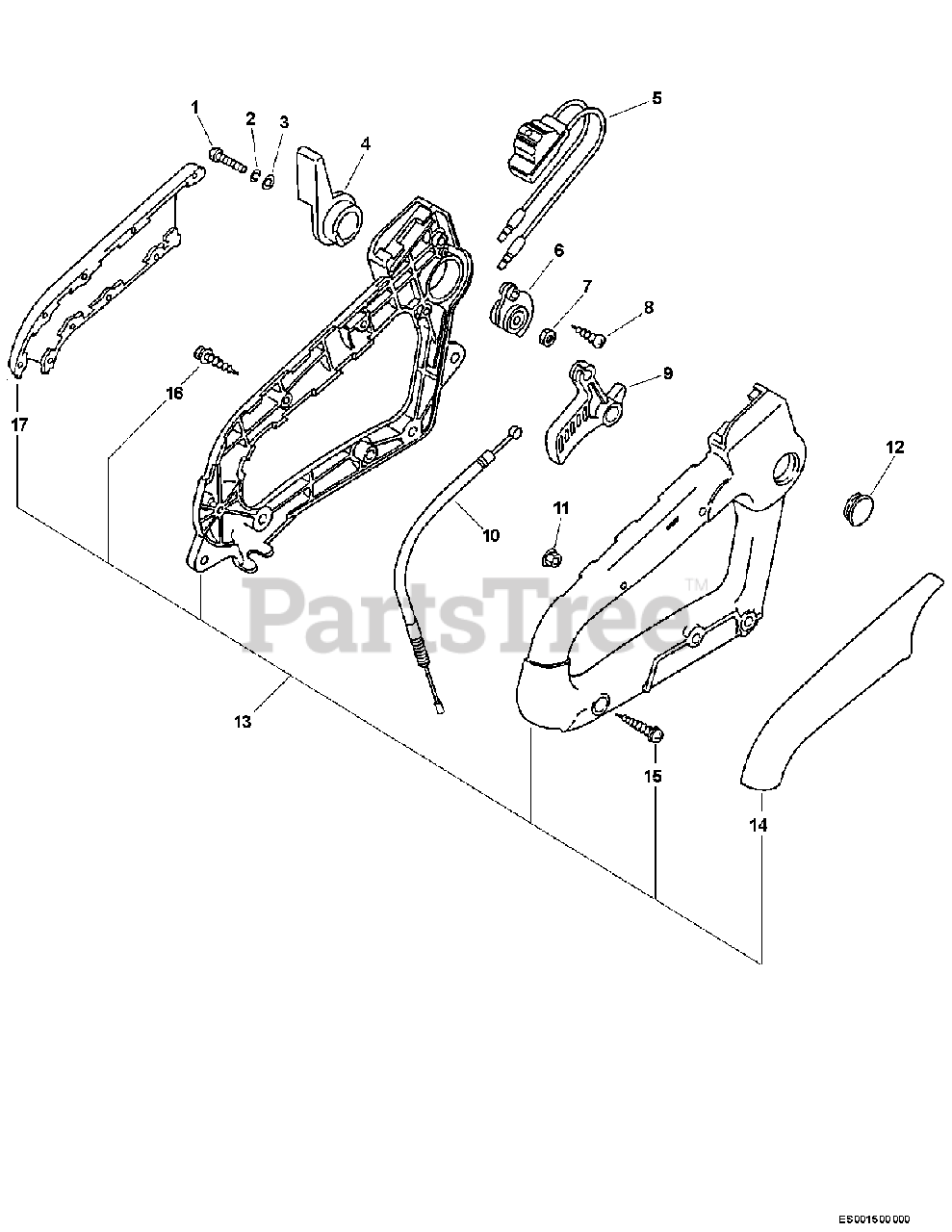

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 90023506020

SCREW - 6X20

$0.99

$

In Stock, Qty 15

0

2

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

3

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 17805407560

CONTROL, THROTTLE

$12.99

$

In Stock, Qty 10

0

5

Echo A440000141

IGNITION SWITCH ASSY

$11.99

$

Usually ships in 2-4 days

0

6

Echo 17812307561

BRACKET, THROTTLE

$3.99

$

In Stock, only 1 left!

0

7

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 90024504010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

9

Echo 17801007561

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 6

0

10

Echo V430000130

CABLE, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

11

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

12

Echo 35114607560

PLUG

$3.49

$

In Stock, only 1 left!

0

13

Echo 35100009660

HANDLE SET - REAR
(Superseded to 35100009661)

Note: Includes ITEMS 14-17

$24.99

$

Usually ships in 2-4 days

0

14

Echo 35131109660

GRIP, HANDLE - RIGHT
(Superseded to 35131109661)

$8.99

$

Usually ships in 2-4 days

0

15

Echo 90025305030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

16

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 7

0

17

Echo 35131509660

GRIP, HANDLE - LEFT
(Superseded to 35131509661)

$8.99

$

Usually ships in 2-4 days

0
