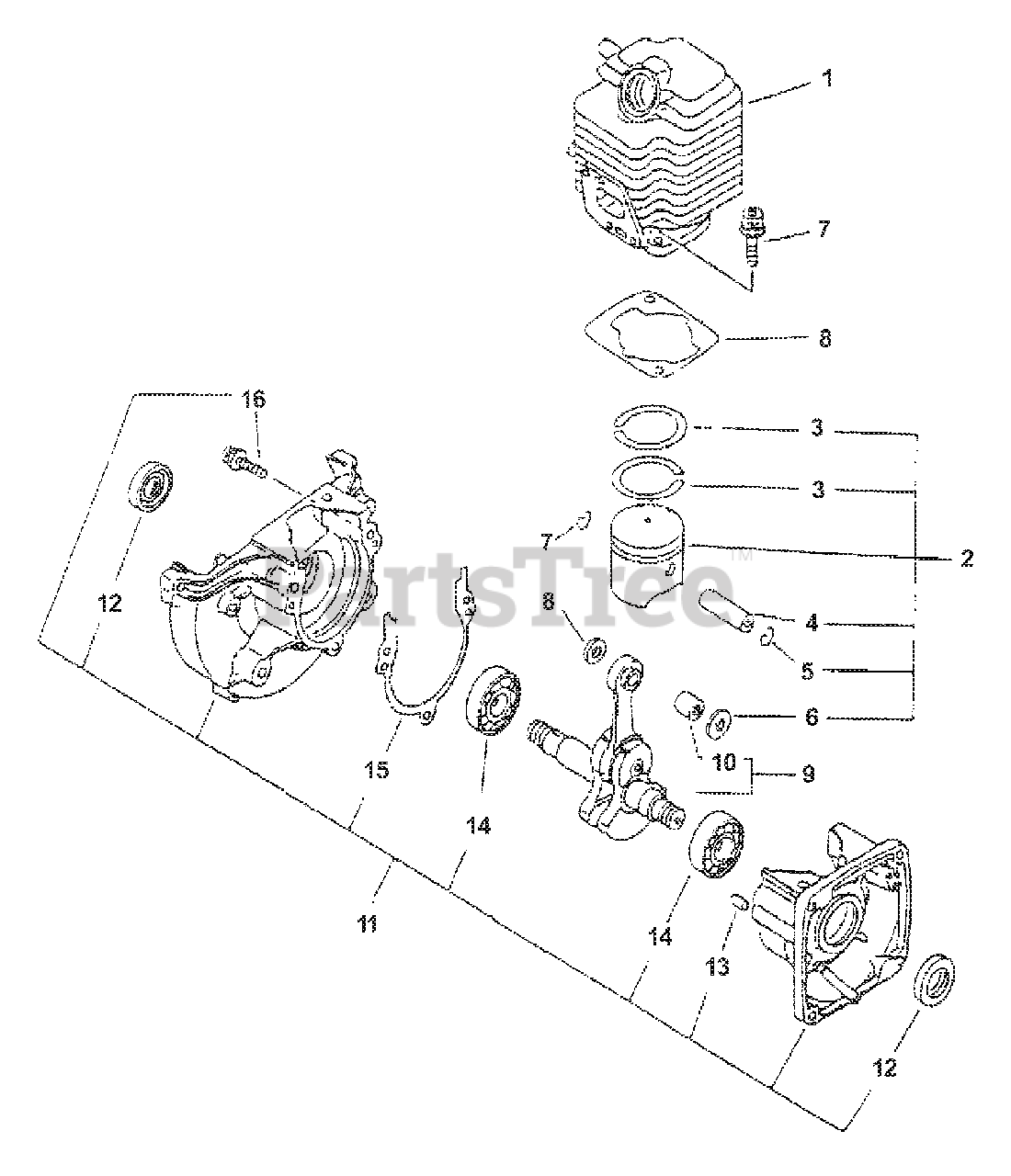

ES-2100 - Echo Shred N Vac Blower (Type 1) Engine, External, Internal, Crankcase, Fan Housing, Cover Parts Diagram

Shred N Vac Blower (Type 1)

Engine, External, Internal, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

$

$

Not available

1

Echo 10101106562

CYLINDER

Note: TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553

$109.99

$

Usually ships in 2-4 days

0

2

Echo 10000048732

PISTON KIT

Note: TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553; INCLUDES ITEMS 3-6

$77.99

$

In Stock, only 1 left!

0

3

Echo 10001105330

RING, PISTON

Note: TYPE 1/1E S/N 001001 - 536090,CANADA S/N 001001 - 023553

$8.49

$

In Stock, only 2 left!

0

1

Echo A130000020

CYLINDER
(Superseded to A130000021)

Note: TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP

$123.99

$

Usually ships in 2-4 days

0

2

Echo P021001100

PISTON KIT
(Superseded to P021001101)

Note: TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP; INCLUDES ITEMS 3-6

$77.99

$

In Stock, Qty 5

0

3

Echo A101000000

RING, PISTON

Note: TYPE 1E S/N 536091 & UP,CANADA S/N 023554 & UP

$8.49

$

In Stock, only 2 left!

0

4

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

6

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

7

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

8

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900020560

$3.99

$

In Stock, only 4 left!

0

9

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 10 (USE SB1026)

$

$

Not available

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

------------------

CRANKCASE KIT

Note: INCLUDES ITEMS 12-16 (USE SB1026)

$

$

Not available

12

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900020560

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

Echo 88900020560

GASKET KIT

Note: INCLUDES THE FOLLOWING

$22.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001009561

GASKET, INTAKE

$2.99

$

In Stock, only 1 left!

0

Echo 13001020560

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0
