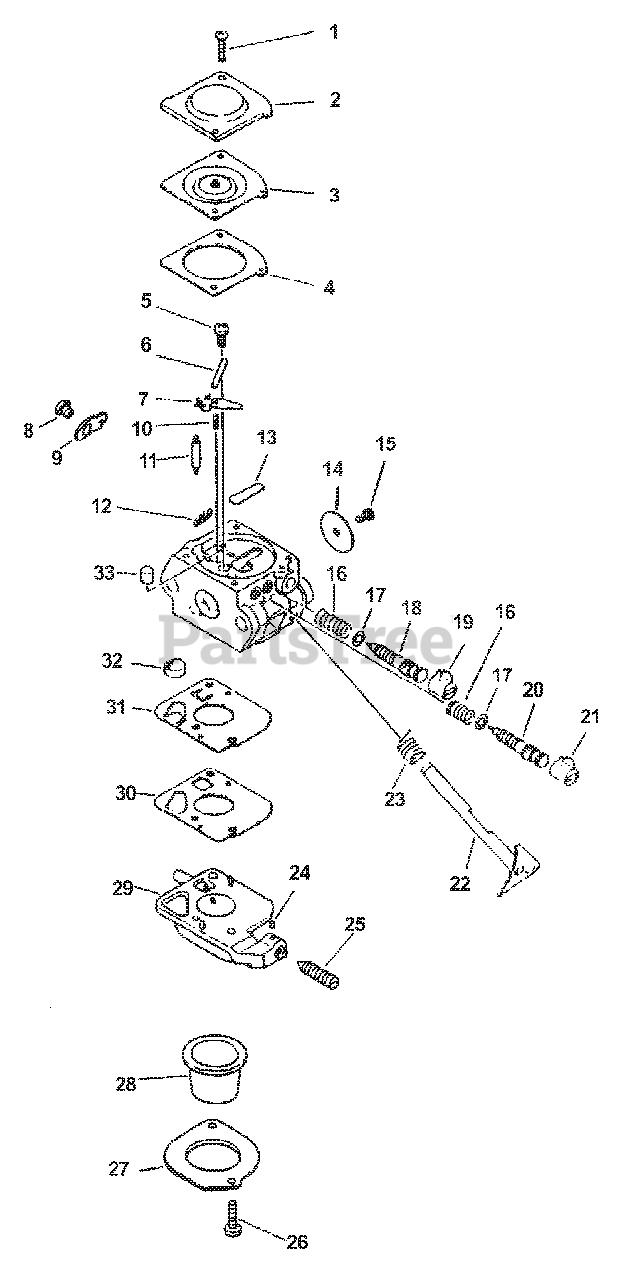

ES-2100 - Echo Shred N Vac Blower (Type 1) Carburetor Parts Diagram

Shred N Vac Blower (Type 1)

Carburetor Parts Diagram

  • Title

Echo 12520020660

CARBURETOR C1U-K43
(Superseded to 12520020661)

Note: INCLUDES THE FOLLOWING

$69.99

$

Usually ships in 2-4 days

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534207360

COVER, METERING

$4.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

4

------------------

GASKET, DIAPHRAGM

Note: USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

7

------------------

LEVER, METERING

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

8

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

9

Echo 12535020560

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

10

------------------

SPRING, METERING LEVER

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

11

------------------

VALVE, INLET NEEDLE

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

12

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

------------------

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

14

Echo 12531620560

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 12531451230

SCREW

$1.49

$

In Stock, only 1 left!

0

16

Echo 12331942030

SPRING

$

$

Currently unavailable

17

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

18

Echo 12531820560

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

19

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

20

Echo 12532020560

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

21

Echo 12532908560

CAP, LIMITER

$1.99

$

In Stock, only 4 left!

0

22

Echo 12531706860

SHAFT, THROTTLE

$6.49

$

In Stock, only 1 left!

0

23

Echo 12531308560

SPRING, TRIGGER

$1.49

$

Usually ships in 2-4 days

0

24

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533406860

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

26

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 11

0

27

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 6

0

28

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

29

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

30

------------------

GASKET, PUMP

Note: USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

31

------------------

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12530020560 & GASKET/DIAPHRAGM KIT P/N 12530320560

$

$

Not available

32

------------------

STRAINER

Note: USE REPAIR KIT P/N 12530020560

$

$

Not available

33

Echo 12537620660

NOZZLE, CHECK VALVE

$5.99

$

Usually ships in 2-4 days

0

Echo 12530020560

REPAIR KIT

$15.99

$

In Stock, only 2 left!

0

Echo 12530320560

DIAPHRAGM/GASKET KIT

$8.99

$

In Stock, only 4 left!

0
