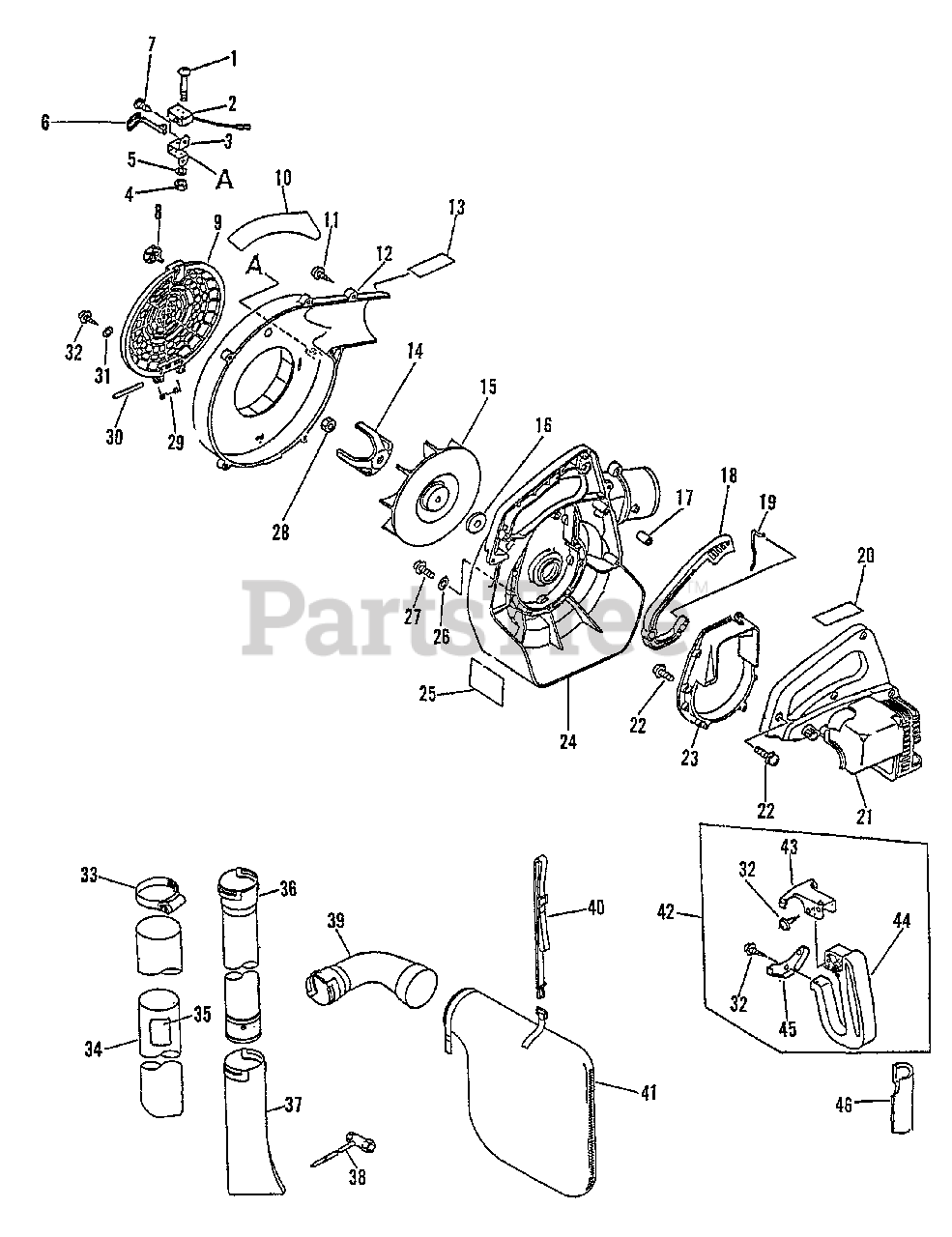

ES-2000 - Echo Shred N Vac Blower (SN: 001001 - 007941) Fan, Housing, Vac, Blwing Pipe, Debr Bag, Hdles, CVR, Sfty Swtch, Tool Parts Diagram

Shred N Vac Blower

Fan, Housing, Vac, Blwing Pipe, Debr Bag, Hdles, CVR, Sfty Swtch, Tool Parts Diagram

  • Title

1

Echo 16389408760

SCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 16340008761

IGNITION SWITCH ASSY

$10.99

$

Usually ships in 2-4 days

0

3

Echo 16381006360

BRACKET, SWITCH
(Superseded to 16381009260)

$7.49

$

Usually ships in 2-4 days

0

4

Echo 16389308760

NUT

$1.49

$

Usually ships in 2-4 days

0

5

Echo 16389208760

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 16333509260

ACTUATOR
(Superseded to 16380009460)

$

$

Not available

7

Echo 90025305010

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

8

Echo 13040605060

THUMBSCREW
(Superseded to 13040606360)

$2.49

$

In Stock, Qty 20+

0

9

Echo 20012405061

GUARD, DEBRIS

$20.99

$

Usually ships in 2-4 days

0

10

Echo 89016008761

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

11

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

12

Echo 20011108761

COVER, FAN - LEFT
(Superseded to Discontinued)

$

$

Not available

13

Echo 89011509460

LABEL - MODEL
(Superseded to 89011509461)

$5.99

$

Usually ships in 2-4 days

0

14

Echo 20018008761

BLADE, SHREDDER

$9.49

$

In Stock, only 4 left!

0

15

Echo 20001006362

FAN
(Superseded to 20001006363)

$15.99

$

In Stock, Qty 7

0

16

Echo 10013205660

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

17

Echo 16389508760

TUBE, RETAINER
(Superseded to Discontinued)

$

$

Not available

18

Echo 17801006360

TRIGGER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 17801105060

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

20

Echo 89019406360

LABEL - HOT SURFACE

$2.99

$

In Stock, only 1 left!

0

21

Echo 10400806360

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 10

0

23

Echo 10493005061

BRACKET, ENGINE

$31.99

$

Usually ships in 2-4 days

0

24

Echo 20011006361

COVER, FAN - RIGHT

$31.99

$

Usually ships in 2-4 days

0

25

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

26

Echo 10403205060

WASHER

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

28

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

29

Echo 20015205060

SPRING

$3.49

$

In Stock, only 3 left!

0

30

Echo 20015005060

PIN

$2.99

$

In Stock, only 1 left!

0

31

Echo 10403205060

WASHER

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

33

Echo 21041305060

CLAMP

$7.49

$

Usually ships in 2-4 days

0

34

Echo 21002706562

TUBE, VACUUM
(Superseded to P021009410)

$

$

Not available

35

Echo 89011809460

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

36

Echo 21001505060

TUBE, BLOWER - STRAIGHT

$12.99

$

In Stock, Qty 11

0

37

Echo 21003105060

NOZZLE - FAN HEAD

$11.99

$

In Stock, Qty 5

0

38

Echo 89541009460

T-WRENCH - 8X19mm
(Superseded to Discontinued)

$

$

Not available

39

Echo 21501205060

TUBE, DEBRIS

$11.99

$

In Stock, Qty 5

0

40

Echo 30100505060

SHOULDER STRAP ASSY

$

$

Not available

41

Echo 88081408760

BAG, DEBRIS

$

$

Currently unavailable

42

Echo 35100005060

HANDLE ASSY - REAR

Note: INCLUDES ITEMS 32, 43, 44 & 46

$12.99

$

Usually ships in 2-4 days

0

43

Echo 35101105060

BRACKET, HANDLE - UPPER

$8.49

$

Usually ships in 2-4 days

0

44

------------------

HANDLE

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

45

Echo 35102805060

BRACKET, HANDLE - LOWER

$2.99

$

In Stock, only 1 left!

0

46

Echo 35121354330

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0
