ES-1000 - Echo Shred N Vac Blower (SN: 025417 - 999999) Carburetor Parts Diagram

Shred N Vac Blower

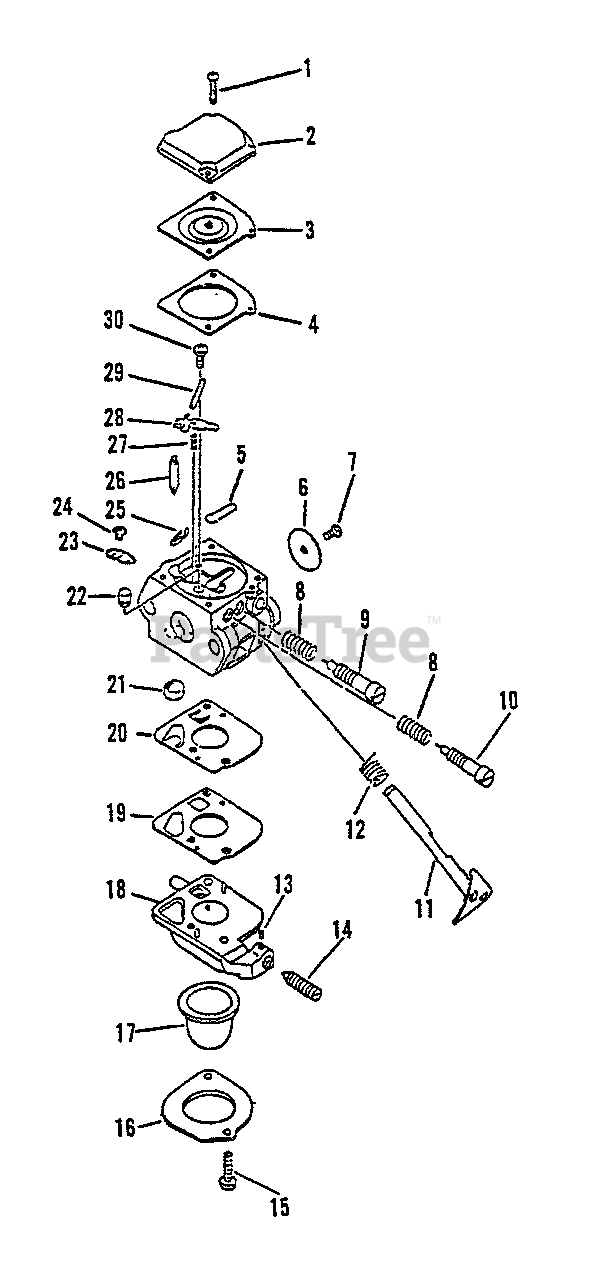

Carburetor Parts Diagram

  • Title

Echo 12520006861

CARBURETOR C1U-K26A
(Superseded to 12520006862)

Note: INCLUDES ITEMS 1 - 30

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN REPAIR KIT P/N 12530042030 & GASKET/DIAPHRAGM Kit P/N 12530342030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530042030 & GASKET/DIAPHRAGM Kit P/N 12530342030

$

$

Not available

5

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

6

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

7

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

9

Echo 12532007260

NEEDLE - MIXTURE

$3.99

$

Usually ships in 2-4 days

0

10

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

11

Echo 12531705060

SHAFT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

12

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12533406860

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

15

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 11

0

16

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 6

0

17

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

18

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

19

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530042030 & GASKET/DIAPHRAGM Kit P/N 12530342030

$

$

Not available

20

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530042030 & GASKET/DIAPHRAGM Kit P/N 12530342030

$

$

Not available

21

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

22

Echo 12537606360

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12535005060

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

25

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

26

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

27

------------------

SPRING

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

28

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

29

------------------

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530042030

$

$

Not available

30

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530042030

REPAIR KIT

$17.99

$

In Stock, Qty 20+

0

Echo 12530342030

DIAPHRAGM/GASKET KIT

$13.99

$

In Stock, only 1 left!

0
