ES-1000 - Echo Shred N Vac Blower (SN: 001001 - 025416) Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

Shred N Vac Blower

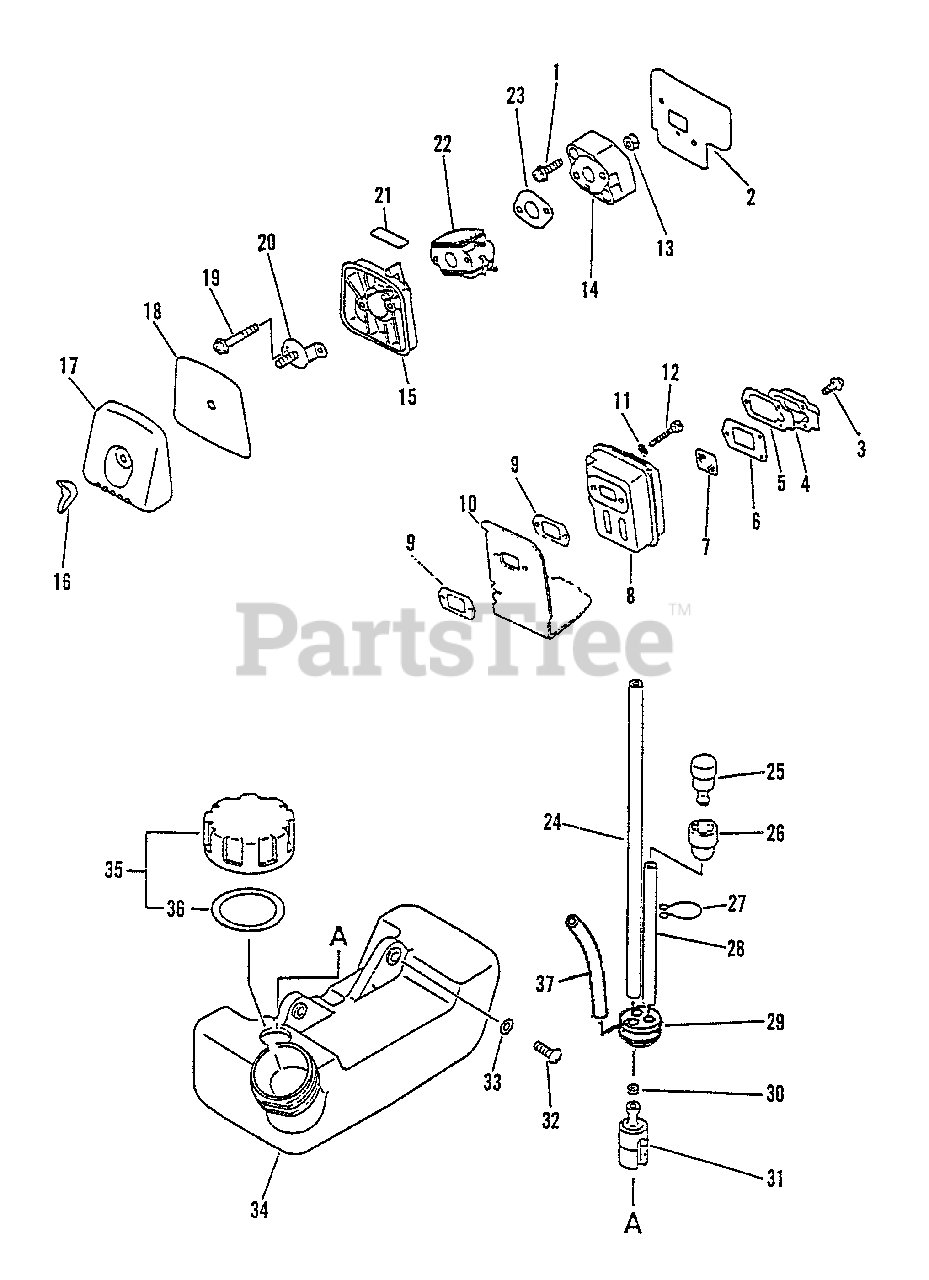

Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 12

0

2

Echo 13001005062

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

3

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 13

0

4

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

5

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

6

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

7

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

8

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

9

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

10

Echo 14587105760

SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0

11

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$6.49

$

Usually ships in 2-4 days

0

15

Echo 13030705361

AIR FILTER CASE KIT - BLACK
(Superseded to Discontinued)

$

$

Not available

16

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

17

Echo 13031305060

COVER, AIR FILTER - BLACK

$6.49

$

Usually ships in 2-4 days

0

18

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

19

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

20

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 9

0

21

Echo 89012115730

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

22

Echo 12520006860

CARBURETOR C1U-K26
(Superseded to 12520006861)

$

$

Not available

23

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

24

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

25

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

26

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

27

Echo 13201305060

CLIP

$

$

Not available

28

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

29

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

30

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

31

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

32

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

33

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 13100505760

TANK, FUEL
(Superseded to 13100505761)

$

$

Not available

35

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: INCLUDES ITEMS 36

$4.49

$

In Stock, only 1 left!

0

36

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

37

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0
