ERZT 20441 BVE2 (7800158) - Snapper 44" Zero-Turn Mower, 20hp CONTROL GROUP, LH, ERZT (Series 1) Parts Diagram

44" Zero-Turn Mower, 20hp

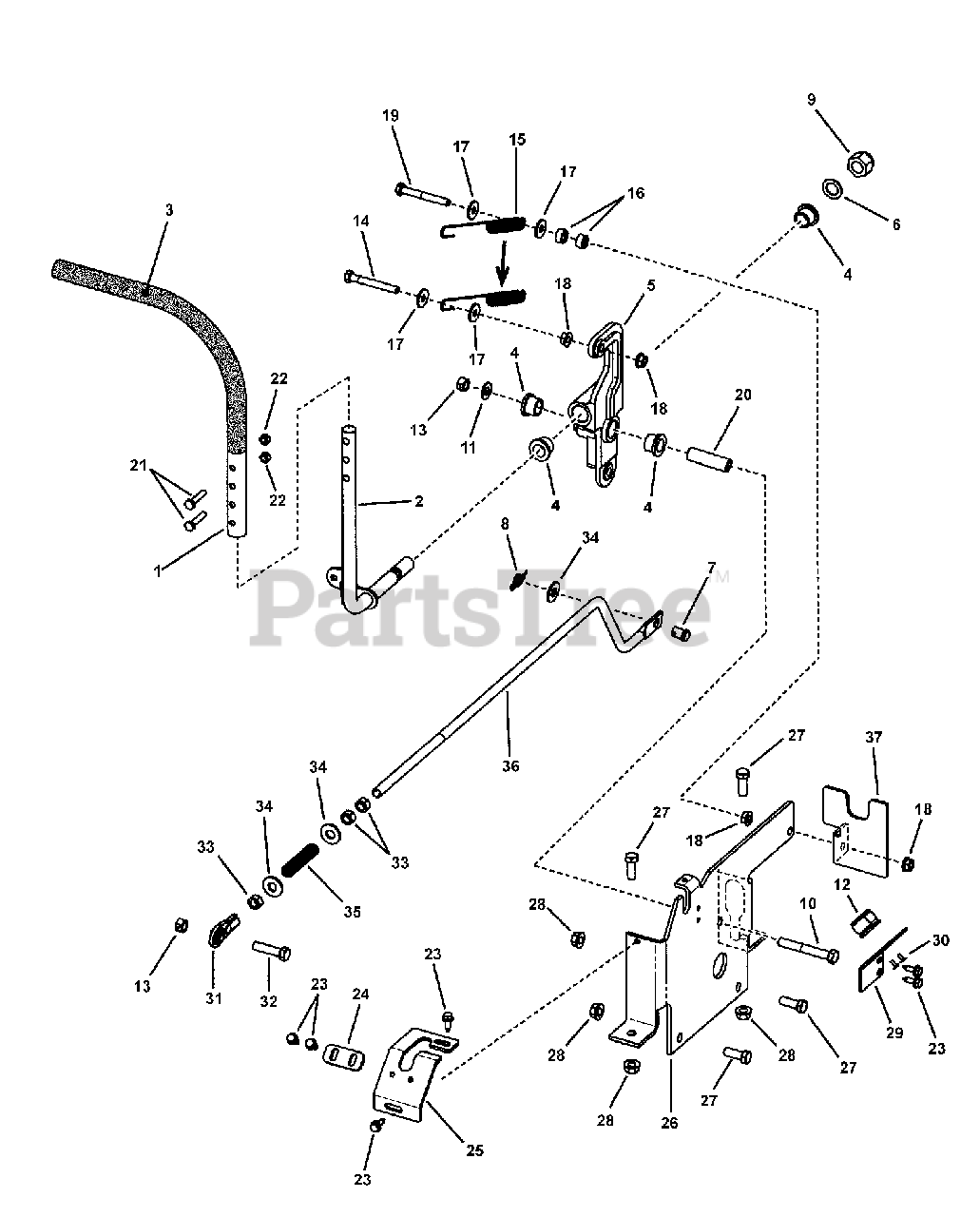

CONTROL GROUP, LH, ERZT (Series 1) Parts Diagram

  • Title

1

Snapper 7043338

HANDLE
(Superseded to 7043338AYP)

$45.99

$

Usually ships in 2-12 days

0

2

Snapper 7043336

WELDMENT, LH Control Arm (5/8" dia. Rod)
(Superseded to 7043336SM)

$77.99

$

Usually ships in 2-12 days

0

3

Snapper 7100051

FOAM GRIP, Handle
(Superseded to 7100051YP)

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 7013874

BUSHING, Bronze, 5/8 x 5/8"

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7100715

CONTROL ARM, LH, Die Cast
(Superseded to 7100715YP)

$28.99

$

Usually ships in 2-12 days

0

6

Snapper 7900016

WASHER, 5/8 ID x 1.00 OD x .065 Nylon
(Superseded to 7900016SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7900000

CLEVIS PIN, 7/16 x 1"
(Superseded to 7900000SM)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7091594

COTTER PIN, 1/2 Self Locking, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

9

Snapper 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

10

Snapper 7091557

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, GR 5
(Superseded to 703133)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7100487

CLIP, Spring
(Superseded to 7100487SM)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

14

Snapper 7100823

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, GR 5

$

$

Currently unavailable

15

Snapper 7100695

SPRING, Extension, RTN, ERZT
(Superseded to 7100695SM)

$32.99

$

Usually ships in 2-12 days

0

16

Snapper 7028620

SPACER, .34 x .63 x .31
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7091130

WASHER, .33 x .88 x .09 Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7100860

SCREW, 5/16-18 x 2-1/2" Hex Head Cap, GR 5

$

$

Currently unavailable

20

Snapper 7100714

SPACER, Motor
(Superseded to 7100714YP)

$16.99

$

Usually ships in 2-12 days

0

21

Snapper 7900029

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7900029SM)

$2.99

$

In Stock, only 2 left!

0

22

Snapper 7092126

NUT 1/4-20 Hex Center Lock, GR 5 YZ
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

24

Snapper 7300009

PLATE, Fwd/Rev Adjust
(Superseded to 7300009BMYP)

$8.49

$

Usually ships in 2-12 days

0

25

Snapper 7300010

TRACK, Control Stick, L.H.
(Superseded to 7300010SM)

$22.99

$

Usually ships in 2-12 days

0

26

Snapper 7043302

CONTROL BRACKET, LH
(Superseded to 7043302SM)

$46.99

$

Usually ships in 2-12 days

0

27

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

28

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7300264

BRACKET, Rod Holder, RZT
(Superseded to 7300264SM)

$14.99

$

Usually ships in 2-12 days

0

30

Snapper 7091095

POP RIVET, 1/8 x 3/8"
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

Snapper 7500059

ASSEMBLY, Fwd/Rev Rod

Note: Includes items: 7, 8, 31, 33(2), 34(2), 35 & 36.

$

$

Not available

31

Snapper 7100743

ROD END
(Superseded to 7100743YP)

$10.99

$

In Stock, only 2 left!

0

32

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

33

Snapper 7091630

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 7074511

SPRING, Compression (Brake)
(Superseded to 7074511SM)

$10.99

$

Usually ships in 2-12 days

0

36

Snapper 7200009

ROD, Link Fwd./Rev. (3/8-24 thread)
(Superseded to 7200009SM)

$17.99

$

Usually ships in 2-12 days

0

37

Snapper 7300489

BRACKET, LH Fender Support
(Superseded to 7300489SM)

$16.99

$

Usually ships in 2-12 days
