ERZT 185440 BVE (7800072) - Snapper 44" Zero-Turn Mower, 18.5hp PARK BRAKE GROUP Parts Diagram

44" Zero-Turn Mower, 18.5hp

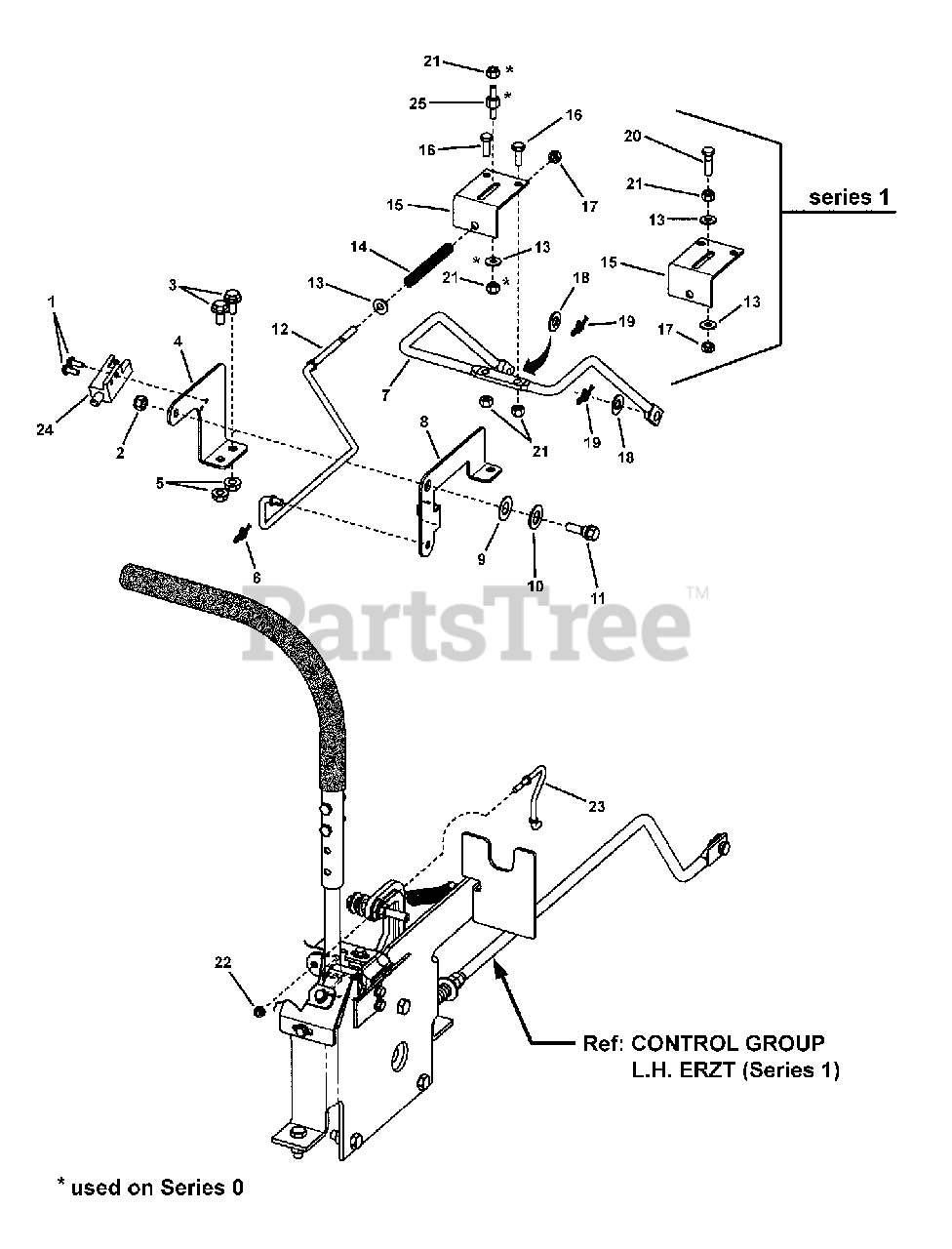

PARK BRAKE GROUP Parts Diagram

  • Title

1

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

2

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7043312

BRACKET, Park Brake, LH Lower
(Superseded to 7043312SM)

$19.99

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7091593

COTTER PIN, 3/8" Self-Locking
(Superseded to 703355)

Note: was 7024159

$3.99

$

In Stock, Qty 14

0

7

Snapper 7200007

ROD, Park Brake
(Superseded to 7200007SM)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7043311

BRACKET, Park Brake, RH Lower
(Superseded to 7043311SM)

$153.99

$

Usually ships in 2-12 days

0

9

Snapper 7091192

WASHER, 1/2 x .090 Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7025074

WASHER, .531 x 1.0 x .063 Flat
(Superseded to 7025074SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7011078

SHOULDER BOLT, 5/16-18 x 1"
(Superseded to 703840)

Note: .220 long shoulder

$5.49

$

In Stock, only 2 left!

0

12

Snapper 7043335

ROD, Park Brake (1/4-20 thread)
(Superseded to 7043335SM)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7100100

SPRING, Compression
(Superseded to 7100100SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7300007

BRACKET, Park Brake
(Superseded to 7300007SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

17

Snapper 7091705

NUT, 1/4-20 Hex Top Lock, GR B
(Superseded to 704319)

Note: or 7092126, 1/4-20 Hex Center Lock Nut, Grade 5

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091594

COTTER PIN, 1/2 Self Locking, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 3 left!

0

20

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

21

Snapper 7091603

NUT, 1/4-20 Hex Nyloc YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091290

NUT, 10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

23

Snapper 7043310

HOOK, Park Brake
(Superseded to 7043310SM)

$51.99

$

Usually ships in 2-12 days

0

24

Snapper 7023355

SWITCH- DPDT
(Superseded to 7023355YP)

Note: also shown in Electrical Group

$17.99

$

In Stock, Qty 20+

0

25

Snapper 7900005

ROD, Hanger (1/4-20 both ends)
(Superseded to 7900005SM)

Note: used on series 0

$10.99

$

Usually ships in 2-12 days

0
