ERPX 1838RDF (2691114-01) - Snapper 96cm Lawn Tractor, 18hp Seat Deck & Fuel Tank Group Parts Diagram

96cm Lawn Tractor, 18hp

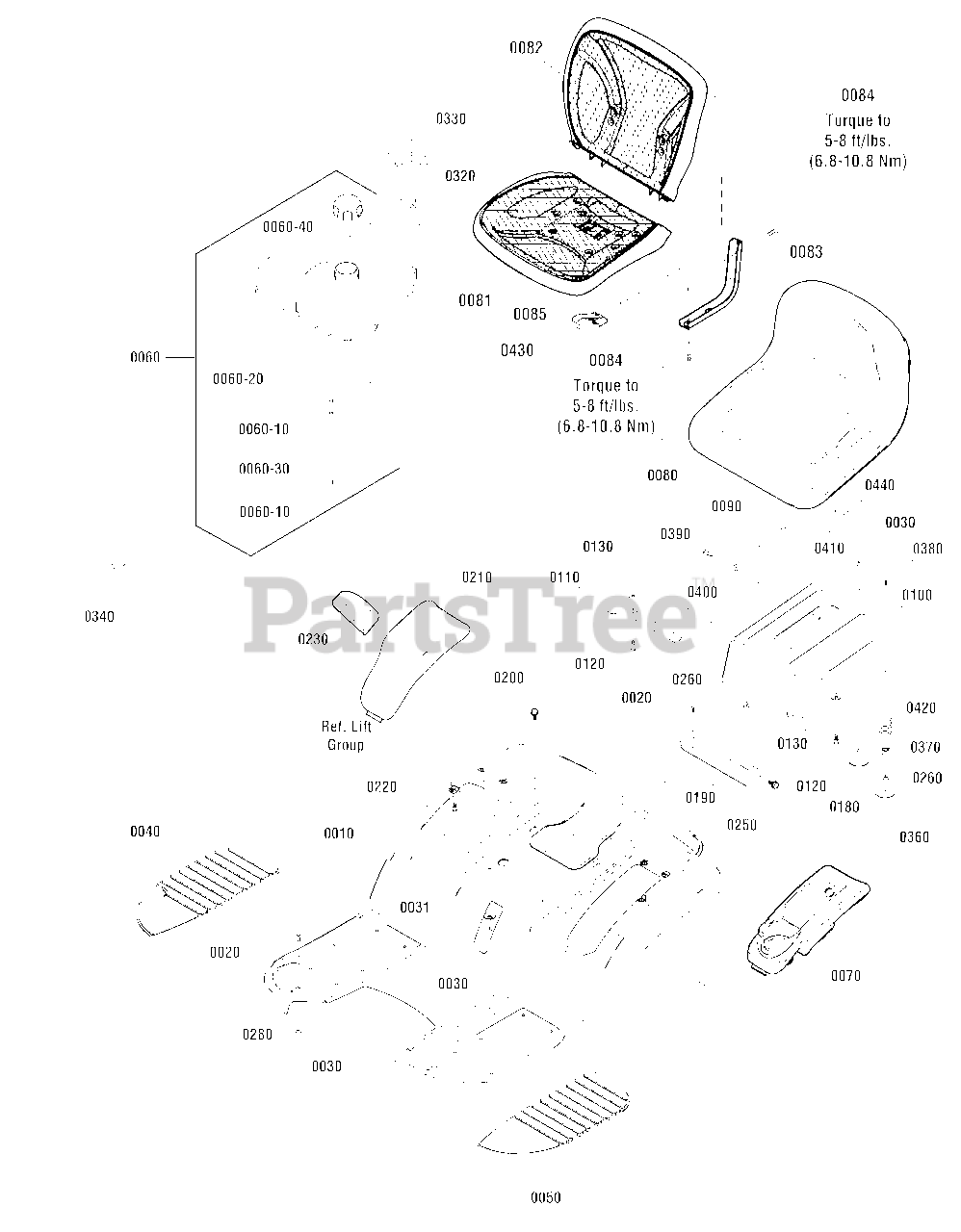

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 885687DYP

SEAT DECK, Red

$305.99

$

Usually ships in 2-12 days

0

0020

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0030

Snapper 1931277SM

NUT, 5/16-18, G5
(Superseded to 703409)

Note: (Use on 22 & 26 Gross HP Models)

$5.49

$

In Stock, Qty 20+

0

0031

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0040

Snapper 1728007SM

PAD, Footrest, RH

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006SM

PAD, Footrest, LH

$21.99

$

In Stock, only 2 left!

0

0060

Snapper 885896YP

FUEL TANK ASSEMBLY

$100.99

$

Usually ships in 2-12 days

0

0060-10

Snapper 095197MA

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0060-20

FUEL TANK, 6L

$

$

Not available

0060-30

Snapper 1734981SM

HOSE, Fuel, 15.0"
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

0060-40

Snapper 795027

CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0070

Snapper 1739015YP

POD, LH

$34.99

$

Usually ships in 2-12 days

0

0080

Snapper 1754214YP

SEAT, 11"

$311.99

$

Usually ships in 2-12 days

0

0081

Snapper 1738013YP

SEAT, Bottom, Mesh

Note: (Use on 22 & 26 Gross HP Models)

$225.99

$

In Stock, only 1 left!

0

0082

Snapper 1753182YP

SEAT, Back, Mesh

Note: (Use on 22 & 26 Gross HP Models)

$262.99

$

Usually ships in 2-12 days

0

0083

Snapper 1737848AYP

SUPPORT, Mesh Seat

Note: (Use on 22 & 26 Gross HP Models)

$29.99

$

Usually ships in 2-12 days

0

0084

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

Note: (Use on 22 & 26 Gross HP Models)

$5.49

$

In Stock, Qty 14

0

0085

Snapper 1738015YP

SWITCH, Seat

Note: (Use with Mesh Seat)

$43.99

$

Usually ships in 2-12 days

0

0090

Snapper 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0100

Snapper 1727265BMYP

SUPPORT, Seat
(Superseded to 1755767BMYP)

$152.99

$

Usually ships in 2-12 days

0

0110

Snapper 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0120

Snapper 1930595SM

SCREW, Hex Flange, Whiz Lock, 5/16-1-1/4

$3.99

$

In Stock, Qty 5

0

0130

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0180

Snapper 1739934YP

BUMPER, Rubber

Note: (Use on 22 & 26 Gross HP Models)

$10.99

$

Usually ships in 2-12 days

0

0190

Snapper 885538AYP

PIVOT, Seat

$17.99

$

Usually ships in 2-12 days

0

0200

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0210

Snapper 1739016YP

POD, RH

$30.99

$

Usually ships in 2-12 days

0

0220

Snapper 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1722302SM

GRIP

$8.49

$

In Stock, Qty 10

0

0250

Snapper 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0260

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: (Use on 17.5 & 18 Gross HP Models)

$3.49

$

In Stock, Qty 20+

0

0280

Snapper 885382YP

WASHER, Rubber

$3.99

$

Usually ships in 2-12 days

0

0320

Snapper 885834YP

ROD, Fuel Tank

$16.99

$

Usually ships in 2-12 days

0

0330

Snapper 1001963MA

RING, Foam

$4.49

$

Usually ships in 2-12 days

0

0340

Snapper 1401377MA

BUMPER, Front

$4.99

$

In Stock, only 1 left!

0

0360

Snapper 1704724SM

COVER, Spring

Note: (Use on 17.5 & 18 Gross HP Models)

$7.99

$

In Stock, only 2 left!

0

0370

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

Note: (Use on 17.5 & 18 Gross HP Models)

$5.99

$

In Stock, only 1 left!

0

0380

Snapper 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

Note: (Use on 17.5 & 18 Gross HP Models)

$3.99

$

In Stock, Qty 20+

0

0390

Snapper 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1, G5

$3.99

$

In Stock, only 2 left!

0

0400

Snapper 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0410

Snapper 5025038SM

NUT, Hex, 1/2-13

$

$

Not available

0420

Snapper 1704728SM

SPRING, Compression

Note: (Use on 17.5 & 18 Gross HP Models)

$9.99

$

In Stock, only 2 left!

0

0430

Snapper 1750296YP

FOAM STRIP

Note: (Use with Mesh Seat)

$3.99

$

Usually ships in 2-12 days

0

0440

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

Note: (Use with 11" Seat)

$12.99

$

In Stock, Qty 20+

0
