ERPX 1838RDF (2691114-01) - Snapper 96cm Lawn Tractor, 18hp Lift Group Parts Diagram

96cm Lawn Tractor, 18hp

Lift Group Parts Diagram

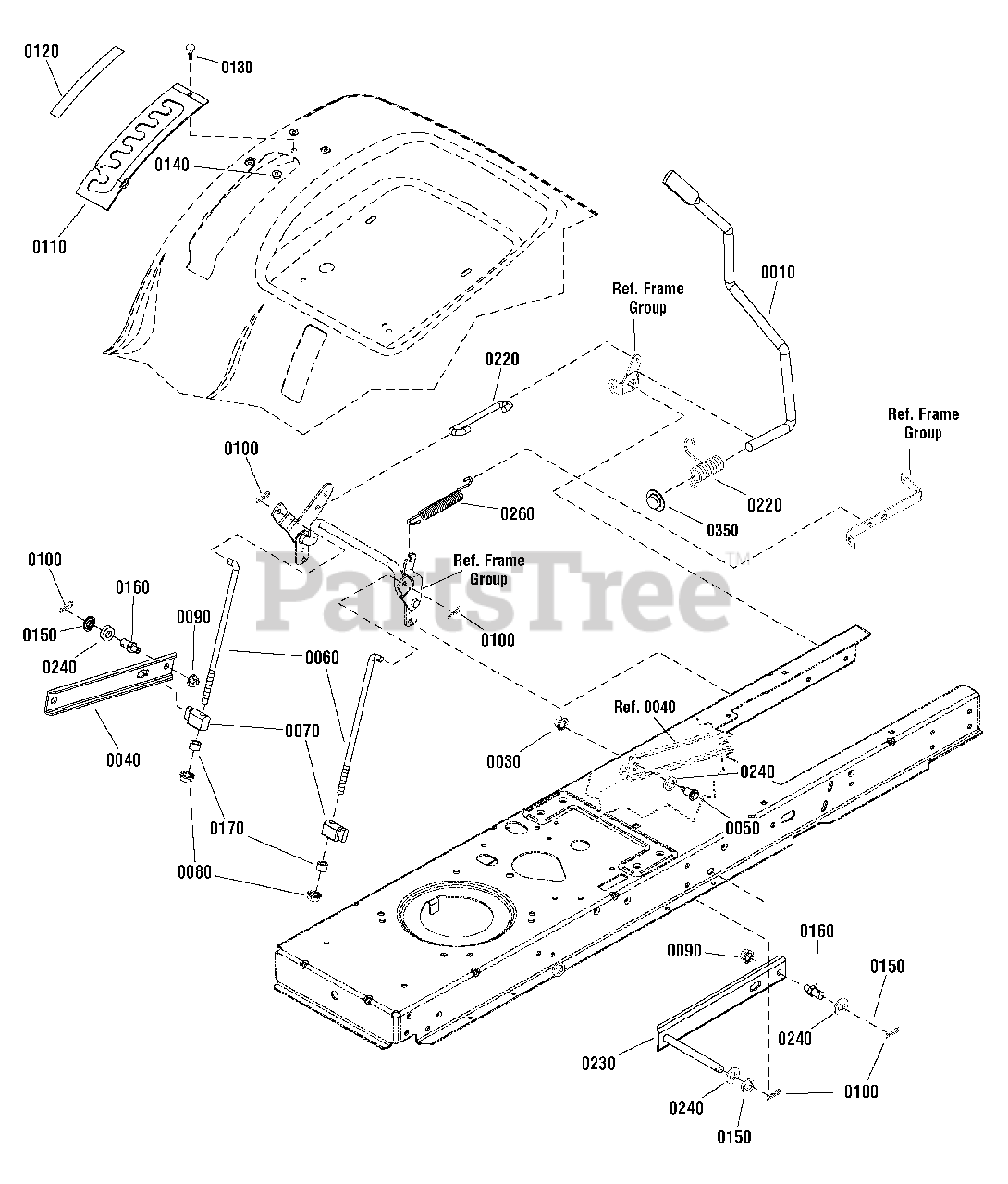

  • Title

0010

Snapper 1728070

ROD, Lift Handle E-Coat, 17.7 LG
(Superseded to 1728070SM)

$40.99

$

Usually ships in 2-12 days

0

0020

Snapper 1729652

SPRING, Torsion, 2.12 LG Black
(Superseded to 1729652SM)

$6.49

$

In Stock, only 1 left!

0

0030

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1731417BM

ARM, Rear Lift, RH
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0050

Snapper 1732426

BOLT, Shoulder, 5/16-18 x .13/16, 1/2" Thread Length
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0060

Snapper 1727955

ROD,Lift,Lower,3/8x10Long
(Superseded to 1727955SM)

$18.99

$

In Stock, Qty 7

0

0070

Snapper 1731894

TRUNNION, Powdered Metal, Yellow, Regent
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

0080

Snapper 1960687

NUT, Hex Lock Flange, 5/16 - 18 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0090

Snapper 1931211

NUT, Hex Flange Whiz Lock, 3/8-16, Small
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0100

Snapper 1960074

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 1727985A

QUADRANT, Lift Height 12GA
(Superseded to 1727985BMYP)

$12.99

$

Usually ships in 2-12 days

0

0120

Snapper 1730264

DECAL, Height Of Cut
(Superseded to 1730264SM)

$8.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960252

BOLT-RD HD SH SQ NK 1/4-20X0. 625 G5 BLK
(Superseded to 1960252SM)

$3.99

$

In Stock, only 1 left!

0

0140

Snapper 1930641

NUT, Hex Flange, Whiz Lock Large, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0150

Snapper 1960170

Flatwasher, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0160

Snapper 721221

PIN,Threaded,Shoulder,3/8-16x1-7/16Long
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0170

Snapper 1666294

SPACER, .385 I.D. x .6697 O.D. x .455 Long, Powdered Metal
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0220

Snapper 1727954

ROD, Lift, 5.43 LG
(Superseded to 1727954SM)

$6.99

$

Usually ships in 2-12 days

0

0230

Snapper 885523BM

ARM, Rear Lift, LH
(Superseded to 885523AYP)

$42.99

$

Usually ships in 2-12 days

0

0240

Snapper 885382

WASHER, Rubber
(Superseded to 885382YP)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 0020X3MA

WASHER, Spring

$4.49

$

Usually ships in 2-12 days

0

0260

Snapper 722453

SPRING, Extension
(Superseded to 165X157MA)

$11.99

$

Usually ships in 2-12 days

0

0350

Snapper 771009

PUSHNUT, 5/8

$3.99

$

In Stock, Qty 20+

0
