ERPX 1838RDF (2691114-01) - Snapper 96cm Lawn Tractor, 18hp Hood, Grille & Dash Group Parts Diagram

96cm Lawn Tractor, 18hp

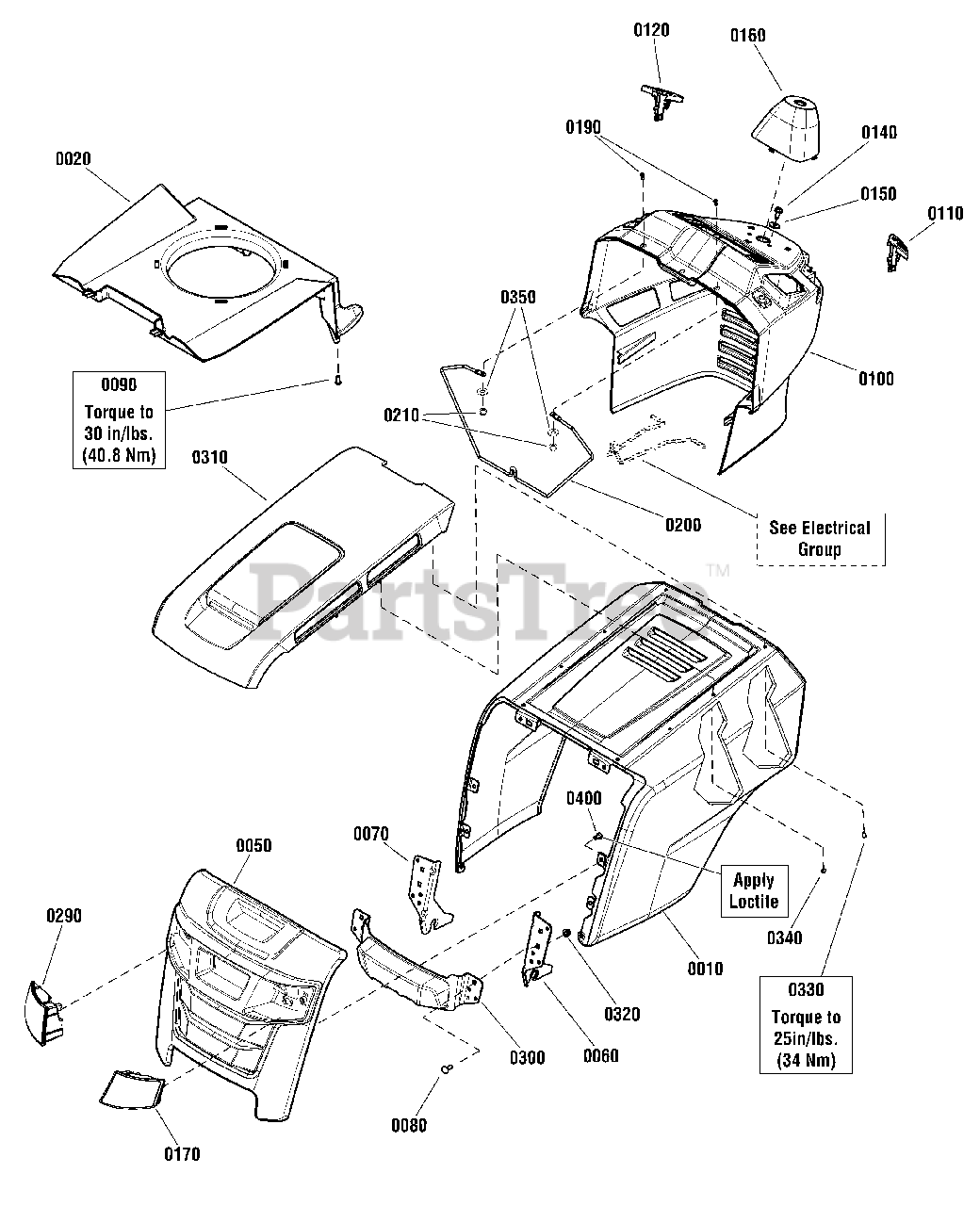

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1753164DYP

HOOD, One Piece

Note: (Use on 17.5 & 18 Gross HP Models)

$234.99

$

Usually ships in 2-12 days

0

0010

Snapper 1752930DYP

HOOD, One Piece, Vent Holes

Note: (Use on 22 & 26 Gross HP Models)

$421.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738734YP

AIR DUCT

$155.99

$

Usually ships in 2-12 days

0

0050

Snapper 1752929YP

GRILLE, Front

$213.99

$

Usually ships in 2-12 days

0

0060

Snapper 1738566AYP

HINGE, Hood, LH

$15.99

$

Usually ships in 2-12 days

0

0070

Snapper 1738565AYP

HINGE, Hood, RH

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091714YP

BOLT, Carriage, 5/16 x 1, G5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0090

Snapper 1754203YP

SCREW, 7mm x 16mm

$4.49

$

In Stock, Qty 8

0

0100

Snapper 885842YP

DASH

$307.99

$

Usually ships in 2-12 days

0

0110

Snapper 1738789YP

KNOB, Parking Brake

$7.49

$

In Stock, only 1 left!

0

0120

Snapper 1738788YP

KNOB, Cruise

$8.49

$

Usually ships in 2-12 days

0

0140

Snapper 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1919381SM

WASHER, 5/16 x 1
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0160

Snapper 1738790YP

COVER, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

0170

Snapper 1753167YP

HEADLIGHT, Led, LH

Note: (Use on 17.5 & 18 Gross HP Models)

$108.99

$

Usually ships in 2-12 days

0

0170

Snapper 1753171YP

HEADLIGHT, Led, LH

Note: (Use on 22 & 26 Gross HP Models)

$121.99

$

Usually ships in 2-12 days

0

0190

Snapper 1739942YP

SCREW, Pan Head Phillips, #10-24 x 7/8

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 885843YP

ROD, Dash Support, 1/4 Dia. x 10"

$21.99

$

Usually ships in 2-12 days

0

0210

Snapper 1933896SM

NUT, Ny-Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0290

Snapper 1753168YP

HEADLIGHT, Led, RH

Note: (Use on 17.5 & 18 Gross HP Models)

$92.99

$

Usually ships in 2-12 days

0

0290

Snapper 1753172YP

HEADLIGHT, Led, RH

$113.99

$

Usually ships in 2-12 days

0

0300

Snapper 1753169BMYP

BUMPER, Front

$49.99

$

Usually ships in 2-12 days

0

0310

Snapper 1752925YP

TRIM, Hood

$170.99

$

Usually ships in 2-12 days

0

0320

Snapper 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 1739329YP

SCREW, PT5

$4.49

$

Usually ships in 2-12 days

0

0340

Snapper 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

0350

Snapper 1960353SM

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0360

Snapper 1753895YP

TRIM, Protective

$7.99

$

Usually ships in 2-12 days

0

0400

Snapper 1754203YP

SCREW, 7mm x 16mm

$4.49

$

In Stock, Qty 8

0
