ERPX 1838RDF (2691114-00) - Snapper 96cm Lawn Tractor, 18hp 96cm Mower Deck - Support Group Parts Diagram

96cm Lawn Tractor, 18hp

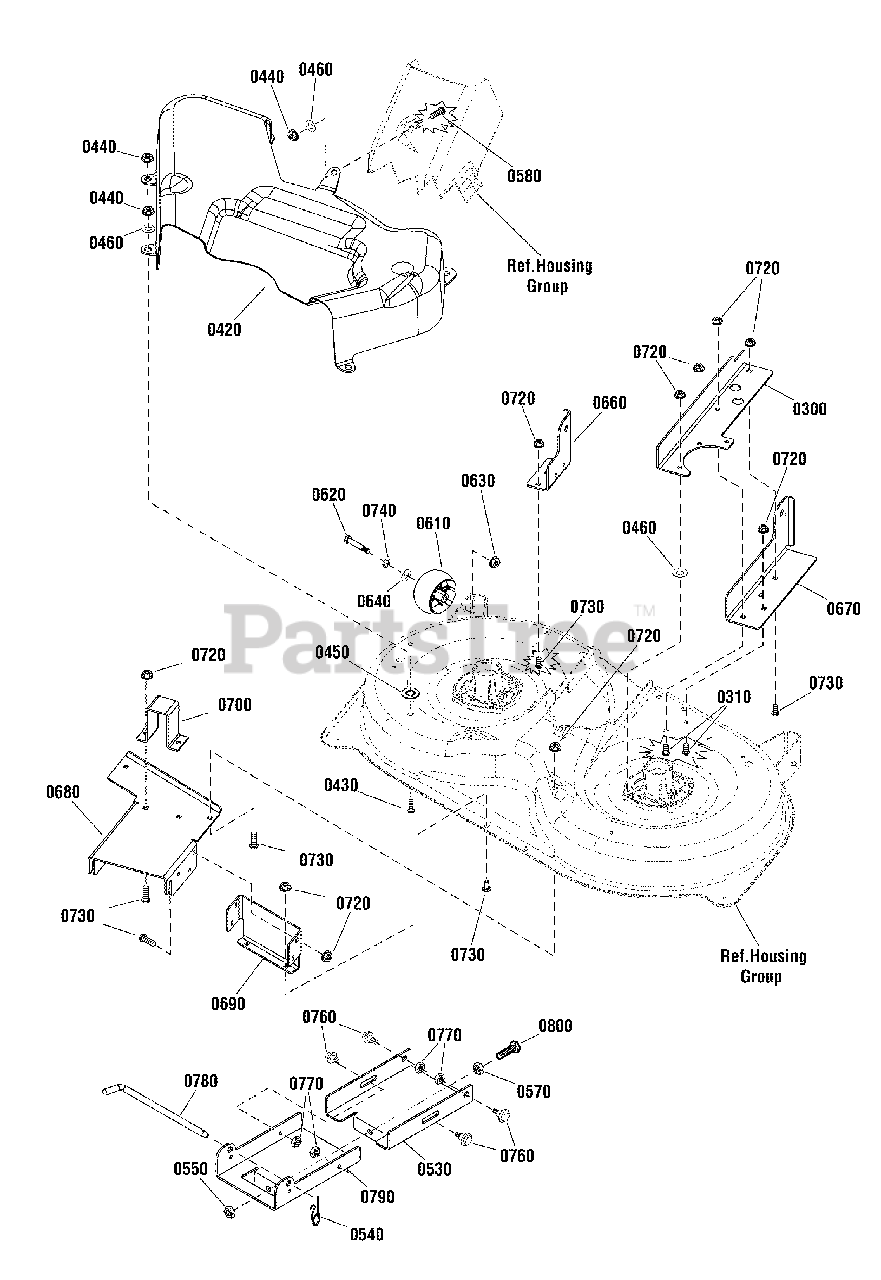

96cm Mower Deck - Support Group Parts Diagram

  • Title

0300

Snapper 885526BM

BRACKET, Rear Lift, LH
(Superseded to 885526AYP)

$28.99

$

Usually ships in 2-12 days

0

0310

Snapper 1931333

BOLT, Carriage, Short Square Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0420

Snapper 885543

COVER, Pulley
(Superseded to 885543YP)

$279.99

$

Usually ships in 2-12 days

0

0430

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0440

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0450

Snapper 5025498

NUT, Push On, 5/16
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0460

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0530

Snapper 885734BM

BRACKET, Front Connector
(Superseded to 885734BMYP)

$53.99

$

Usually ships in 2-12 days

0

0540

Snapper 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 1960379

NUT, Hex Lock, ESNA LIGHT, 1/2-13
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

0570

Snapper 1913744

NUT, Hex Jam, 1/2-13
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 20+

0

0580

Snapper 720049

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0610

Snapper 1714760

WHEEL, Gauge
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

0620

Snapper 2108765

BOLT, 3/8-16 x 2-3/4
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

0630

Snapper 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0640

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0660

Snapper 885462BM

BRACKET, Deck, Rear
(Superseded to 885462AYP)

$15.99

$

Usually ships in 2-12 days

0

0670

Snapper 885463BM

BRACKET, Rear Lift, LH
(Superseded to 885463AYP)

$37.99

$

Usually ships in 2-12 days

0

0680

Snapper 885738BM

SUPPORT, Deck Front
(Superseded to 885738BMYP)

$63.99

$

Usually ships in 2-12 days

0

0690

Snapper 885740BM

BRACKET, Front Support
(Superseded to 885740BMYP)

$25.99

$

Usually ships in 2-12 days

0

0700

Snapper 885519BM

BRACKET, Front Upstop
(Superseded to 885519AYP)

$17.99

$

Usually ships in 2-12 days

0

0720

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0730

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0740

Snapper 720035

WASHER, Spring, .30" ID
(Superseded to 0020X3MA)

$4.49

$

Usually ships in 2-12 days

0

0760

Snapper 1732426

BOLT, Shoulder, 5/16-18 x .13/16, 1/2" Thread Length
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0770

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0780

Snapper 1731414

ROD, Latch
(Superseded to 1731414SM)

$14.99

$

In Stock, only 1 left!

0

0790

Snapper 885699BM

BRACKET, Front Hanger
(Superseded to 885699BMYP)

$82.99

$

In Stock, only 1 left!

0

0800

Snapper 885710

BOLT, 1/2 x 3
(Superseded to 885710YP)

$5.49

$

Usually ships in 2-12 days

0
