ERPX 17538RDF (2691113-00) - Snapper 96cm Lawn Tractor, 17.5hp Frame & Front Axle Group Parts Diagram

96cm Lawn Tractor, 17.5hp

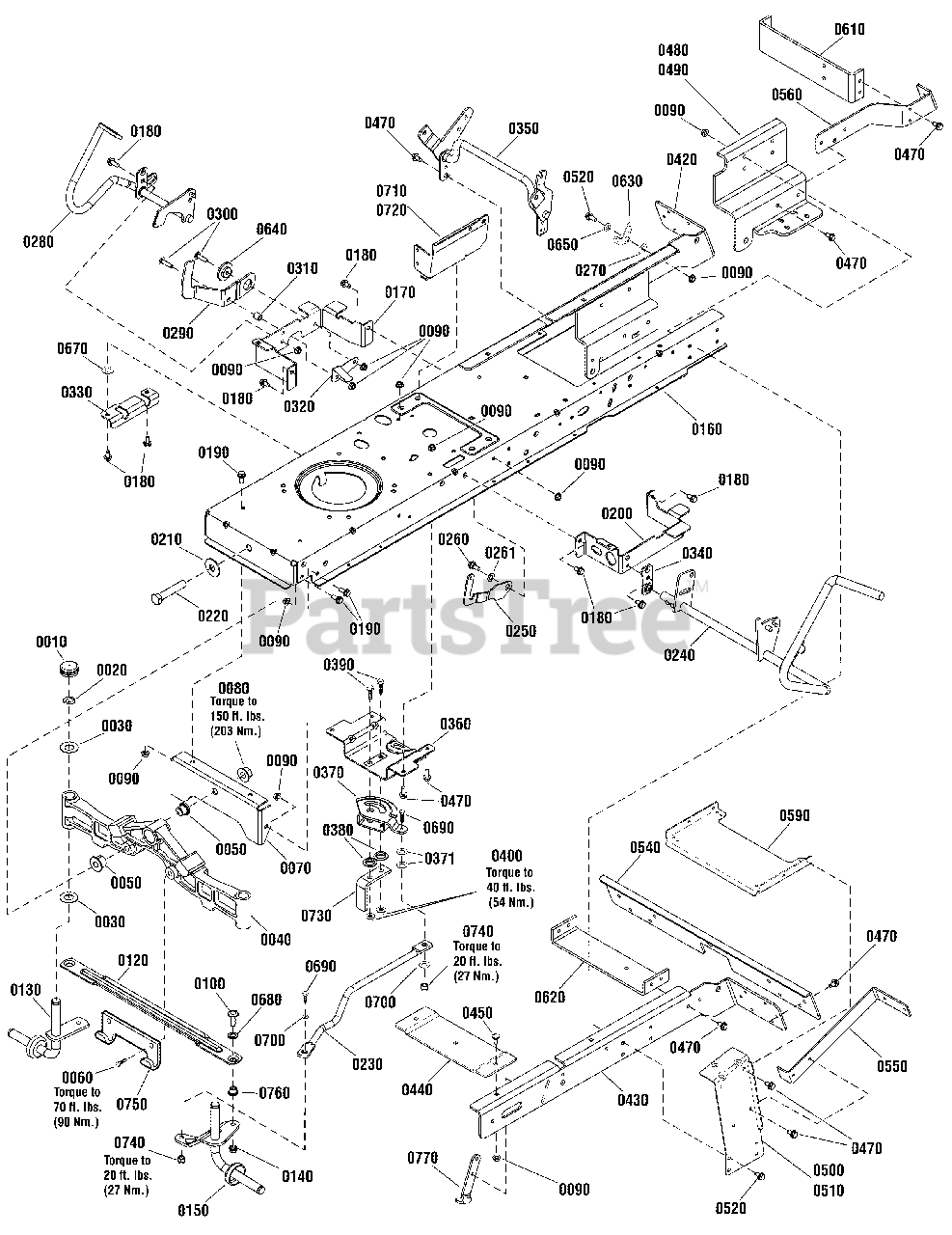

Frame & Front Axle Group Parts Diagram

  • Title

0010

Snapper 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 20+

0

0020

Snapper 1611710SM

E-RING, 3/4

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 2860183SM

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0040

Snapper 1728018SM

AXLE, Front
(Superseded to 1756386YP)

$185.99

$

In Stock, only 1 left!

0

0050

Snapper 1730186SM

BUSHING

$6.99

$

In Stock, Qty 12

0

0060

Snapper 1960652SM

SCREW, Hex Flange, Whiz Lock, 7/16-14 x 1-1/2

$5.49

$

In Stock, Qty 8

0

0070

Snapper 1727902SM

PLATE, Axle Support

$43.99

$

Usually ships in 2-12 days

0

0080

Snapper 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 6

0

0090

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 1751964YP

TIE ROD
(Superseded to 1751964BMYP)

$32.99

$

In Stock, Qty 5

0

0130

Snapper 1727872ASM

SPINDLE & CUP ASSEMBLY, R.H.

$98.99

$

In Stock, Qty 20+

0

0140

Snapper 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0150

Snapper 1751922YP

SPINDLE & ARM ASSEMBLY, L.H.

$109.99

$

Usually ships in 2-12 days

0

0160

Snapper 885656BMYP

* FRAME

$683.99

$

Usually ships in 2-12 days

0

0170

Snapper 1727904SM

SUPPORT, Front Footrest R.H.

$18.99

$

Usually ships in 2-12 days

0

0180

Snapper 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0190

Snapper 93571MA

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0200

Snapper 885536AYP

SUPPORT, Front Footrest L.H.

$25.99

$

Usually ships in 2-12 days

0

0210

Snapper 1960035SM

WASHER, Flat, 5/8

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0230

Snapper 1738051YP

LINK, Drag

$60.99

$

In Stock, Qty 12

0

0240

Snapper 885694YP

PEDAL ASSEMBLY, Brake

$56.99

$

Usually ships in 2-12 days

0

0250

Snapper 1735595YP

LATCH, Brake Lock

$6.99

$

Usually ships in 2-12 days

0

0260

Snapper 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0261

Snapper 7014296YP

WASHER

$4.49

$

In Stock, only 4 left!

0

0270

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0280

Snapper 1736714AYP

PEDAL ASSEMBLY, Forward

$89.99

$

Usually ships in 2-12 days

0

0290

Snapper 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0300

Snapper 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0310

Snapper 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0320

Snapper 1728025BMYP

ACTUATOR, RMO Switch

$6.49

$

Usually ships in 2-12 days

0

0330

Snapper 885591AYP

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0340

Snapper 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0350

Snapper 885579AYP

LIFT SHAFT ASSEMBLY
(Superseded to 1758772YP)

$125.99

$

Usually ships in 2-12 days

0

0360

Snapper 1727940SM

BRACKET, Sector Support

$

$

Not available

0370

Snapper 1751110YP

GEAR, Steering

$34.99

$

In Stock, Qty 20+

0

0371

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0380

Snapper 1728122SM

SPACER, Sector Gear

$5.49

$

In Stock, Qty 10

0

0390

Snapper 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 1 left!

0

0400

Snapper 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0420

Snapper 885508AYP

BRACKET, Rear Frame, RH

$131.99

$

Usually ships in 2-12 days

0

0430

Snapper 885509AYP

BRACKET, Rear Frame, LH

$131.99

$

Usually ships in 2-12 days

0

0440

Snapper 885532AYP

BRACE, Middle Cross

$33.99

$

Usually ships in 2-12 days

0

0450

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0470

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0480

Snapper 885474AYP

BRACKET, Transaxle, RH

$67.99

$

Usually ships in 2-12 days

0

0490

Snapper 885475AYP

BRACKET, Transaxle, LH

$101.99

$

Usually ships in 2-12 days

0

0500

Snapper 885411AYP

SUPPORT, Deck, R.H.

$46.99

$

Usually ships in 2-12 days

0

0510

Snapper 885412AYP

SUPPORT, Deck, L.H.

$46.99

$

Usually ships in 2-12 days

0

0520

Snapper 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0540

Snapper 885469AYP

BRACKET, Middle Back Plate

$42.99

$

Usually ships in 2-12 days

0

0550

Snapper 885466AYP

SUPPORT, Upper, Back Plate

$20.99

$

Usually ships in 2-12 days

0

0560

Snapper 885467AYP

SUPPORT, Lower, Back Plate

$27.99

$

Usually ships in 2-12 days

0

0590

Snapper 885503AYP

BRACE, Cross Deck Support

$26.99

$

Usually ships in 2-12 days

0

0610

Snapper 885890YP

BRACKET, Torque

$18.99

$

Usually ships in 2-12 days

0

0620

Snapper 885486AYP

BRACKET, Idler Mount

$17.99

$

Usually ships in 2-12 days

0

0630

Snapper 1728990ASM

CLEVIS, Lift

$11.99

$

Usually ships in 2-12 days

0

0640

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0650

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

0670

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0680

Snapper 1960703SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

0690

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

0700

Snapper 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

0710

Snapper 885695BMYP

BRACKET, Tower Support, LH

$31.99

$

Usually ships in 2-12 days

0

0720

Snapper 885696BMYP

BRACKET, Tower Support, RH

$31.99

$

Usually ships in 2-12 days

0

0730

Snapper 885791YP

UPSTOP

$12.99

$

Usually ships in 2-12 days

0

0740

Snapper 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0750

Snapper 1721918ASM

HOOK, Mower, Hitch

$31.99

$

In Stock, Qty 9

0

0760

Snapper 1731912SM

BUSHING, 3/8 ID x 5/8 OD x 1/2"

$4.49

$

In Stock, Qty 20+

0

0770

Snapper 885527AYP

UPSTOP

$7.49

$

Usually ships in 2-12 days

0
