ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Transmission Group, Rocker Parts Diagram

21" Walk-Behind Mower, 6.75hp

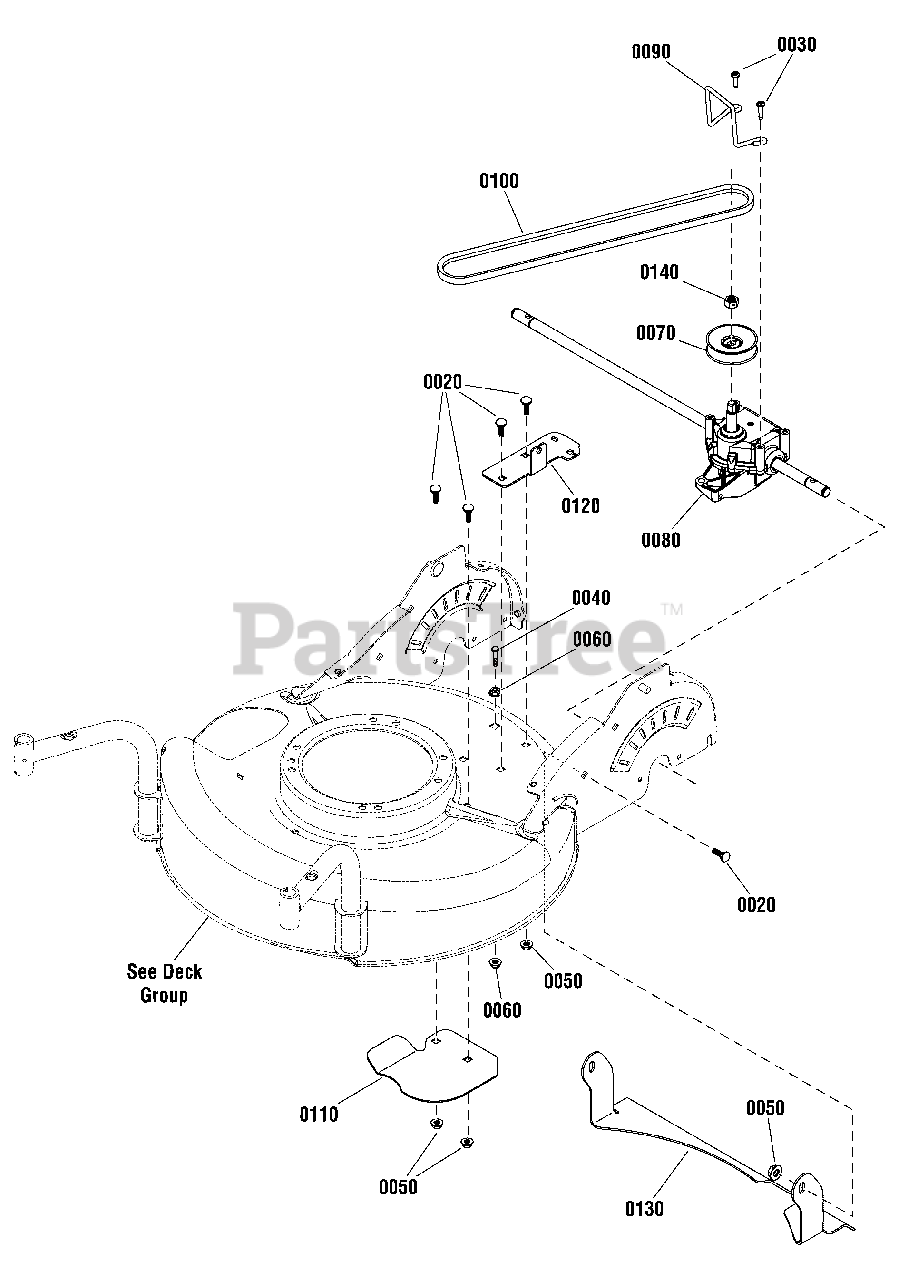

Transmission Group, Rocker Parts Diagram

  • Title

0020

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 7091195SM

SCREW, #10-16 X3/4, Pan Head Self-Tap, BZ

$4.49

$

In Stock, only 1 left!

0

0040

Snapper 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0050

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0060

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0070

Snapper 7100240YP

PULLEY, Transmission Variable Speed, LC WBM

$23.99

$

Usually ships in 2-12 days

0

0080

Snapper 7100858YP

TRANSMISSION, Rocker, 21" WBM

$102.99

$

Usually ships in 2-12 days

0

0090

Snapper 7100863YP

BELT GUIDE, Transmission

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 7100883YP

BELT, Traction Drive (3L Sect., 32.86 Effective Length)

$20.99

$

In Stock, only 1 left!

0

0110

Snapper 7300013AYP

SHIELD, Debris

$7.99

$

Usually ships in 2-12 days

0

0120

Snapper 7300494AYP

BRACKET, Transmission Mounting

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 7300700DYP

SHIELD, Debris, 21", Red

$

$

Currently unavailable

0140

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 2 left!

0
