ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Mower Deck Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

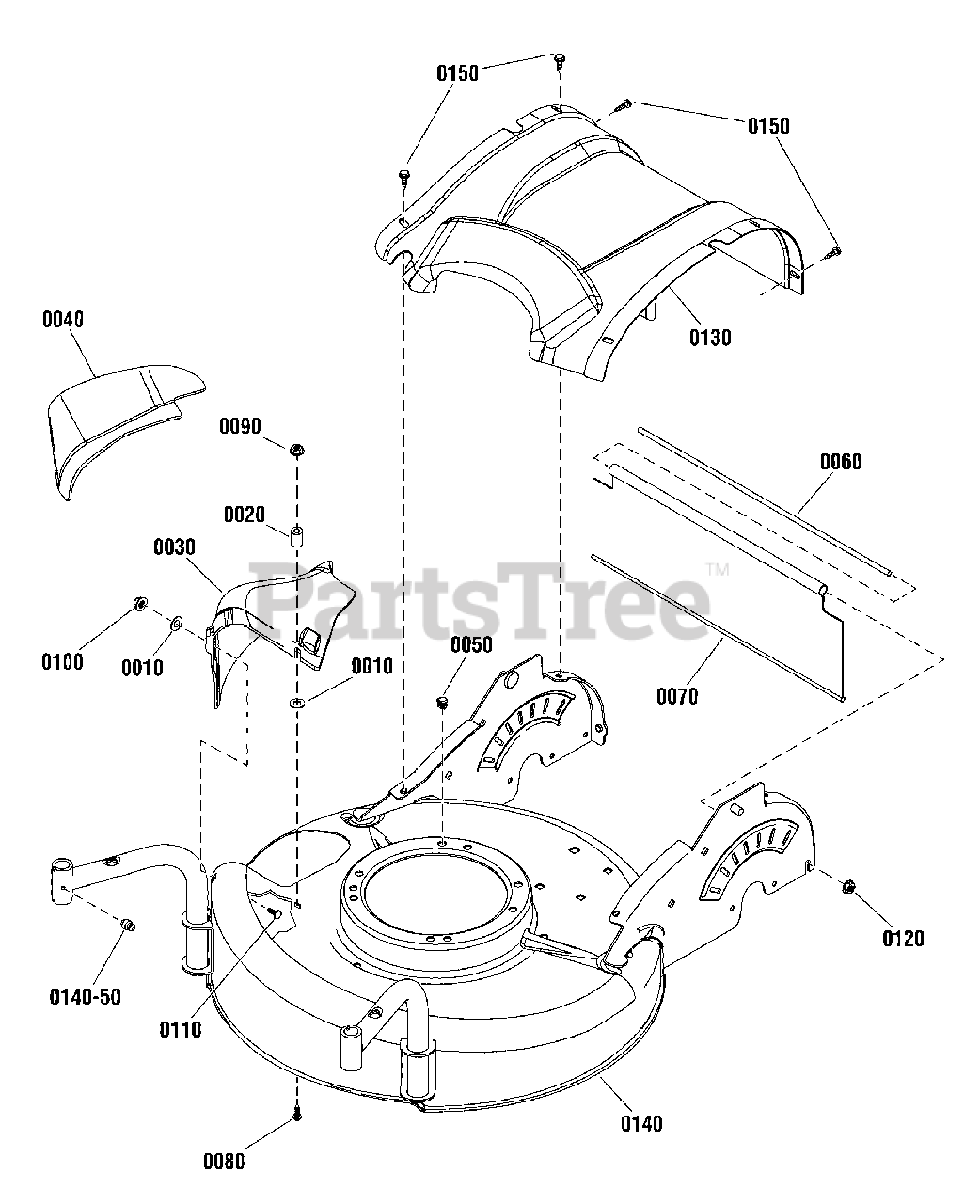

Mower Deck Group Parts Diagram

  • Title

0010

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 7024340SM

SPACER, .375 OD X .316 ID X .305 L

$4.99

$

In Stock, only 4 left!

0

0030

Snapper 7029149YP

COVER, Mulching, 21" Deck

$33.99

$

In Stock, Qty 20+

0

0040

Snapper 7042965YP

CHUTE, 21" Side Discharge

$53.99

$

Usually ships in 2-12 days

0

0050

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 7078225YP

ROD, Trail Shield, 16", 1/4-20 Both Ends, Clear Zinc

$10.99

$

Usually ships in 2-12 days

0

0070

Snapper 7078272YP

SHIELD, Trail

$15.99

$

In Stock, only 1 left!

0

0080

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0090

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 13

0

0100

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0130

Snapper 7100001YP

REAR COVER, Belt/Transmission

$70.99

$

Usually ships in 2-12 days

0

0140

Snapper 7400295DYP

DECK WELDMENT, 21" Swivel Wheel, Value Line, Red

$

$

Currently unavailable

0140-50

Snapper 7013864SM

LUBE FITTING, Straight (3/16"press-fit)

$3.49

$

In Stock, Qty 12

0

0150

Snapper 7900032YP

SCREW, 7MM X 1 X .550, AB Point

$4.49

$

In Stock, only 1 left!

0
