ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Grass Bag & Cover Components Parts Diagram

21" Walk-Behind Mower, 6.75hp

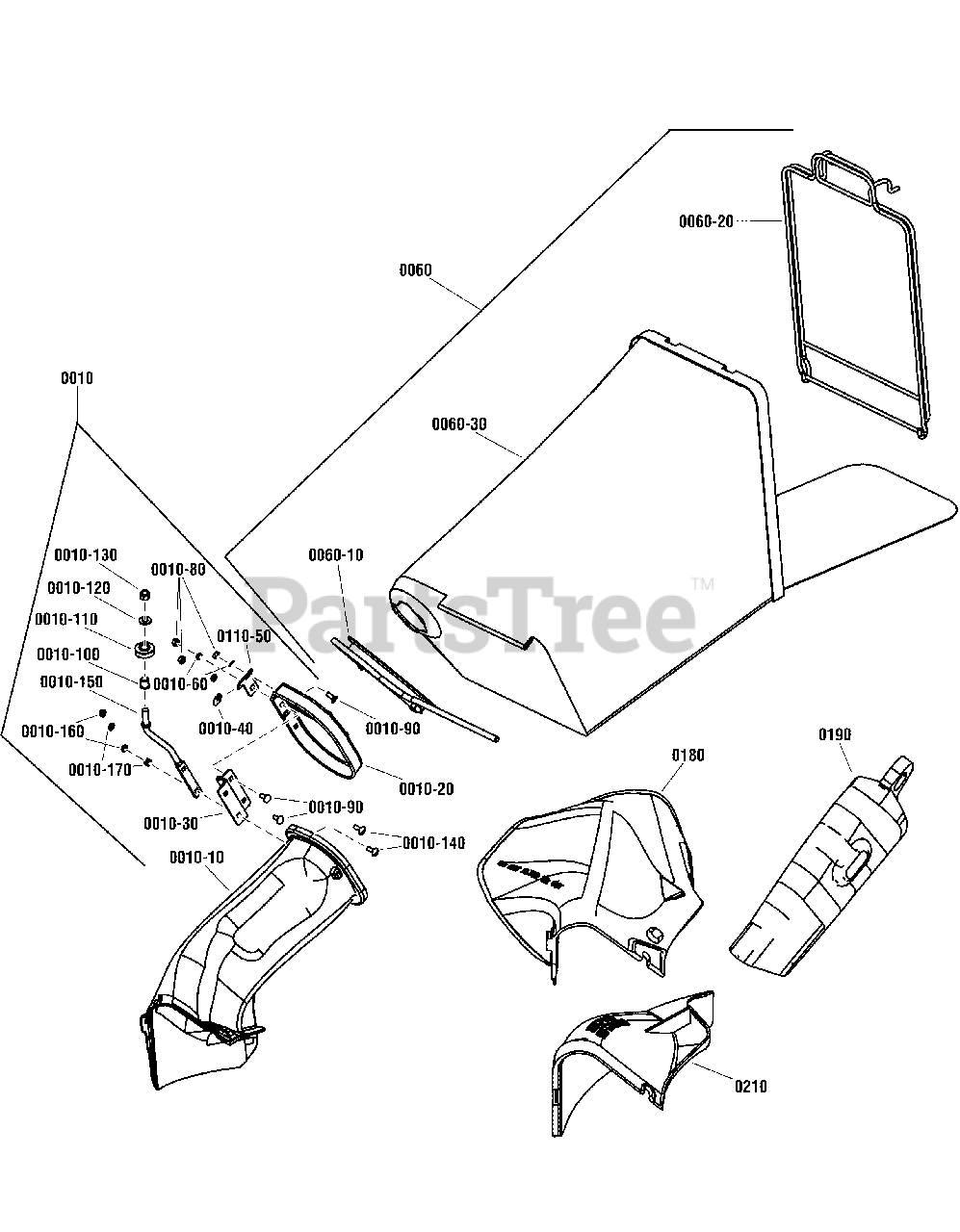

Grass Bag & Cover Components Parts Diagram

  • Title
0010

Snapper 7016107YP

ADAPTER, Grass Bag, EURO 21

$90.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 7016050YP

ADAPTER, Grass Bag, 21

$90.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 7019287YP

COVER, Bag Adapter

$8.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 7023000YP

HINGE, Chute Cover

$35.99

$

In Stock, only 1 left!

0

0010-40

Snapper 7023042YP

TRIM, Moulding

$7.49

$

Usually ships in 2-12 days

0

0010-50

Snapper 7032661YP

STOP, Cover

$6.49

$

Usually ships in 2-12 days

0

0010-60

Snapper 703462

WASHER, 1/4 Internal Tooth Lock, YZ

$4.49

$

In Stock, Qty 7

0

0010-80

Snapper 703127

NUT, 1/4-20, G5 Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0010-90

Snapper 703865

BOLT, 1/4-20 X .625, Carriage, ZC/CL

$3.49

$

Usually ships in 2-12 days

0

0010-100

Snapper 703973

BUSHING, Flanged, .381 x .625 x .62, Metal, CZ/CL

$5.99

$

In Stock, Qty 13

0

0010-110

Snapper 7024228SM

PULLEY, Nylon, .75 ID, 1.3 OD

$4.99

$

In Stock, only 4 left!

0

0010-120

Snapper 703942

WASHER, 5/32 Flat, ZC/CL

$3.99

$

In Stock, only 1 left!

0

0010-130

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0010-140

Snapper 703576

BOLT, 1/4-20 X .75, Carriage, GR5, Zinc/Clear
(Superseded to 703101)

$3.99

$

In Stock, only 2 left!

0

0010-150

Snapper 7100582YP

ROD, Rope Pulley (3/8-16 thread)

$11.99

$

Usually ships in 2-12 days

0

0010-160

Snapper 704321

NUT, 1/4-20, GR5, Hex Jam, BZ

$3.49

$

Usually ships in 2-12 days

0

0010-170

Snapper 704133

WASHER, 1/4, Lock, Split Spring, Zinc/Clear

$3.99

$

In Stock, Qty 11

0

0060

Snapper 7500153YP

ASSEMBLY, Grass Bag, Door, No Graphics, 12.5" W, 26.5" L

$

$

Not available

0060-10

Snapper 7042489AYP

WELDMENT, Bag Connector

$44.99

$

Usually ships in 2-12 days

0

0060-20

Snapper 7051906AYP

ASSEMBLY, Bag Wire, 12.25" Wide
(Superseded to 7051906YP)

$110.99

$

Usually ships in 2-12 days

0

0060-30

Snapper 7100433YP

GRASS BAG, Door, No Graphics, 12.5" W, 26.5" L

$95.99

$

In Stock, only 1 left!

0

0180

Snapper 7042965YP

CHUTE, 21" Side Discharge

$53.99

$

Usually ships in 2-12 days

0

0190

Snapper 7016814YP

PLUG, Chute Adapter

Note: (accessory item)

$49.99

$

In Stock, only 4 left!

0

0210

Snapper 7029149YP

COVER, Mulching, 21" Deck

$33.99

$

In Stock, Qty 20+

0
