ERPV 21675SW (7800874) - Snapper 21" Walk-Behind Mower, 6.75hp Front Wheels Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

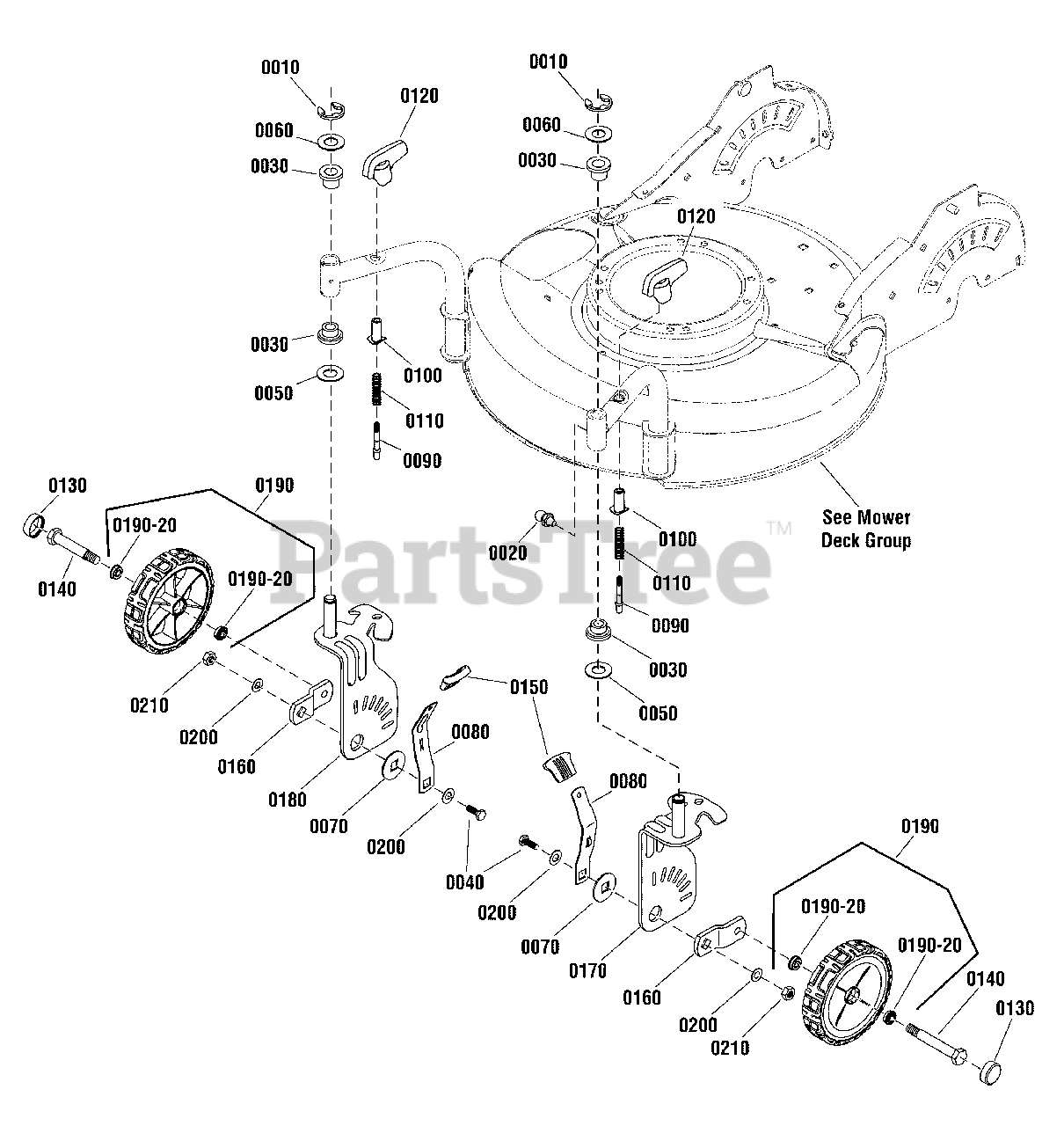

Front Wheels Group Parts Diagram

  • Title
0010

Snapper 1704420SM

RING, External (Klipring) for .625 Dia. Shaft

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 7013864SM

LUBE FITTING, Straight (3/16"press-fit)

$3.49

$

In Stock, Qty 12

0

0030

Snapper 7046628YP

BUSHING, 5/8 Nyliner

$4.99

$

In Stock, only 3 left!

0

0040

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0050

Snapper 7091628SM

WASHER, .64X.99X.05, Flat, YZ

$4.49

$

In Stock, only 3 left!

0

0060

Snapper 7092021YP

WASHER, .64X.99X.025, Flat, YZ

$3.99

$

In Stock, only 1 left!

0

0070

Snapper 7100249YP

SPACER, .328 ID,Swivel Wheel Pivot

$7.99

$

In Stock, only 1 left!

0

0080

Snapper 7100251YP

LEVER, Height Adjust, Swivel Wheel, CZ

$8.49

$

In Stock, only 4 left!

0

0090

Snapper 7101198YP

PIN, 2.235" Lg, Handle Adjust

$5.49

$

Usually ships in 2-12 days

0

0100

Snapper 7101199YP

BUSHING, Handle Pin

$6.99

$

Usually ships in 2-12 days

0

0110

Snapper 7101200YP

SPRING, 1.13" LG, .37" OD, .272" ID, Compression

$4.49

$

Usually ships in 2-12 days

0

0120

Snapper 7101202YP

KNOB, Quick Release

$6.99

$

Usually ships in 2-12 days

0

0130

Snapper 7101350YP

HUBCAP, 8" & 9" Spoked Wheel, Cool Gray

$10.99

$

In Stock, Qty 19

0

0140

Snapper 7101484YP

AXLE, 1-5/8, .5" OD, 3/8-16 Thrd., Swivel Wheel

$15.99

$

Usually ships in 2-12 days

0

0150

Snapper 7103793YP

GRIP, Height Latch, Black

$4.49

$

In Stock, Qty 9

0

0160

Snapper 7300432YP

AXLE PLATE, Swivel Wheel, CZ

$11.99

$

In Stock, only 1 left!

0

0170

Snapper 7400293YP

BRACKET, Swivel Wheel, LH, CZ

$61.99

$

Usually ships in 2-12 days

0

0180

Snapper 7400294YP

BRACKET, Swivel Wheel, RH, CZ

$63.99

$

Usually ships in 2-12 days

0

0190

Snapper 7500540YP

ASSEMBLY, Wheel, 8 x 2 W/BB, Gray

$40.99

$

In Stock, only 2 left!

0

0190-20

Snapper 7101380YP

BALL BEARING, 1-1/8 O.D., Flange
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

0200

Snapper 703118

WASHER, 7/8, Flat, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 11

0

0210

Snapper 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0
