ERPV 21675SW (7800730) - Snapper 21" Walk-Behind Mower, 6.75hp HANDLES & CONTROLS Parts Diagram

21" Walk-Behind Mower, 6.75hp

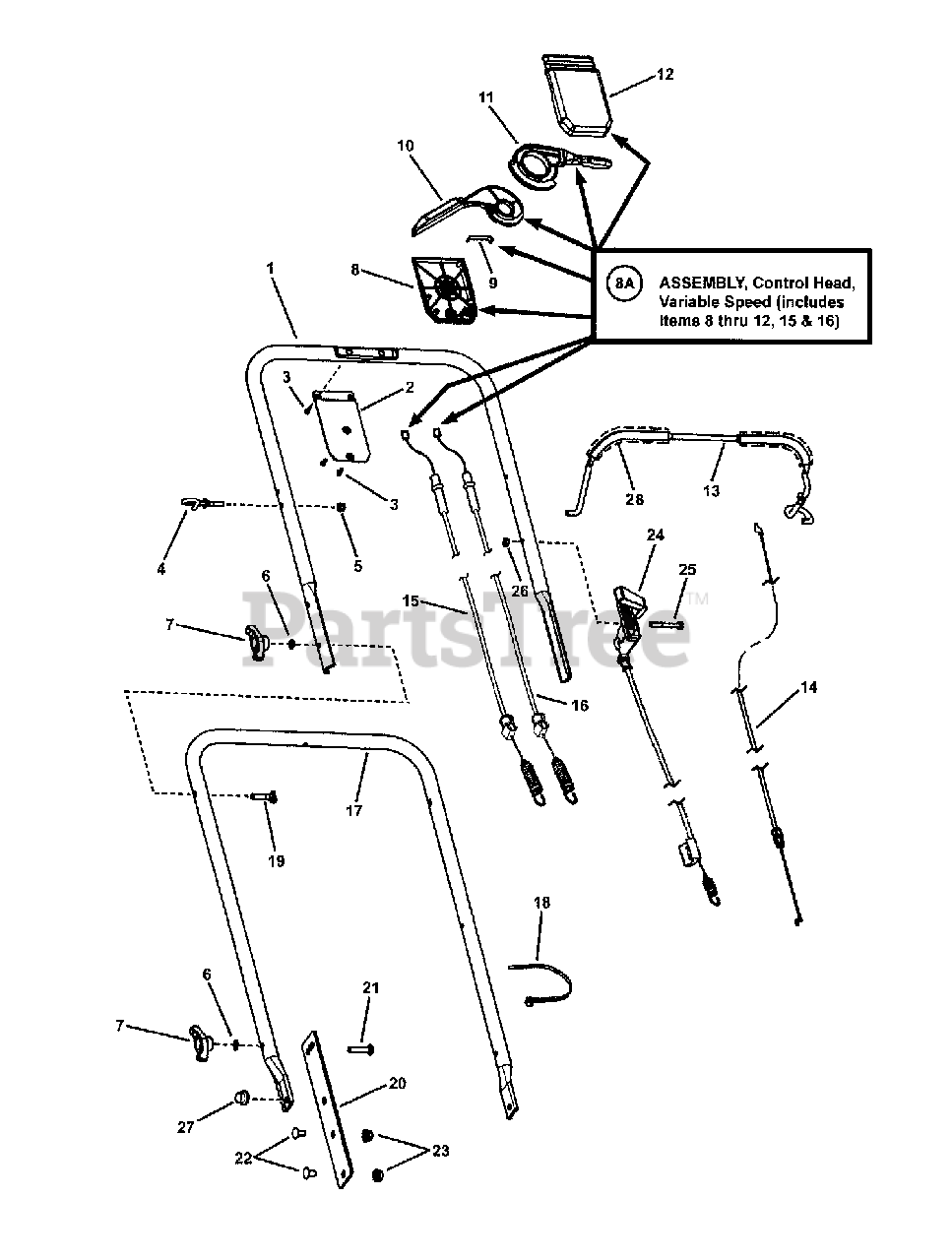

HANDLES & CONTROLS Parts Diagram

  • Title

1

Snapper 7078247

HANDLE, Upper
(Superseded to 7078247AYP)

Note: (finish: flat black textured)

$142.99

$

Usually ships in 2-12 days

0

2

Snapper 7300130

PLATE, Control Panel
(Superseded to 7300130AMA)

Note: (finish: flat black textured)

$22.99

$

Usually ships in 2-12 days

0

3

Snapper 7100225

SCREW, #8-16 Recessed Pan Head (Torxplus)
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7028488

GUIDE, Rope
(Superseded to 7028488MA)

Note: (with 1/4-20 threads)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 720727

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

8A

Snapper 7100069

ASSY, Control Head Variable Speed (Incl. 8, 9, 10, 11, 12, 15 & 16)
(Superseded to 7100069YP)

$176.99

$

Usually ships in 2-12 days

0

8

CASE HALF, Bottom, Black

Note: (not available individually)

$

$

Not available

9

SPRING STEEL

Note: (not available individually)

$

$

Not available

10

CLUTCH LEVER, Silver

Note: (not available individually)

$

$

Not available

11

ASSEMBLY, Speed Lever/Friction Material

Note: (not available individually; includes 7100412, Friction Strip)

$

$

Not available

12

CASE HALF, Top, Variable Speed- Black

Note: (not available individually)

$

$

Not available

13

Snapper 7078248

BAIL, Brake
(Superseded to 7500222YP)

Note: (finish: flat black textured)

$55.99

$

Usually ships in 2-12 days

0

14

Snapper 7100074

* CABLE, Zone Control
(Superseded to 7100074YP)

$21.99

$

In Stock, only 1 left!

0

15

Snapper 7100263

* CABLE, Clutch
(Superseded to 7100263YP)

$38.99

$

In Stock, only 1 left!

0

16

Snapper 7100264

* CABLE, Speed
(Superseded to 7100290YP)

$69.99

$

Usually ships in 2-12 days

0

17

Snapper 7078246

HANDLE, Lower
(Superseded to 7078246AYP)

Note: (finish: flat black textured)

$139.99

$

Usually ships in 2-12 days

0

18

Snapper 7024649

WIRE TIE, 11 Inch Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

20

Snapper 7300103

BRACKET, Lower Handle
(Superseded to 7300103AYP)

Note: (finish: flat black textured)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck, GR 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

22

Snapper 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7072023

* CONTROL, Swivel Wheel Latch 56.5 (LH Outside)
(Superseded to 7072023YP)

$

$

Not available

25

Snapper 7090505

SCREW, 1/4-20 x 2" Hex Head Cap, GR 5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

27

Snapper 7091135

PUSHNUT, 3/8"
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7100632

FOAM GRIP, 7"
(Superseded to 7100632YP)

$6.99

$

Usually ships in 2-12 days

0
