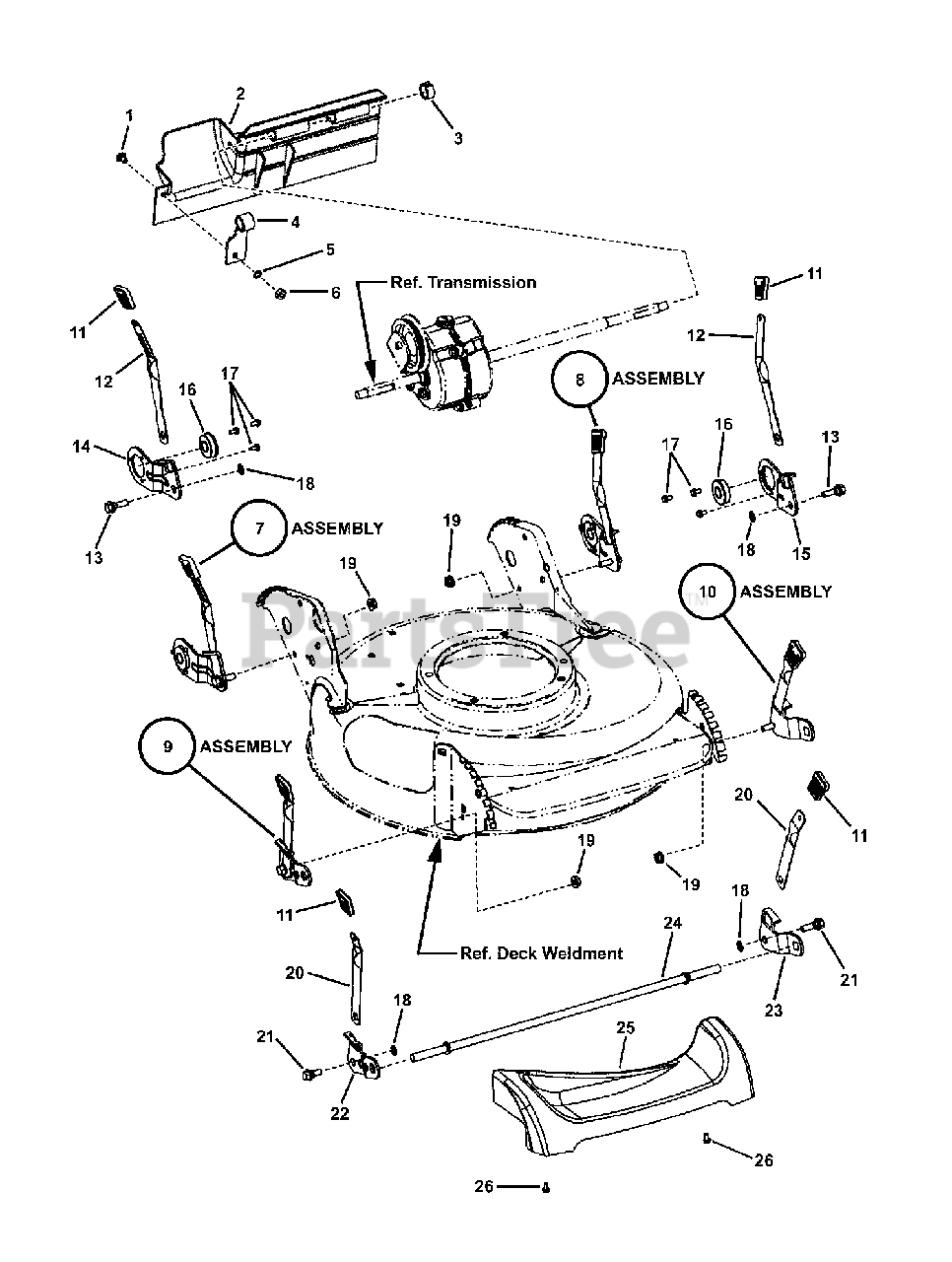

ERP 2187519BV (7800249) - Snapper 21" Walk-Behind Mower, 8.75hp Wheel Brackets & Latches Parts Diagram

21" Walk-Behind Mower, 8.75hp

Wheel Brackets & Latches Parts Diagram

  • Title

1

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage GR 5
(Superseded to 703978)

Note: (or 7090005)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7042918

FOOT GUARD, P21 Euro, Long
(Superseded to 7042918YP)

$21.99

$

In Stock, Qty 15

0

3

Snapper 7023791

RING, Split (Black)
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7012616

SUPPORT, Foot Guard
(Superseded to 7012616YP)

$4.99

$

In Stock, Qty 5

0

5

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: (was 7091023)

$4.49

$

In Stock, Qty 7

0

6

Snapper 7091576

NUT, 1/4-20 Hex, GR 5 or B
(Superseded to 703127)

Note: (was 7090063)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7054246

ASSY, Wheel Arm, Right Rear (S.P.)
(Superseded to 7054246YP)

Note: (was 7054230)

$

$

Not available

8

Snapper 7054247

ASSY, Wheel Arm Left Rear Long SP21S
(Superseded to 7054247YP)

Note: (was 7054231)

$40.99

$

In Stock, Qty 9

0

9

Snapper 7051886

ASSEMBLY, Right Wheel Arm
(Superseded to 7600180YP)

$

$

Not available

10

Snapper 7500038

ASSEMBLY, Left Wheel Arm
(Superseded to 7600183YP)

Note: (was 7051885)

$

$

Not available

11

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

Note: (replaces 7027702 (voided))

$4.49

$

In Stock, Qty 9

0

12

Snapper 7035717

LATCH, Height Adjusting (long)
(Superseded to 7035717YP)

$6.99

$

In Stock, Qty 10

0

13

Snapper 7011078

BOLT, 5/16-18 x 1" Hex Washer Face Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

14

Snapper 7032722

ARM, Wheel, Right Rear
(Superseded to 7032722YP)

$

$

Not available

15

Snapper 7032723

ARM, Wheel, Left Rear
(Superseded to 7032723YP)

$6.49

$

In Stock, Qty 8

0

16

Snapper 7012312

BEARING, 9/16" I.D.
(Superseded to 7012312YP)

$11.99

$

In Stock, Qty 20+

0

17

Snapper 7091012

SCREW, #10-32 x 3/8" Hex Washer Self-Tap
(Superseded to 703967)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (was 7091070)

$5.49

$

In Stock, Qty 20+

0

20

Snapper 7012325

LATCH, Height
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 20+

0

21

Snapper 7015761

BOLT, 5/16-18 x 3/4" Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

22

Snapper 7031017

WHEEL ARM, R.H. Front (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 7011393

WHEEL ARM, L.H. Front (Square Hole)
(Superseded to 7011393YP)

Note: (was 7031016)

$

$

Not available

24

Snapper 7100752

AXLE, 21" (3/8-16 thread- both ends, 20.62" long)
(Superseded to 7100752YP)

Note: (used on EP2187520BV & ERP2187520BV)

$

$

Not available

24

Snapper 7021119

AXLE, 21" (7/16-20 thread- both ends, 20.44" long)
(Superseded to 7021119YP)

Note: (used on EP2187519BV & ERP2187519BV)

$22.99

$

In Stock, Qty 18

0

25

Snapper 7100196

COVER, Front 21" walk
(Superseded to 7100196YP)

$23.99

$

Usually ships in 2-12 days

0

26

Snapper 7900018

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0
