ERDV 21750HW (1696373-00) - Snapper 21" Walk-Behind Mower Lift Group Parts Diagram

21" Walk-Behind Mower

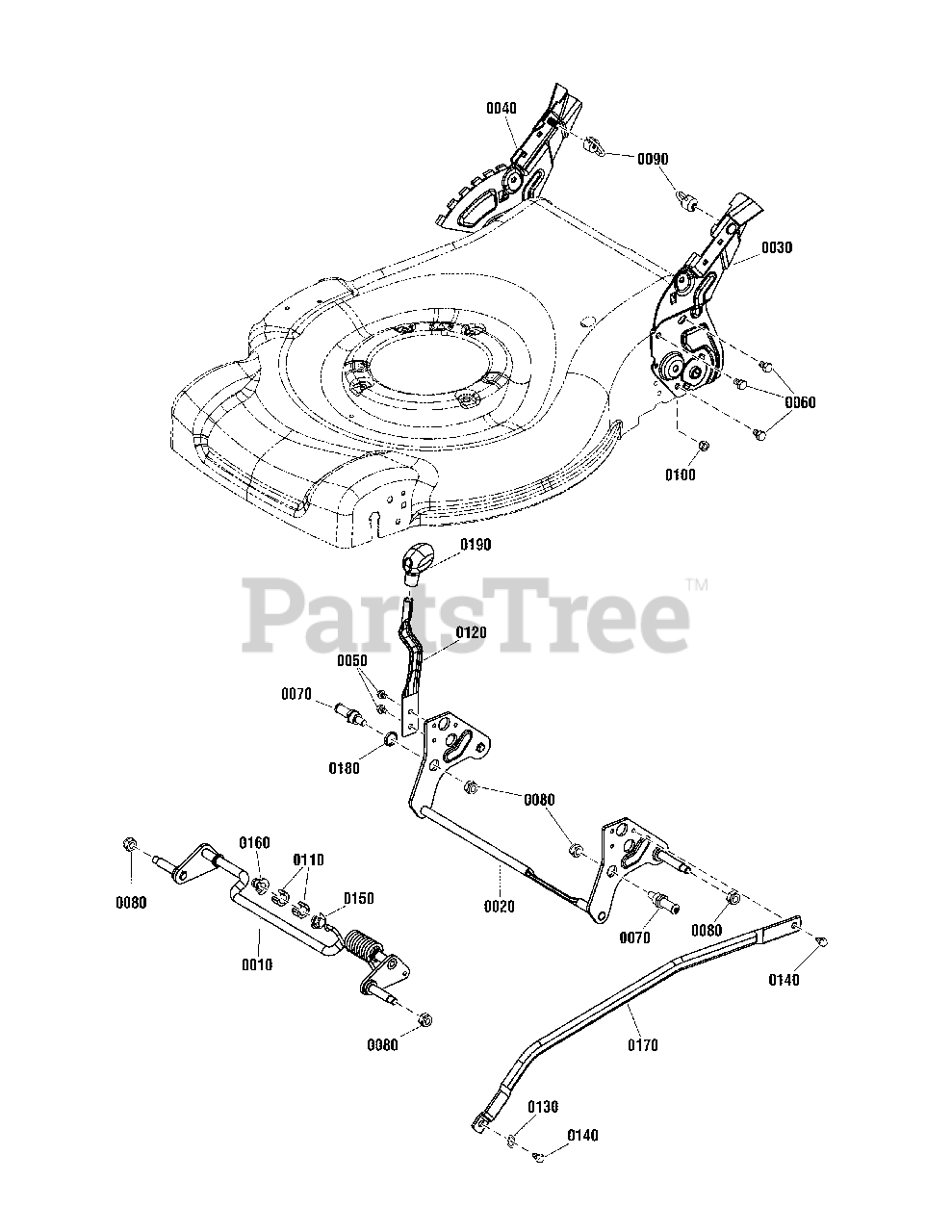

Lift Group Parts Diagram

  • Title
0010

Snapper 703607

CROSSBAR ASSEMBLY, Front

$

$

Currently unavailable

0020

Snapper 703609

CROSSBAR ASSEMBLY, Rear

$

$

Currently unavailable

0030

Snapper 703614

BRACKET ASSEMBLY, LH

$

$

Currently unavailable

0040

Snapper 703617

BRACKET ASSEMBLY, RH

$

$

Currently unavailable

0050

Snapper 7091084YP

SCREW, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0060

Snapper 703627

SCREW, M8 x 12

$

$

Currently unavailable

0070

Snapper 703632

SHAFT, Rear Axle Pivot

$

$

Currently unavailable

0080

Snapper 703633

NUT, M10 x 1.25

$

$

Currently unavailable

0090

Snapper 703634

NUT, Wing, 3/8-16

$

$

Currently unavailable

0100

Snapper 703635

NUT, M8

$

$

Currently unavailable

0110

Snapper 703655

SPACER, Clip

$

$

Currently unavailable

0120

Snapper 703698

LEVER, Height Adjustment

$

$

Currently unavailable

0130

Snapper 703712

WASHER, Wave

$

$

Currently unavailable

0140

Snapper 703521

BOLT, Shoulder, 1/4-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0

0150

Snapper 703715

BEARING, Flange Hex

$

$

Currently unavailable

0160

Snapper 703716

BEARING, Flange

$

$

Currently unavailable

0170

Snapper 703741

LINK, Single Lever

$

$

Currently unavailable

0180

$

$

Currently unavailable

0190

Snapper 703648

KNOB, Adjuster

$

$

Currently unavailable
