ERDV 21750HW (1696373-00) - Snapper 21" Walk-Behind Mower Handles Group Parts Diagram

21" Walk-Behind Mower

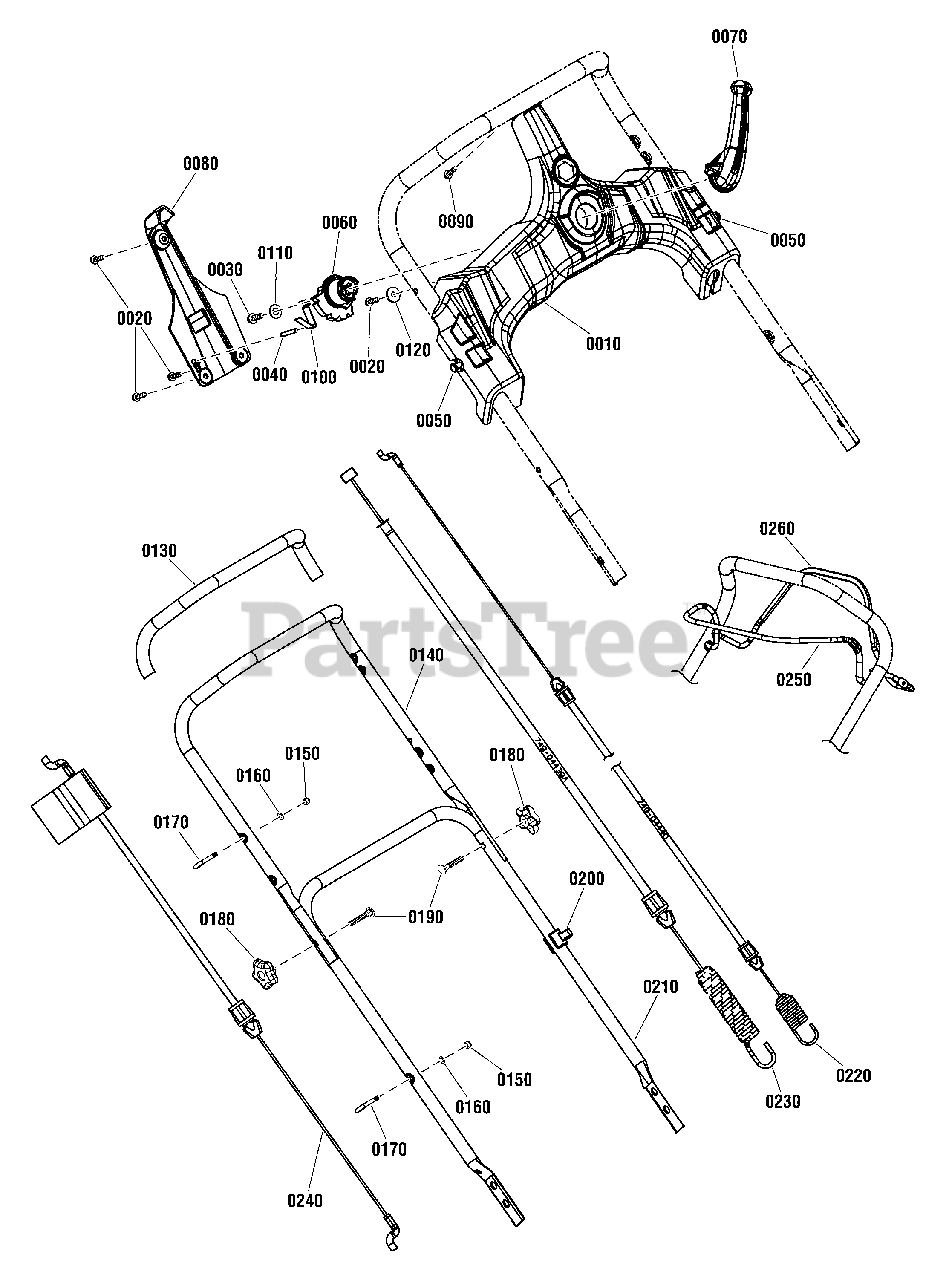

Handles Group Parts Diagram

  • Title
0010

Snapper 703683

PANEL ASSEMBLY, Control

$

$

Currently unavailable

0020

Snapper 703621

SCREW, 12-16 x 0.7

$

$

Currently unavailable

0030

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0040

Snapper 703637

PIN, Axle, 3/16 x 1-1/4

$

$

Currently unavailable

0050

Snapper 26X217MA

SCREW, 1/4-20 x 5/8
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 703674

GEAR SELECTOR CAM

$

$

Currently unavailable

0070

$

$

Currently unavailable

0080

Snapper 703681

PANEL COVER

$

$

Currently unavailable

0090

Snapper 703186

SCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0100

Snapper 703700

SPRING, Detent

$

$

Currently unavailable

0110

Snapper 703780

WASHER, Flat

$

$

Currently unavailable

0120

Snapper 703784

WASHER, Flat

$

$

Currently unavailable

0130

Snapper 703645

TUBING, Foam

$

$

Currently unavailable

0140

Snapper 703749

HANDLE, Upper

$

$

Currently unavailable

0150

Snapper 67885GS

NUT, M6

$6.99

$

In Stock, only 1 left!

0

0160

Snapper 703781

WASHER, A6.4

$

$

Currently unavailable

0170

Snapper 703768

GUIDE, Starter Rope, M6

$

$

Currently unavailable

0180

Snapper 1101453MA

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 7091013SM

BOLT, Curved Head Square, 5/16-18 x 2

$5.49

$

In Stock, only 1 left!

0

0200

Snapper 703690

CABLE GUIDE

$

$

Currently unavailable

0210

Snapper 703746

HANDLE, Lower

$

$

Currently unavailable

0220

Snapper 703722

CABLE, Drive Control

$

$

Currently unavailable

0230

Snapper 703721

CABLE, Clutch, 54.25

$

$

Currently unavailable

0240

Snapper 703727

CABLE, Engine Brake, 1070mm

$

$

Currently unavailable

0250

Snapper 703736

LEVER, Engine Stop

$

$

Currently unavailable

0260

Snapper 703735

LEVER, Drive

$

$

Currently unavailable
