ERDV 19850EHW (881587) - Snapper 19" Walk-Behind Mower Wheels Group - High Wheel Parts Diagram

19" Walk-Behind Mower

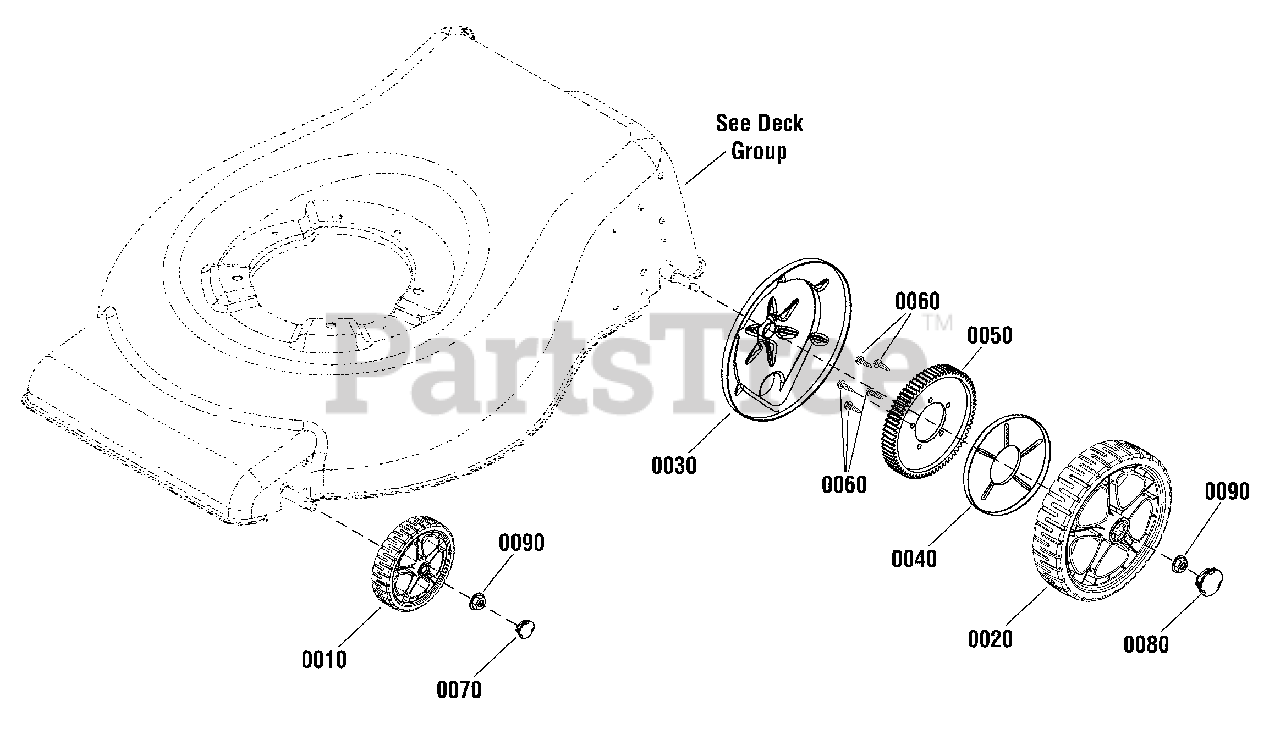

Wheels Group - High Wheel Parts Diagram

  • Title

0010

Snapper 880715

WHEEL ASSEMBLY, Front, 200mm
(Superseded to 880715YP)

$35.99

$

Usually ships in 2-12 days

0

0020

Snapper 880696

WHEEL ASSEMBLY, Rear, 305mm
(Superseded to 880696YP)

$43.99

$

Usually ships in 2-12 days

0

0030

Snapper 880528

DUST COVER, Rear
(Superseded to 880528YP)

$18.99

$

Usually ships in 2-12 days

0

0040

Snapper 880539

DUST COVER, Outer
(Superseded to 880539YP)

$19.99

$

Usually ships in 2-12 days

0

0050

Snapper 880526

GEAR, Wheel
(Superseded to 880526YP)

$15.99

$

Usually ships in 2-12 days

0

0060

Snapper 880266

SCREW, Hex Head, Hi-Lo, 1/4-15 x 3/4
(Superseded to 880266YP)

$3.49

$

In Stock, only 1 left!

0

0070

Snapper 880701

HUBCAP, Front
(Superseded to 880701YP)

$13.99

$

Usually ships in 2-12 days

0

0080

Snapper 880700

HUBCAP, Rear
(Superseded to 880700YP)

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 881568

NUT, Hex Flange, Center Lock, 3/8-16
(Superseded to 881568YP)

$5.49

$

In Stock, only 1 left!

0
