ERDV 19675EX (881586) - Snapper 19" Walk-Behind Mower Wheels Group - Self-Propelled Parts Diagram

19" Walk-Behind Mower

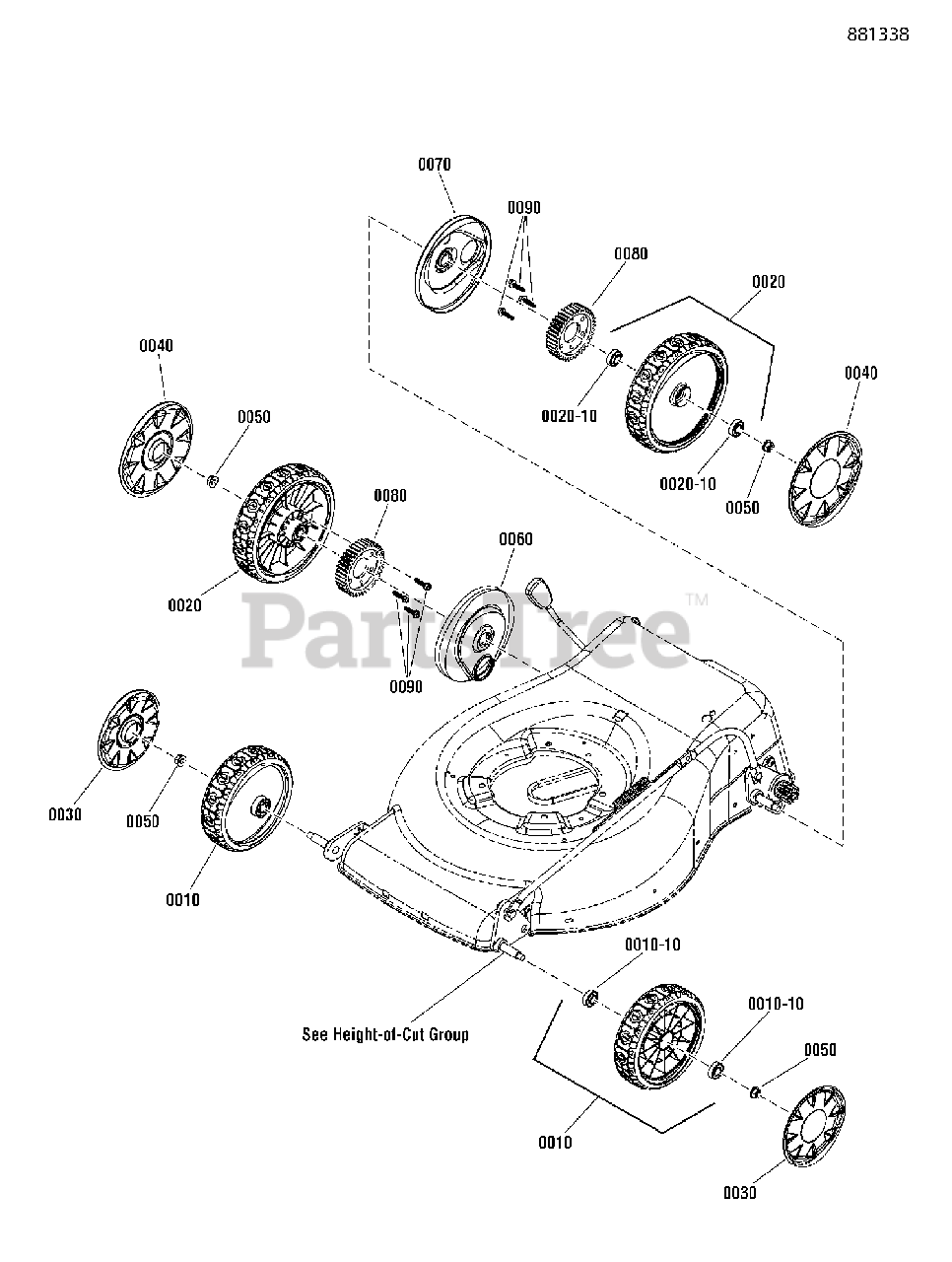

Wheels Group - Self-Propelled Parts Diagram

  • Title

0010

Snapper 880718

ASSEMBLY, Wheel, Ball Bearing, 175MM, Tread III
(Superseded to 880718YP)

$56.99

$

In Stock, only 1 left!

0

0010-10

Snapper 880175

BALL BEARING, Wheel
(Superseded to 880718YP)

$56.99

$

In Stock, only 1 left!

0

0020

Snapper 880195

ASSEMBLY, Wheel, 200MM, Ball Bearing, SP, Tread III
(Superseded to 880194YP)

$

$

Not available

0020-10

Snapper 880175

BALL BEARING, Wheel
(Superseded to 880718YP)

$56.99

$

In Stock, only 1 left!

0

0030

Snapper 880656

HUBCAP, 175MM, Style 3, Silver
(Superseded to 880656YP)

$14.99

$

Usually ships in 2-12 days

0

0040

Snapper 880657

HUBCAP, 200MM, Style 3, Silver
(Superseded to 880657YP)

$13.99

$

Usually ships in 2-12 days

0

0050

Snapper 881568

LOCKNUT, 3/8-16 Hex Flange Top
(Superseded to 881568YP)

$5.49

$

In Stock, only 1 left!

0

0060

Snapper 880230

DUST COVER, RH
(Superseded to 880230YP)

$9.49

$

Usually ships in 2-12 days

0

0070

Snapper 880640

DUST COVER, LH
(Superseded to 880640YP)

$22.99

$

In Stock, only 1 left!

0

0080

Snapper 880225

GEAR, Wheel
(Superseded to 880225YP)

$7.49

$

Usually ships in 2-12 days

0

0090

Snapper 880266

SCREW, 1/4-15 x 1" Hi-Lo Thread, Hex Head
(Superseded to 880266YP)

$3.49

$

In Stock, only 1 left!

0
