ERDV 19675 (881250) - Snapper 19" Walk-Behind Mower Handle Assembly Parts Diagram

19" Walk-Behind Mower

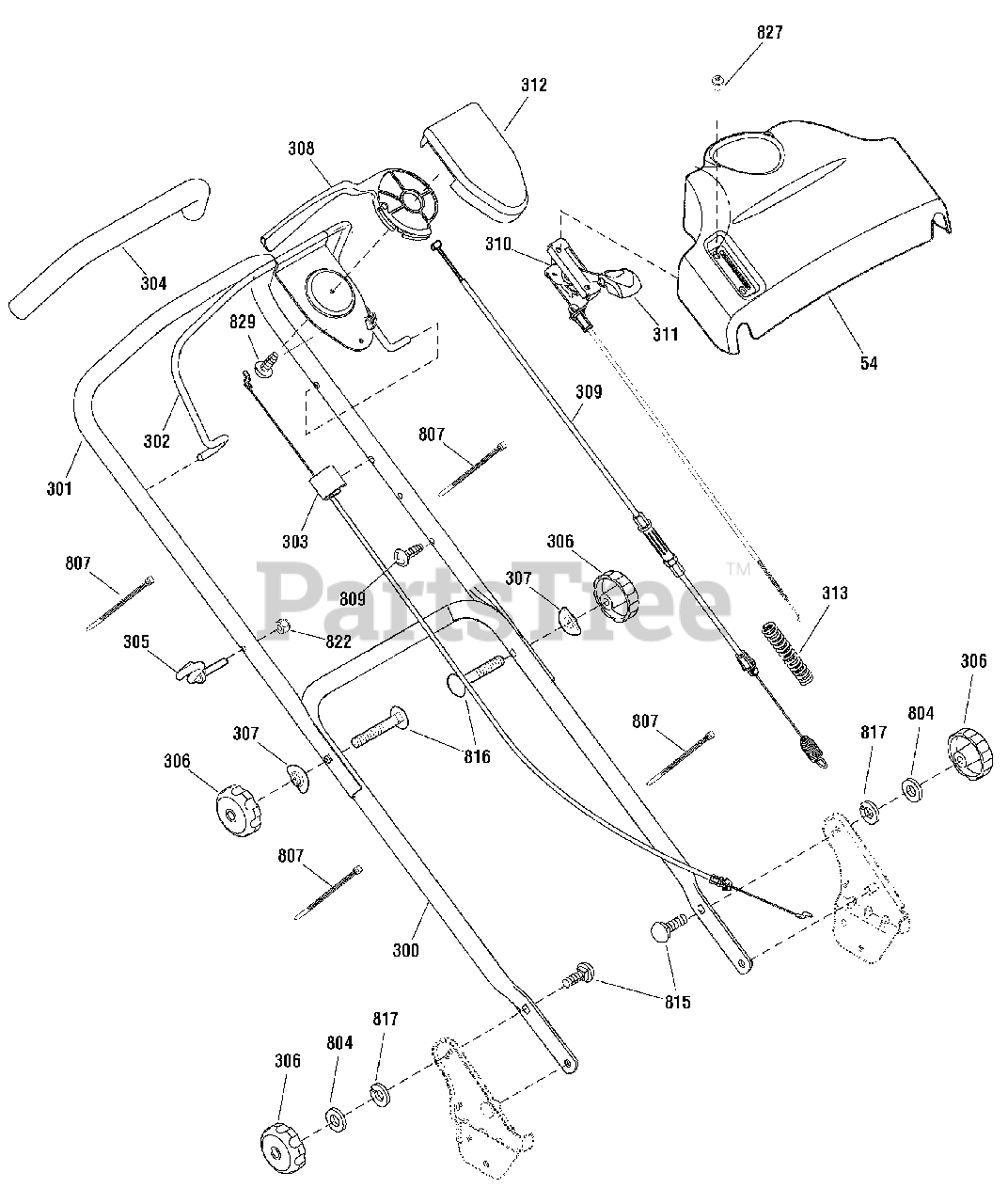

Handle Assembly Parts Diagram

  • Title

54

Snapper 880635

CONTROL PANEL
(Superseded to 880635YP)

$51.99

$

Usually ships in 2-12 days

0

300

Snapper 880571

HANDLE, Lower
(Superseded to 880571AYP)

$

$

Not available

301

Snapper 880673

HANDLE, Upper
(Superseded to 880673AYP)

$74.99

$

Usually ships in 2-12 days

0

302

Snapper 881068Z

LEVER, Engine Stop
(Superseded to 881854ZYP)

$43.99

$

Usually ships in 2-12 days

0

303

Snapper 880639

CABLE, Engine Stop
(Superseded to 880639YP)

$25.99

$

Usually ships in 2-12 days

0

304

Snapper 880457

TUBING, Foam
(Superseded to 880457YP)

$11.99

$

Usually ships in 2-12 days

0

305

Snapper 724994

GUIDE, Rope
(Superseded to 672510MA)

$5.99

$

Usually ships in 2-12 days

0

306

Snapper 721800

KNOB, Adjuster
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

307

Snapper 880615

WASHER, Formed
(Superseded to 880615YP)

$4.99

$

Usually ships in 2-12 days

0

308

Snapper 880329

LEVER, Drive
(Superseded to 880329YP)

$8.49

$

Usually ships in 2-12 days

0

309

Snapper 880458

CABLE ASSEMBLY, Drive
(Superseded to 880458YP)

$29.99

$

Usually ships in 2-12 days

0

311

Snapper 880652

THROTTLE CONTROL
(Superseded to 880652YP)

Note: (Used on ERDV19675)

$25.99

$

Usually ships in 2-12 days

0

310

Snapper 880669

THROTTLE CONTROL
(Superseded to 880669YP)

Note: (Used on ERDS19700)

$25.99

$

Usually ships in 2-12 days

0

311

Snapper 880653

KNOB, Throttle Control
(Superseded to 7075308YP)

$11.99

$

In Stock, only 2 left!

0

312

Snapper 880328

COVER, SP Control
(Superseded to 880328YP)

$4.99

$

Usually ships in 2-12 days

0

313

Snapper 880929

SPRING, Compression
(Superseded to 880929YP)

$3.49

$

Usually ships in 2-12 days

0

804

Snapper 880607

WASHER, 5/8
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

807

Snapper 880029

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

809

Snapper 722856

SCREW, Self Tap, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 6

0

815

Snapper 880576

BOLT, Carriage, 5/16-18 x 1-1/8
(Superseded to 880576YP)

$3.49

$

Usually ships in 2-12 days

0

816

Snapper 720055

BOLT, Carriage, 5/16-18 x 2
(Superseded to 002X77MA)

$3.99

$

In Stock, only 2 left!

0

817

Snapper 22129GP

WASHER, Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

822

Snapper 722393

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

827

Snapper 880664

SCREW, 1/4-20 x 7/8
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

829

Snapper 880070

SCREW, Hi-Lo, #10 x 1/2
(Superseded to 880070YP)

$3.49

$

Usually ships in 2-12 days

0
