ERDV 16675EX (881585) - Snapper 16" Walk-Behind Mower Handle Group Parts Diagram

16" Walk-Behind Mower

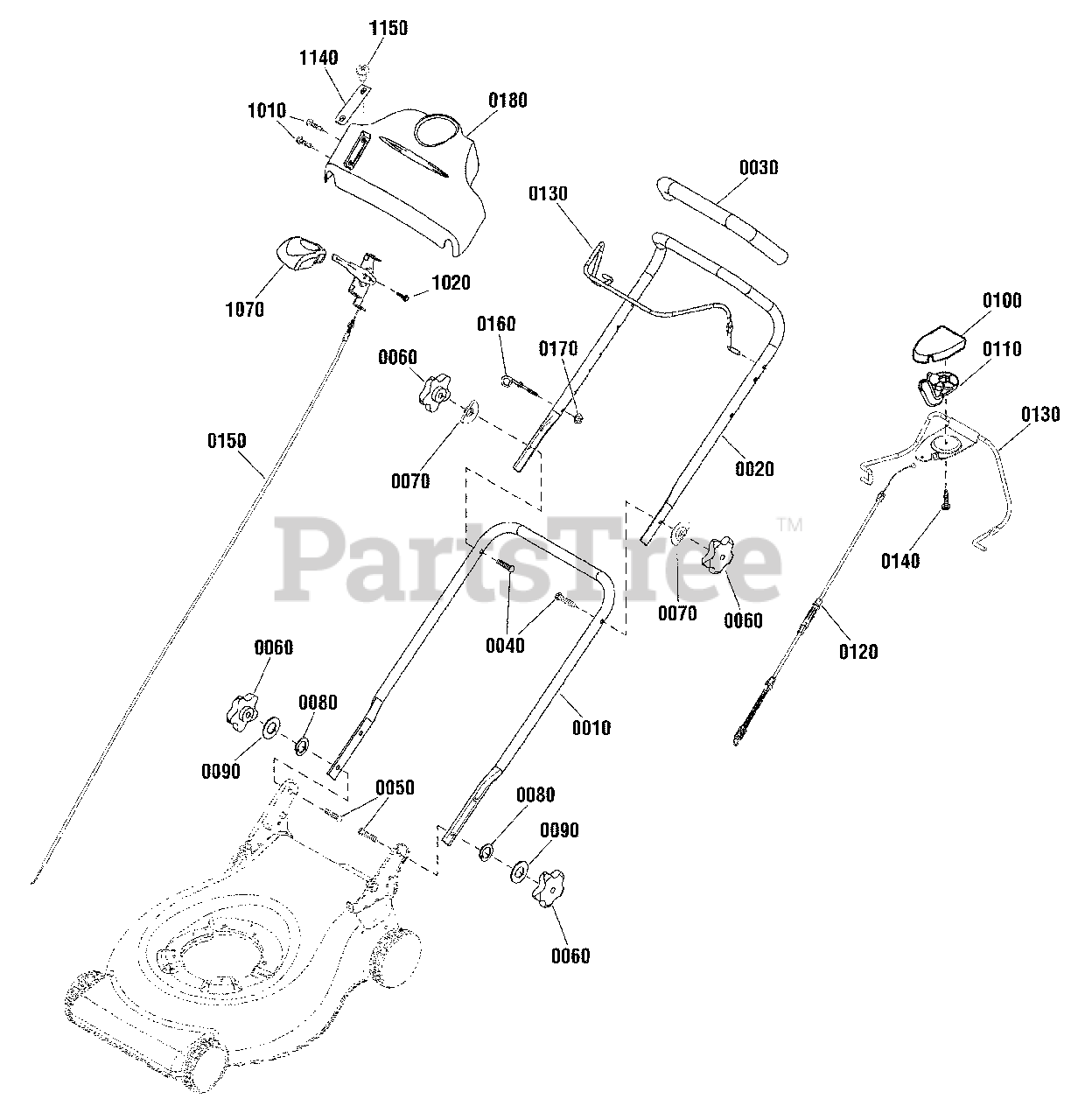

Handle Group Parts Diagram

  • Title

0010

Snapper 880608A

HANDLE, Lower
(Superseded to 880608AYP)

$52.99

$

Usually ships in 2-12 days

0

0020

Snapper 881595A

HANDLE, Upper
(Superseded to 881595AYP)

$42.99

$

Usually ships in 2-12 days

0

0030

Snapper 880730

TUBE, Foam
(Superseded to 880730YP)

$14.99

$

Usually ships in 2-12 days

0

0040

Snapper 880576

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/8
(Superseded to 880576YP)

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper 880594

BOLT, Carriage, 5/16-18 x 2
(Superseded to 880594YP)

$3.99

$

Usually ships in 2-12 days

0

0060

Snapper 7105085

KNOB, Handle
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 880615

WASHER, Formed
(Superseded to 880615YP)

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper 22129GP

WASHER, Lock, 5/16-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

0090

Snapper 880607

WASHER, Flat, .34ID .69OD
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

0100

Snapper 880328

COVER, SP Control
(Superseded to 880328YP)

Note: (Use on Self-Propelled Models)

$4.99

$

Usually ships in 2-12 days

0

0110

Snapper 880645

LEVER, SP Control
(Superseded to 880645YP)

Note: (Use on Self-Propelled Models)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 881140

CABLE, Drive
(Superseded to 881140YP)

Note: (Use on Self-Propelled Models)

$24.99

$

Usually ships in 2-12 days

0

0130

Snapper 881067Z

BAIL, Engine Stop, With Bracket
(Superseded to 881067ZYP)

Note: (Use on Self-Propelled Models)

$27.99

$

Usually ships in 2-12 days

0

0130

Snapper 880637Z

BAIL, Engine Stop
(Superseded to 880637ZYP)

Note: (Use on Push Models)

$21.99

$

Usually ships in 2-12 days

0

0140

Snapper 880070

SCREW, Hi-Lo, 1/2
(Superseded to 880070YP)

Note: (Use on Self-Propelled Models)

$3.49

$

Usually ships in 2-12 days

0

0150

Snapper 880652

THROTTLE CONTROL
(Superseded to 880652YP)

Note: (Use on Self-Propelled Models)

$25.99

$

Usually ships in 2-12 days

0

0160

Snapper 7028488

GUIDE, Rope
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

0170

Snapper 880561

NUT, Nylock, 1/4-20
(Superseded to 880561YP)

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 880633

CONTROL PANEL
(Superseded to 880633YP)

$12.99

$

Usually ships in 2-12 days

0

1010

Snapper 880819

FASTENER, Panel
(Superseded to 880819YP)

$2.99

$

Usually ships in 2-12 days

0

1020

Snapper 880664

SCREW, Pan Head, Taptite, 1/4-20 x 1/2
(Superseded to 880664YP)

Note: (Use on Self-Propelled Models)

$3.99

$

Usually ships in 2-12 days

0

1070

Snapper 7075308

KNOB, Throttle
(Superseded to 7075308YP)

Note: (Use on Self-Propelled Models)

$11.99

$

In Stock, only 2 left!

0

1140

Snapper 881236

COVER, Throttle
(Superseded to 881236YP)

Note: (Use on Push Models)

$2.99

$

Usually ships in 2-12 days

0

1150

Snapper 722851

SCREW, 1/4-14 x 3/8
(Superseded to 26X229MA)

Note: (Use on Push Models)

$4.49

$

In Stock, only 1 left!

0
