ERDS 19700 (880611X120N) - Snapper 19" Walk-Behind Mower Deck & Engine Group Parts Diagram

19" Walk-Behind Mower

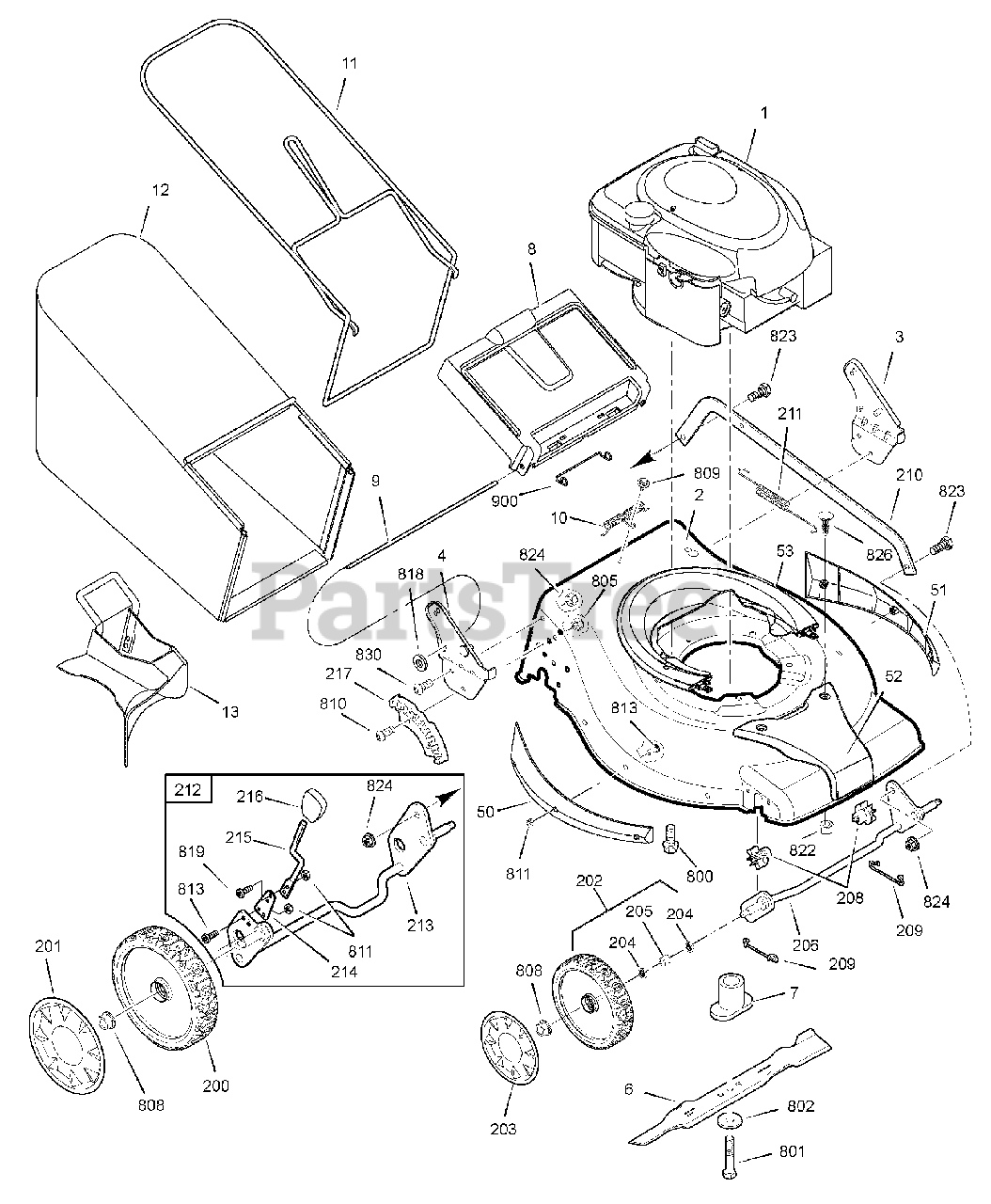

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 100602-2137-B8

* ENGINE, B&S 700 Series DOV, EU

$

$

Currently unavailable

2

Snapper 880863

MOWER HOUSING

$

$

Currently unavailable

3

Snapper 700176

BRACKET ASSEMBLY, Left Handle
(Superseded to 700176YP)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 700177

BRACKET ASSEMBLY, Right Handle
(Superseded to 700177YP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 880638

BLADE, 19"
(Superseded to 880638BZYP)

$26.99

$

In Stock, only 1 left!

0

7

Snapper 700214

BLADE ADAPTER ASSEMBLY
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

8

Snapper 700099

DOOR, Rear
(Superseded to 700099YP)

$22.99

$

Usually ships in 2-12 days

0

9

Snapper 700095

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 700001

SPRING, Torsion Rear Door
(Superseded to 700001YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 700262

FRAME ASSEMBLY
(Superseded to 700262YP)

$76.99

$

Usually ships in 2-12 days

0

12

Snapper 700261

BAG ASSEMBLY
(Superseded to 700261YP)

$91.99

$

Usually ships in 2-12 days

0

13

Snapper 880913

MULCH PLUG

$

$

Currently unavailable

50

Snapper 700106

SIDE GUARD, Right
(Superseded to 700106YP)

$7.99

$

Usually ships in 2-12 days

0

51

Snapper 700105

SIDE GUARD, Left
(Superseded to 700105YP)

$7.99

$

Usually ships in 2-12 days

0

52

Snapper 700179

HOUSING COVER, Front
(Superseded to 880667YP)

$9.49

$

Usually ships in 2-12 days

0

53

Snapper 700180

HOUSING COVER, Rear
(Superseded to 700180YP)

$12.99

$

Usually ships in 2-12 days

0

200

Snapper 700252

WHEEL, Rear
(Superseded to 880194YP)

$

$

Not available

201

Snapper 700174

HUBCAP, Rear
(Superseded to 880657YP)

$13.99

$

Usually ships in 2-12 days

0

202

Snapper 700211

WHEEL, Front, Complete
(Superseded to 880718YP)

Note: (Includes Ref. Nos. 204 & 205)

$56.99

$

In Stock, only 1 left!

0

203

Snapper 700173

HUBCAP, Front
(Superseded to 880656YP)

$14.99

$

Usually ships in 2-12 days

0

204

WHEEL BEARING (Not Available)

$

$

Not available

205

SPACER (Not Available)

$

$

Not available

206

Snapper 700061

CROSSBAR ASSEMBLY, Front
(Superseded to 880053YP)

$48.99

$

Usually ships in 2-12 days

0

208

Snapper 700059

BUSHING, Front Crossbar
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

209

Snapper 700071

SPRING, Clip Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

210

Snapper 700212

LINK, Single Lever
(Superseded to 700212YP)

$42.99

$

Usually ships in 2-12 days

0

211

Snapper 700073

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

212

CROSSBAR ASSEMBLY, Rear (Not Available)

$

$

Not available

213

Snapper 880829BI

REAR CROSSBAR

$

$

Currently unavailable

214

Snapper 700164

SPRING, Adjuster
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

215

Snapper 700243

LEVER, Height Adjustment
(Superseded to 880540YP)

$7.99

$

Usually ships in 2-12 days

0

216

Snapper 700108

KNOB, Adjuster
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

217

Snapper 700118

BRACKET, Height Adjuster
(Superseded to 700118YP)

$7.49

$

Usually ships in 2-12 days

0

800

Snapper 720044

SCREW, Hex Head, 3/8-16 x 1
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

801

Snapper 700011

BOLT, Blade, 3/8-24 x 2
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

802

Snapper 721890

WASHER, Belleville
(Superseded to 1101989MA)

$5.49

$

Usually ships in 2-12 days

0

805

Snapper 700002

NUT, Nylock, M8 x 1-1/4
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

808

Snapper 720142

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

809

Snapper 722856

SCREW, Self Tap, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 6

0

810

Snapper 700081

BOLT, Hex Key Head
(Superseded to 880323YP)

$3.99

$

In Stock, only 4 left!

0

811

Snapper 700103

NUT, Nylock
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

813

Snapper 700122

SCREW, Torx Head, M5 x .8 x 14mm
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

818

Snapper 700156

NUT, Speed
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

819

Snapper 700218

SCREW, Torx Head, M5 x .8 x 12.5mm
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

822

Snapper 722393

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

823

Snapper 700247

BOLT, Shoulder, 5/16-18 x 1
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

824

Snapper 720145

Nut, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

826

Snapper 700248

SCREW, 1/4-20 x 7/8
(Superseded to 880456YP)

$3.49

$

Usually ships in 2-12 days

0

830

Snapper 727291

SCREW , 5/16-18 x 3/4
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

900

Snapper 880910

SPRING CLIP, Rear Door

$

$

Currently unavailable

1000

Snapper 700277

DECAL KIT
(Superseded to 700277YP)

$24.99

$

Usually ships in 2-12 days

0

1001

Snapper 700284

HOSE

$146.99

$

Usually ships in 2-12 days

0
