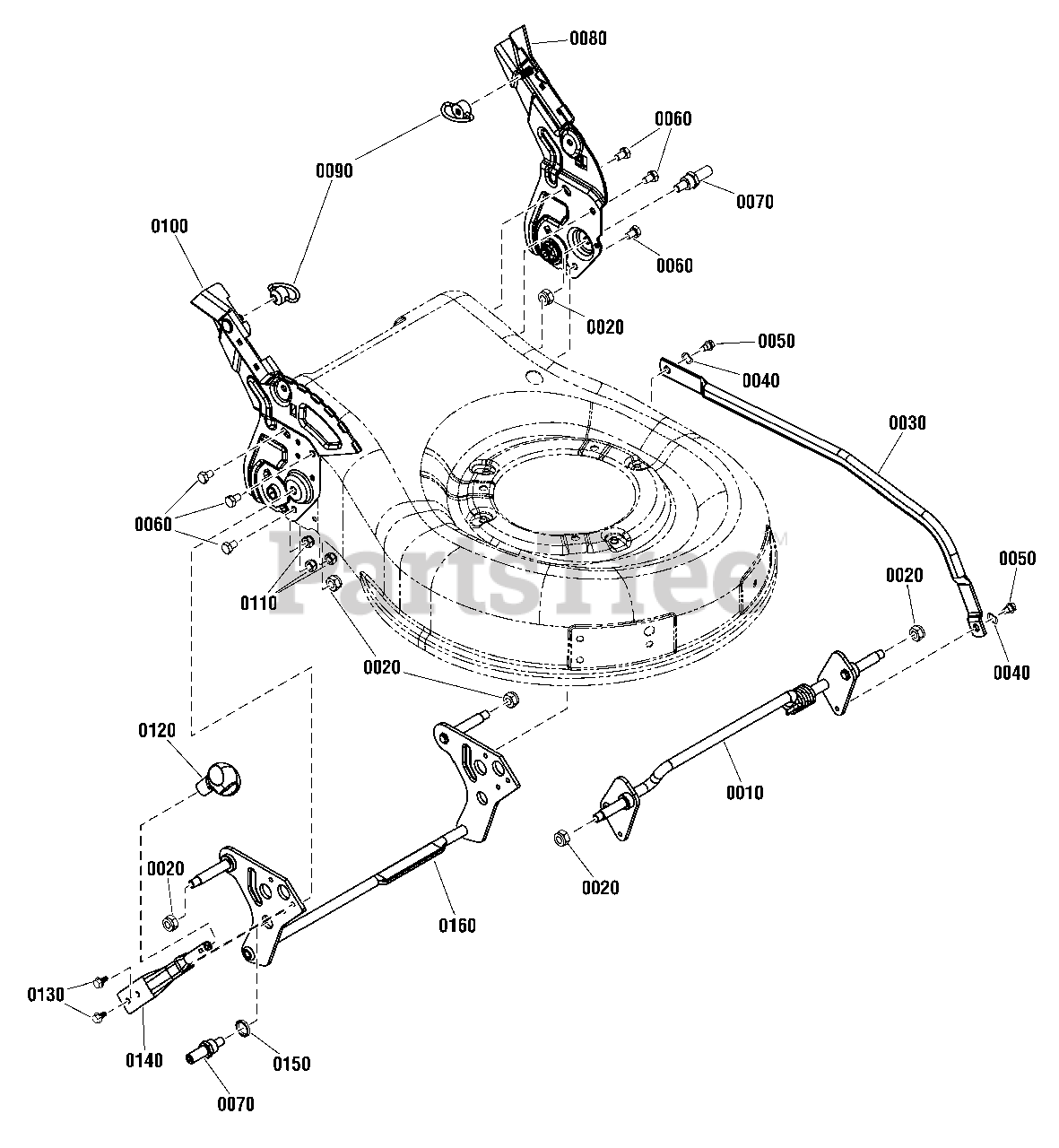

ERDS 19675HW (1696372-00) - Snapper 19" Walk-Behind Mower Lift Group Parts Diagram

19" Walk-Behind Mower

Lift Group Parts Diagram

  • Title
0010

Snapper 703610

CROSSBAR ASSEMBLY, Front

$

$

Currently unavailable

0020

Snapper 703633

NUT, M10 x 1.25

$

$

Currently unavailable

0030

Snapper 703744

LINK, Single Lever

$

$

Currently unavailable

0040

Snapper 703712

WASHER, Wave

$

$

Currently unavailable

0050

Snapper 703521

BOLT, Shoulder, 1/4-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0

0060

Snapper 703627

SCREW, M8 x 12

$

$

Currently unavailable

0070

Snapper 703632

SHAFT, Rear Axle Pivot

$

$

Currently unavailable

0080

Snapper 703614

BRACKET ASSEMBLY, LH

$

$

Currently unavailable

0090

Snapper 703634

NUT, Wing, 3/8-16

$

$

Currently unavailable

0100

Snapper 703617

BRACKET ASSEMBLY, RH

$

$

Currently unavailable

0110

Snapper 703635

NUT, M8 DIN 985

$

$

Currently unavailable

0120

Snapper 703648

KNOB, Adjuster

$

$

Currently unavailable

0130

Snapper 703698

LEVER, Height Adjustment

$

$

Currently unavailable

0140

Snapper 7091084YP

SCREW, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0150

$

$

Currently unavailable

0160

Snapper 703611

CROSSBAR ASSEMBLY, Rear

$

$

Currently unavailable
