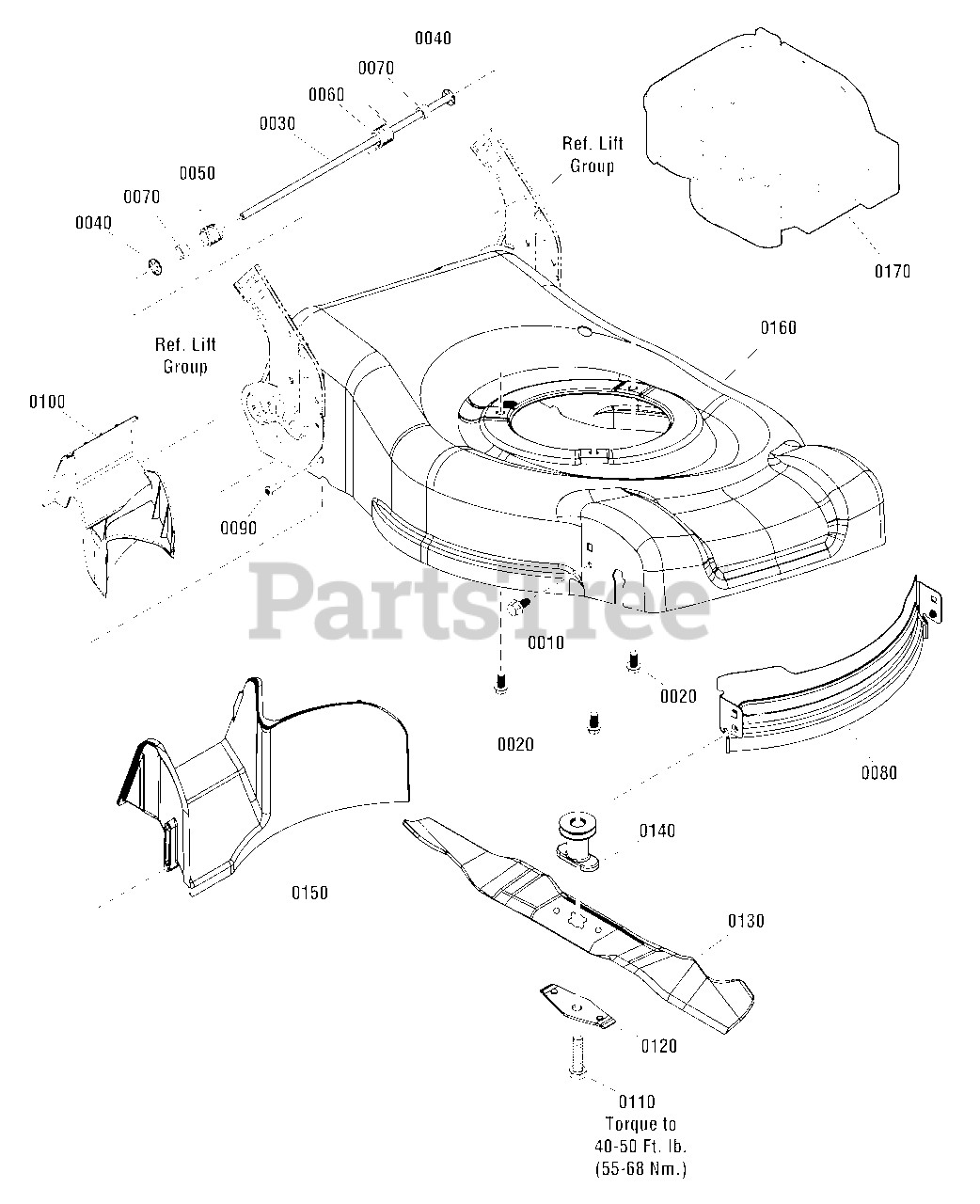

ERDP 18550HW (1696371-00) - Snapper 18" Walk-Behind Mower Deck & Engine Group Parts Diagram

18" Walk-Behind Mower

Deck & Engine Group Parts Diagram

  • Title
0010

Snapper 703619

SCREW, M6 x 1 x 12

$

$

Currently unavailable

0020

Snapper 703625

SCREW, 3/8-16 x 1

$

$

Currently unavailable

0030

Snapper 703631

ROD, Rear Door

$

$

Currently unavailable

0040

Snapper 703649

RETAINER

$

$

Currently unavailable

0050

Snapper 703701

SPRING, Torsion Rear Door, Right

$

$

Currently unavailable

0060

Snapper 703702

SPRING, Torsion Rear Door, Left

$

$

Currently unavailable

0070

Snapper 703752

SPACER, 8.4 x 14 x 10.2

$

$

Currently unavailable

0080

Snapper 703769

BAFFLE, Front

$

$

Currently unavailable

0090

Snapper 703622

SCREW, M6 x 16

$

$

Currently unavailable

0100

Snapper 703657

MULCH PLUG

$

$

Currently unavailable

0110

Snapper 01X142MA

SCREW, 3/8-24 x 1-1/2

$8.49

$

In Stock, only 2 left!

0

0120

Snapper 703520

BLADE WASHER

$11.99

$

In Stock, only 1 left!

0

0130

Snapper 703718

BLADE, 46cm

$

$

Currently unavailable

0140

Snapper 703618

BLADE ADAPTER ASSEMBLY

$

$

Currently unavailable

0150

Snapper 703654

BAFFLE, Rear

$

$

Currently unavailable

0160

Snapper 703775

MOWER HOUSING, Red

$

$

Currently unavailable

0170

Snapper 09P702-0021-H1

* ENGINE, Briggs & Stratton 550 E Series, Model 09P702-0021-H1

$

$

Currently unavailable
