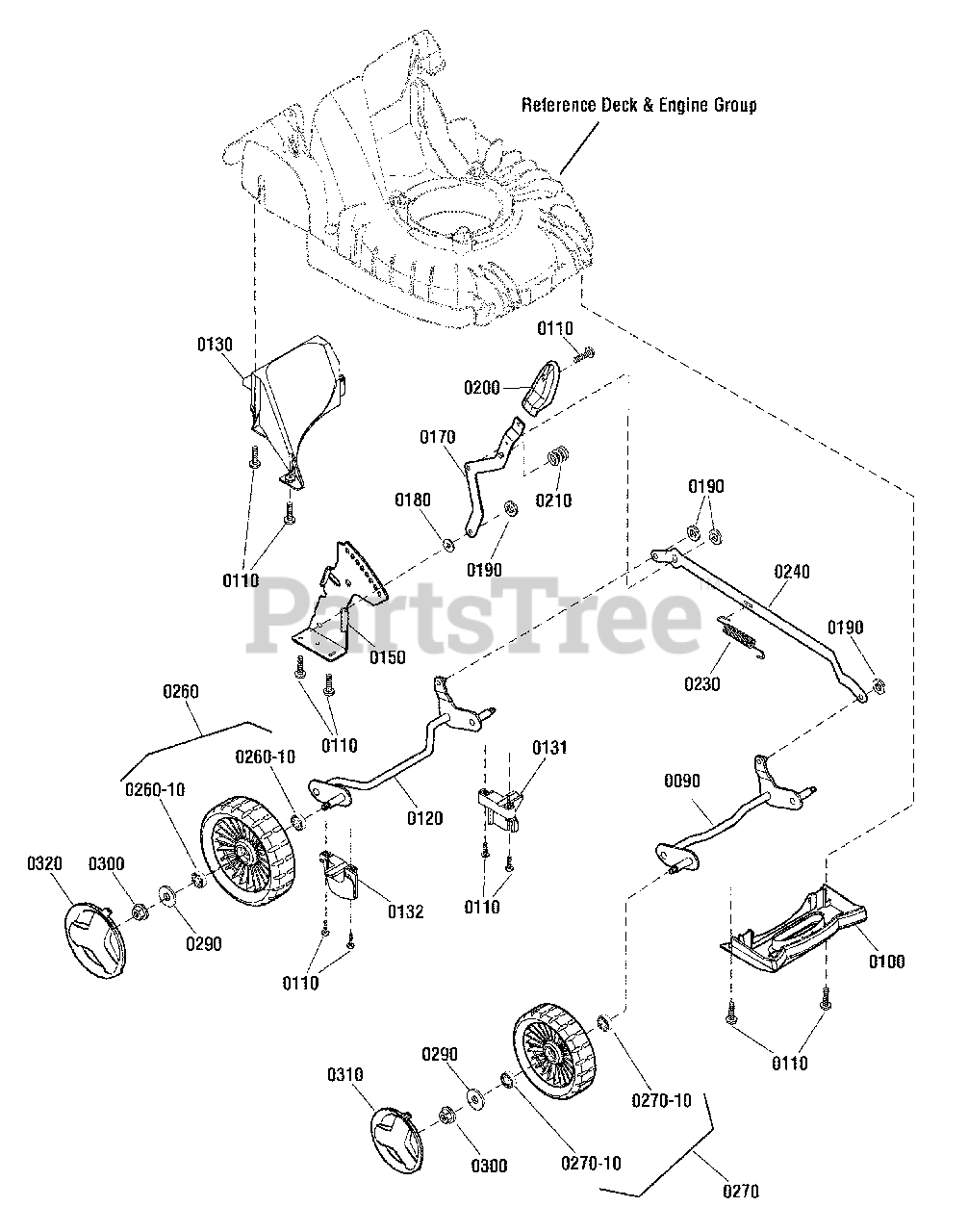

ERDP 17550 (884211) - Snapper 17" Walk-Behind Mower, 5hp Wheels & Axles Group - Push Parts Diagram

17" Walk-Behind Mower, 5hp

Wheels & Axles Group - Push Parts Diagram

  • Title
0090

Snapper 884017YP

AXLE, Front

$

$

Currently unavailable

0100

$

$

Currently unavailable

0110

Snapper 884035YP

SCREW, PT Thread Forming, Metric

$

$

Currently unavailable

0130

$

$

Currently unavailable

0120

Snapper 884018YP

AXLE, Rear

$

$

Currently unavailable

0131

Snapper 884102YP

AXLE TRAP, L.H., Black

$

$

Currently unavailable

0132

Snapper 884103YP

AXLE TRAP, R.H., Black

$

$

Currently unavailable

0150

Snapper 884009YP

INDEX PLATE

$

$

Currently unavailable

0170

$

$

Currently unavailable

0180

Snapper 884053YP

WASHER, Flat, M8 x 16mm

$

$

Currently unavailable

0190

Snapper 884037YP

WASHER, Star Lock, 8mm

$

$

Currently unavailable

0200

Snapper 884092YP

LEVER CAP, Red

$

$

Currently unavailable

0210

Snapper 884014YP

SPRING, Lever Cap

$

$

Currently unavailable

0230

Snapper 884015YP

SPRING, Compensator

$

$

Currently unavailable

0240

Snapper 884113YP

LIFTER LINK, Silver

$

$

Currently unavailable

0260

Snapper 884106YP

WHEEL, Rear (No Bearing)

Note: (Used on ERDP17500)

$

$

Currently unavailable

0260

Snapper 884215YP

WHEEL, Rear (With Bearing)

Note: (Used on ERDP17550) (Includes Ref. 0260-10)

$

$

Currently unavailable

0260-10

Snapper 884254YP

BEARING, Wheel

Note: (Used on ERDP17550)

$

$

Currently unavailable

0270

Snapper 884107YP

WHEEL, Front (No Bearing

Note: (Used on ERDP17500)

$

$

Currently unavailable

0270

Snapper 884216YP

WHEEL, Front (With Bearing)

Note: (Used on ERDP17550) (Includes Ref. 0270-10)

$

$

Currently unavailable

0270-10

Snapper 884254YP

BEARING, Wheel

Note: (Used on ERDP17550)

$

$

Currently unavailable

0290

Snapper 884121YP

WASHER, Flat, M8 X 24mm

$

$

Currently unavailable

0300

Snapper 49820YP

NUT, Nylock, M8-1-1/4

$

$

Not available

0310

Snapper 884111YP

TRIM, Wheel, Front, Silver

$

$

Currently unavailable

0320

Snapper 884109YP

TRIM, Wheel, Rear, Silver

$

$

Currently unavailable
