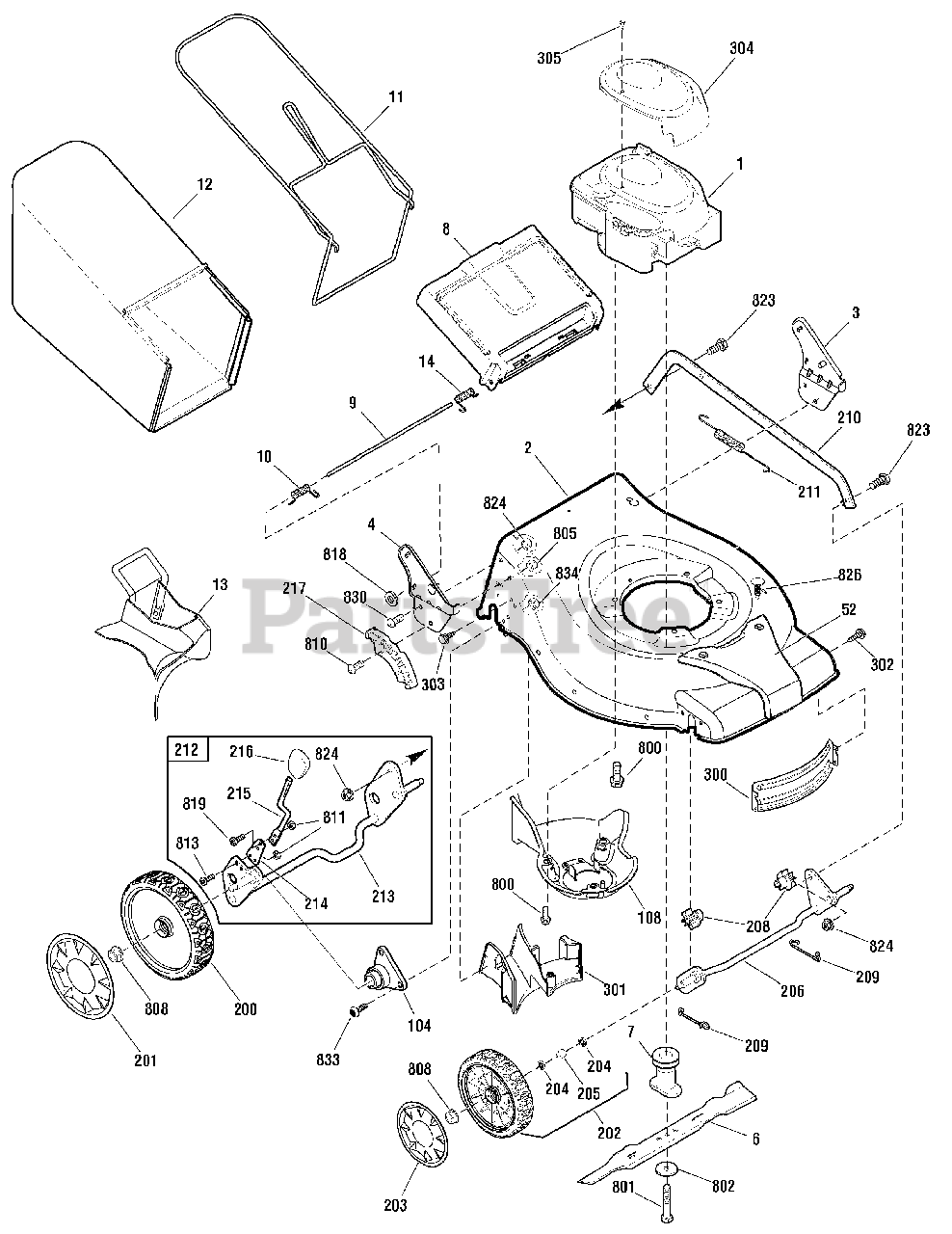

ERDP 16675 (881033) - Snapper 16" Walk-Behind Mower Deck & Engine Group Parts Diagram

16" Walk-Behind Mower

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 126T02-0275-B1

* ENGINE, B&S 550 Series EU

$

$

Not available

2

Snapper 881121D

MOWER HOUSING
(Superseded to 881121DYP)

$444.99

$

Usually ships in 2-12 days

0

3

Snapper 880951A

BRACKET ASSEMBLY, Left Handle
(Superseded to 880951AYP)

$20.99

$

Usually ships in 2-12 days

0

4

Snapper 880950A

BRACKET ASSEMBLY, Right Handle
(Superseded to 880950AYP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 881076

BLADE, 16"
(Superseded to 881076BZYP)

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 880009

BLADE ADAPTER ASSEMBLY
(Superseded to 880009YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 880661

DOOR, Rear
(Superseded to 880661YP)

$30.99

$

Usually ships in 2-12 days

0

9

Snapper 880213

ROD, Rear Door
(Superseded to 880213YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 880942

SPRING, Torsion Rear Door, Right
(Superseded to 880942YP)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 880944Z

FRAME ASSEMBLY
(Superseded to 880944ZYP)

$77.99

$

Usually ships in 2-12 days

0

12

Snapper 880947

BAG ASSEMBLY
(Superseded to 880947YP)

$67.99

$

Usually ships in 2-12 days

0

13

Snapper 880914

MULCH PLUG
(Superseded to 880914YP)

$50.99

$

Usually ships in 2-12 days

0

14

Snapper 880943

SPRING, Torsion Rear Door, Left
(Superseded to 880943YP)

$4.49

$

Usually ships in 2-12 days

0

52

Snapper 880649

HOUSING COVER, Front
(Superseded to 880649YP)

$11.99

$

Usually ships in 2-12 days

0

104

Snapper 880786

SLEEVE ASSEMBLY, Rear Axle
(Superseded to 880786YP)

$7.99

$

Usually ships in 2-12 days

0

108

Snapper 880796

BELT COVER ASSEMBLY
(Superseded to 880796YP)

$22.99

$

Usually ships in 2-12 days

0

200

Snapper 880709

WHEEL, Rear
(Superseded to 880709YP)

$40.99

$

In Stock, only 1 left!

0

201

Snapper 880657

HUBCAP, Rear
(Superseded to 880657YP)

$13.99

$

Usually ships in 2-12 days

0

202

Snapper 880718

WHEEL, Front, Complete
(Superseded to 880718YP)

Note: (Includes Ref. Nos. 204 & 205)

$56.99

$

In Stock, only 1 left!

0

203

Snapper 880656

HUBCAP, Front
(Superseded to 880656YP)

$14.99

$

Usually ships in 2-12 days

0

204

WHEEL BEARING (Not Available)

$

$

Not available

205

SPACER (Not Available)

$

$

Not available

206

Snapper 880459

CROSSBAR ASSEMBLY, Front
(Superseded to 880459YP)

$35.99

$

Usually ships in 2-12 days

0

208

Snapper 880050

BUSHING, Front Crossbar
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

209

Snapper 881163

SPRING, Clip Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

210

Snapper 880790D

LINK, Single Lever

$

$

Currently unavailable

211

Snapper 880052

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

212

CROSSBAR ASSEMBLY, Rear (Not Available)

$

$

Not available

213

Snapper 880873BI

REAR CROSSBAR
(Superseded to 880873BMYP)

$63.99

$

Usually ships in 2-12 days

0

214

Snapper 880642

SPRING, Adjuster
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

215

Snapper 880646

LEVER, Height Adjustment
(Superseded to 880540YP)

$7.99

$

Usually ships in 2-12 days

0

216

Snapper 880325

KNOB, Adjuster
(Superseded to 880325YP)

$5.99

$

Usually ships in 2-12 days

0

217

Snapper 880960

BRACKET, Height Adjuster
(Superseded to 880960YP)

$16.99

$

Usually ships in 2-12 days

0

300

Snapper 880794

BAFFLE, Front

$

$

Not available

301

Snapper 880793

BAFFLE, Rear
(Superseded to 880793YP)

$41.99

$

Usually ships in 2-12 days

0

302

Snapper 880664

SCREW, 1/4-20 x 1/2
(Superseded to 880664YP)

$3.99

$

Usually ships in 2-12 days

0

303

Snapper 880804

SCREW, 1/4-15 x 5/8
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

304

Snapper 795171

SHROUD, With Label

$

$

Currently unavailable

305

Snapper 94696

SCREW, Pan Head
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

800

Snapper 720044

SCREW, Hex Head, 3/8-16 x 1
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

801

Snapper 700011

BOLT, Blade, 3/8-24 x 2
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

802

Snapper 721890

WASHER, Belleville
(Superseded to 1101989MA)

$5.49

$

Usually ships in 2-12 days

0

805

Snapper 880020

NUT, Nylock, M8 x 1-1/4
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

808

Snapper 720142

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

810

Snapper 880323

BOLT, Hex Key Head
(Superseded to 880323YP)

$3.99

$

In Stock, only 4 left!

0

811

Snapper 880428

NUT, Nylock
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

813

Snapper 880339

SCREW, Torx Head, M5 x .8 x 14mm
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

818

Snapper 7091020

PUSHNUT, 1/4
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

819

Snapper 880577

SCREW, Torx Head, M5 x .8 x 12.5mm
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

823

Snapper 880651

BOLT, Shoulder, 5/16-18 x 1
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

824

Snapper 720145

Nut, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

826

Snapper 880456

SCREW, 1/4-20 x 7/8
(Superseded to 880456YP)

$3.49

$

Usually ships in 2-12 days

0

830

Snapper 727291

SCREW , 5/16-18 x 3/4
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

833

Snapper 880845

SCREW, Torx, 1/4-20 x 5/8
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

834

Snapper 880859

NUT, Flange Lock, 1/4-20
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0

1000

Snapper 700276

DECAL KIT (not shown)

$

$

Not available
