ERDP 16575EX (881584) - Snapper 16" Walk-Behind Mower Engine Group Parts Diagram

16" Walk-Behind Mower

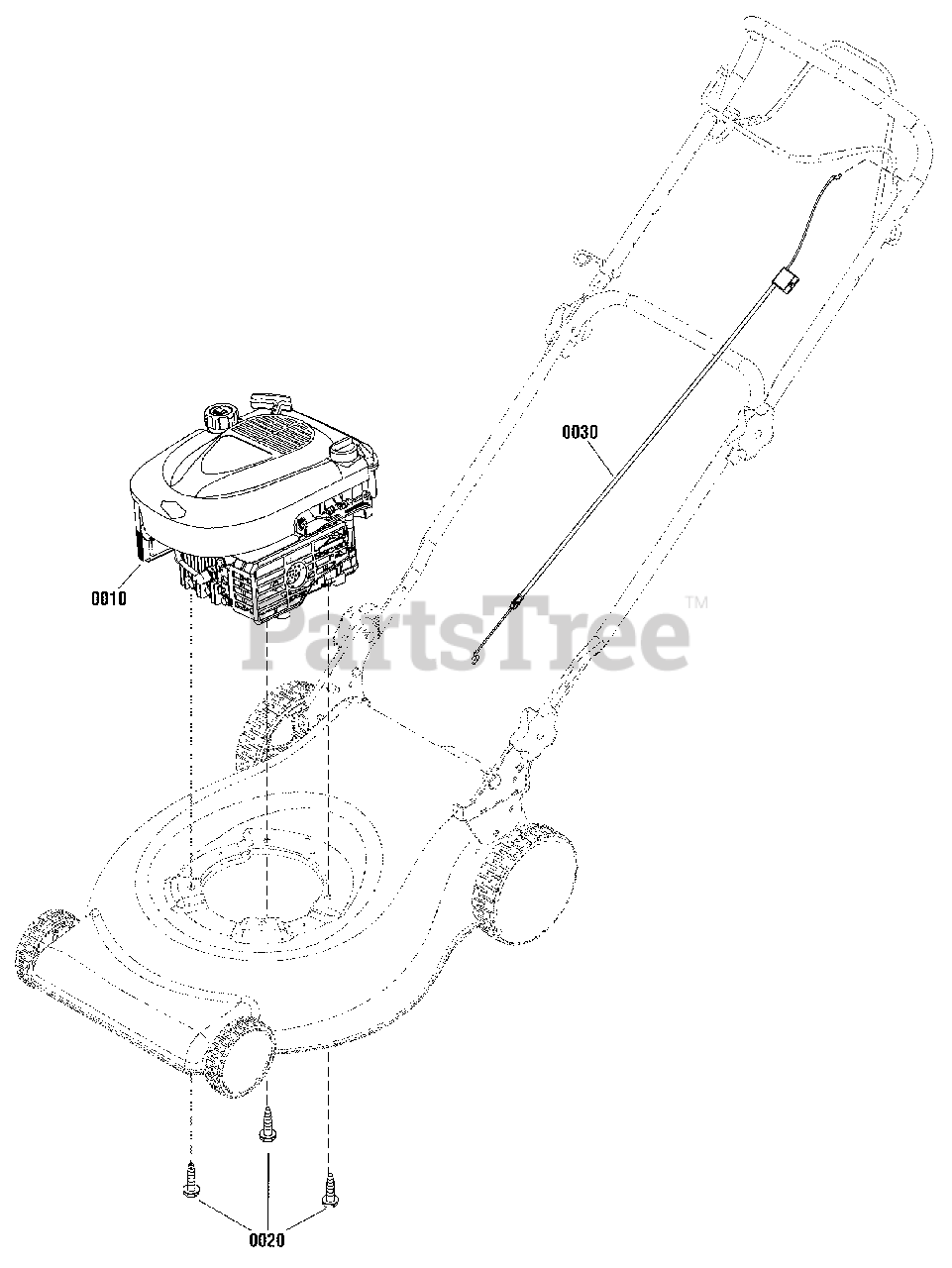

Engine Group Parts Diagram

  • Title

0010

Snapper 09P702-0032-H1

* ENGINE, Briggs & Stratton 575EX Series

Note: (Engine Model: 09P702-0032-H1)

$

$

Currently unavailable

0010

Snapper 126T02-6275-H1

* ENGINE, Briggs & Stratton 675 Series

Note: (Engine Model: 126T02-6275-H1)

$

$

Not available

0020

Snapper 7090324

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 880279

CABLE, Engine Stop, Push
(Superseded to 880279YP)

Note: (Use on 575EX Series)

$18.99

$

In Stock, only 1 left!

0

0030

Snapper 880639

CABLE, Engine Stop, Self Propelled
(Superseded to 880639YP)

Note: (Use on 675 Series)

$25.99

$

Usually ships in 2-12 days

0
