ERDP 16550 (880746X120N) - Snapper 16" Walk-Behind Mower Handle Assembly Parts Diagram

16" Walk-Behind Mower

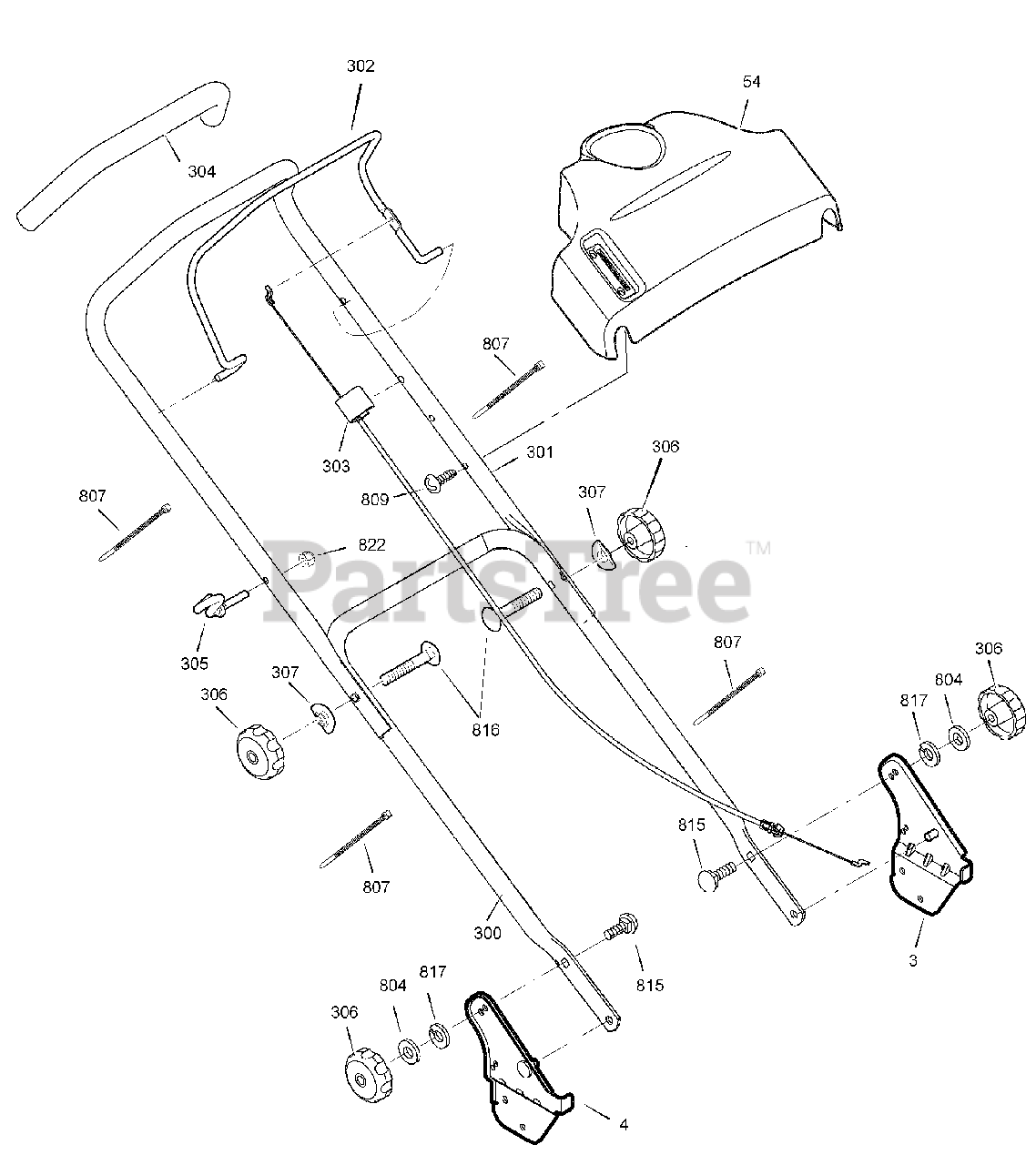

Handle Assembly Parts Diagram

  • Title

3

Snapper 700176

BRACKET ASSEMBLY, Left Handle
(Superseded to 700176YP)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 700177

BRACKET ASSEMBLY, Right Handle
(Superseded to 700177YP)

$20.99

$

Usually ships in 2-12 days

0

54

Snapper 700160

CONTROL PANEL
(Superseded to 880633YP)

$12.99

$

Usually ships in 2-12 days

0

300

Snapper 700143

HANDLE, Lower
(Superseded to 880608AYP)

$52.99

$

Usually ships in 2-12 days

0

301

Snapper 700185

HANDLE, Upper
(Superseded to 880674AYP)

$42.99

$

Usually ships in 2-12 days

0

302

Snapper 700139

LEVER, Engine Stop
(Superseded to 700139YP)

$16.99

$

Usually ships in 2-12 days

0

303

Snapper 700158

CABLE, Engine Stop
(Superseded to 880279YP)

$18.99

$

Usually ships in 2-12 days

0

304

Snapper 700245

TUBING, Foam
(Superseded to 880730YP)

$14.99

$

Usually ships in 2-12 days

0

305

Snapper 724994

GUIDE, Rope
(Superseded to 672510MA)

$5.99

$

Usually ships in 2-12 days

0

306

Snapper 721800

KNOB, Adjuster
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

307

Snapper 700148

WASHER, Formed
(Superseded to 880615YP)

$4.99

$

Usually ships in 2-12 days

0

804

Snapper 700150

WASHER, 5/8
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

807

Snapper 700010

CABLE TIE
(Superseded to 880029YP)

$3.99

$

Usually ships in 2-12 days

0

815

Snapper 700146

BOLT, Carriage, 5/16-18 x 1-1/8
(Superseded to 880576YP)

$3.49

$

Usually ships in 2-12 days

0

809

Snapper 722856

SCREW, Self Tap, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 6

0

816

Snapper 720055

BOLT, Carriage, 5/16-18 x 2
(Superseded to 002X77MA)

$3.99

$

In Stock, only 2 left!

0

817

Snapper 700078

WASHER, Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

822

Snapper 722393

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
