ERA (884067) - Nexus 44cm Walk-Behind Mower, Canada (2010) Deck & Engine Group Parts Diagram

44cm Walk-Behind Mower, Canada

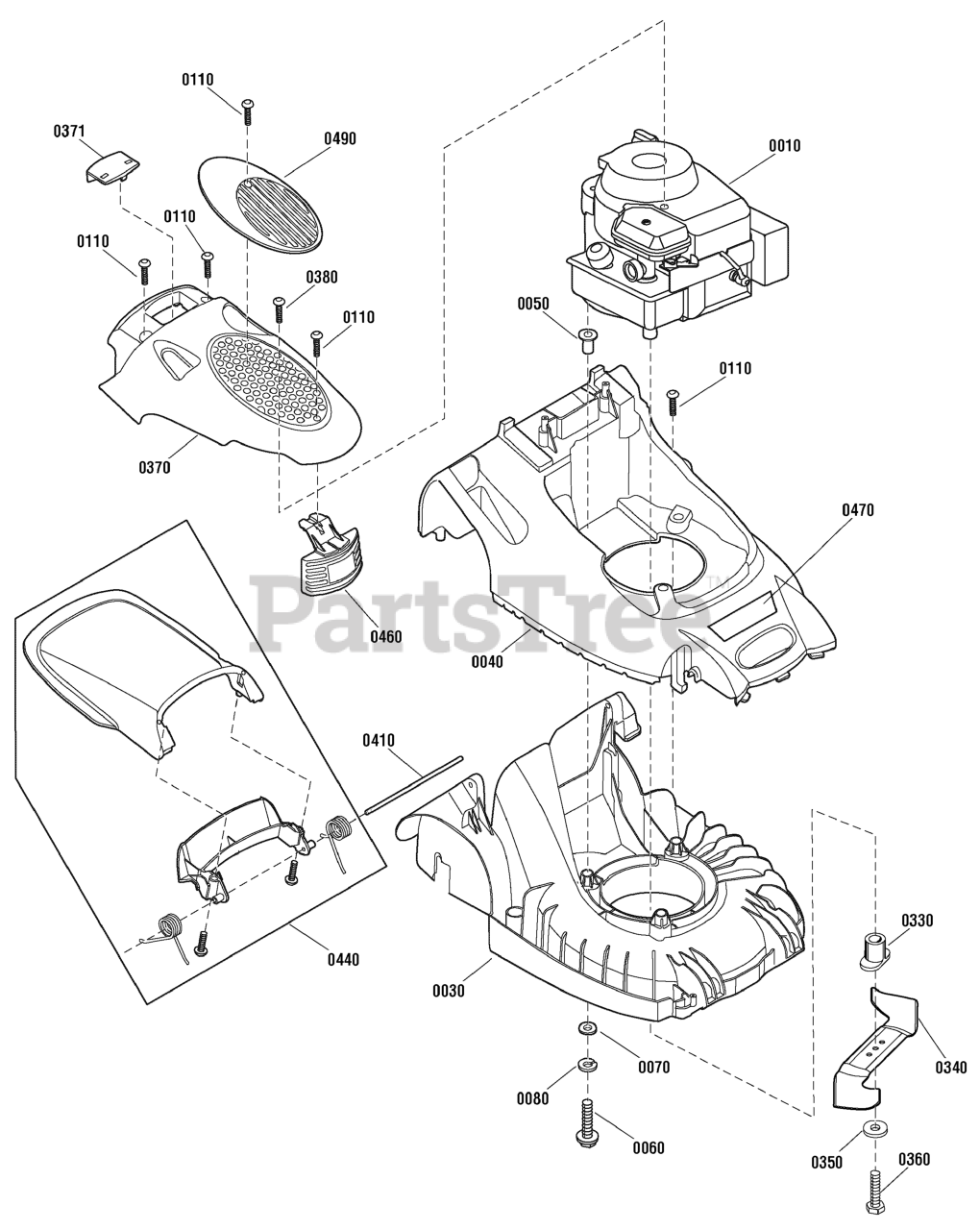

Deck & Engine Group Parts Diagram

  • Title

0010

Murray 10T802-0156-B1

* ENGINE, Briggs & Stratton

$

$

Currently unavailable

0030

Murray 884099YP

CHASSIS

$

$

Currently unavailable

0040

Murray 884096YP

DECK, Graphite

$

$

Currently unavailable

0050

Murray 884008YP

SLEEVE, Engine Bolt

$

$

Currently unavailable

0060

Murray 884032YP

BOLT, Engine

$

$

Currently unavailable

0070

Murray 884033YP

WASHER, Flat, M10 x 20mm

$

$

Currently unavailable

0080

Murray 46526YP

WASHER, Lock, M10

$

$

Currently unavailable

0110

Murray 884035YP

SCREW, PT Thread Forming, Metric

$

$

Currently unavailable

0330

Murray 700214

ADAPTER, Blade, Self Propelled
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

0340

Murray 884020YP

BLADE

$

$

Currently unavailable

0350

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

0360

Murray 700011

BOLT, Blade
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

0370

Murray 884163YP

COVER, Engine, Green

$

$

Currently unavailable

0371

Murray 884179YP

COVER, Black

$

$

Currently unavailable

0380

Murray 884123YP

SCREW, PzPHd, #10-32UNF-2A x 1/2

$

$

Currently unavailable

0410

Murray 884012YP

AXLE, Lid

$

$

Currently unavailable

0440

Murray 884197YP

LID KIT, Green

$

$

Currently unavailable

0460

Murray 884081YP

BADGE

$

$

Currently unavailable

0490

Murray 884083YP

VENT CAP, Silver

$

$

Currently unavailable

0470

Murray 884043YP

DECAL, Brand, Nexus ERA

$

$

Currently unavailable

--

Murray 884196YP

KIT, Decals

$

$

Currently unavailable

--

Murray 884199YP

KIT, Hardware

$

$

Currently unavailable

--

Murray 884058

MANUAL, Instruction

Note: (Not Illustrated)

$

$

Currently unavailable
