ER400 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1175814 - GE300-2147285) CRANKSHAFT + PISTON + RINGS Parts Diagram

Generator, Made in Japan

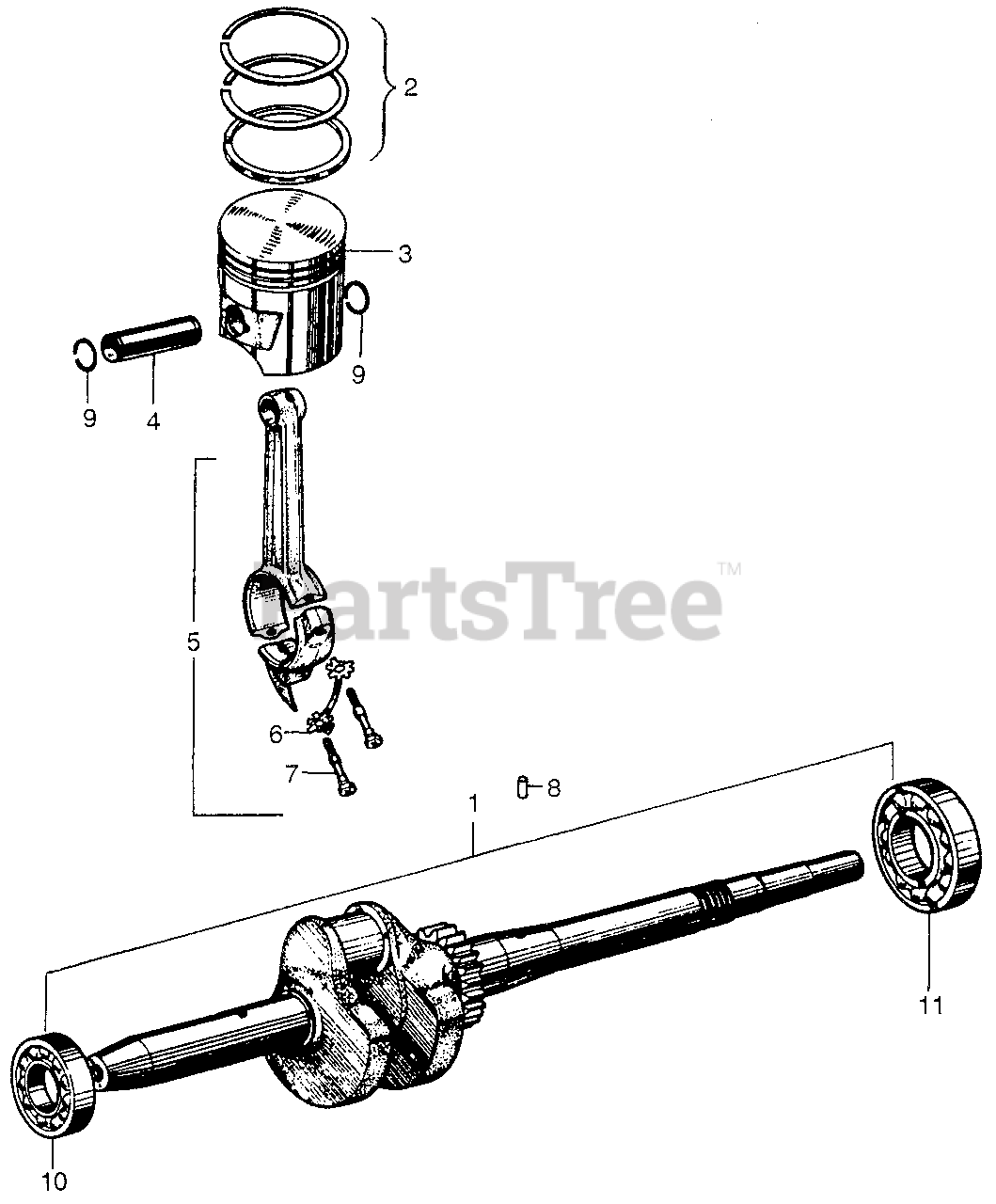

CRANKSHAFT + PISTON + RINGS Parts Diagram

  • Title

1

Honda 13000-836-000

CRANKSHAFT ASSY.

$372.99

$

Usually ships in 3-6 days

0

2

Honda 13010-002-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$

$

Currently unavailable

2

Honda 13021-002-000

RING SET, PISTON (OS 0.25)

$61.99

$

Usually ships in 3-6 days

0

2

Honda 13031-002-000

RING SET, PISTON (OS 0.50)

$

$

Not available

2

Honda 13041-002-000

RING SET, PISTON (0.75) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13101-812-000

PISTON (STD)

$36.99

$

Usually ships in 3-6 days

0

3

Honda 13102-812-000

PISTON (OS 0.25) (NOT AVAILABLE)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 13103-812-000

PISTON (OS 0.50) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13104-812-000

PISTON (0.75) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 13111-812-000

PIN, PISTON

$

$

Currently unavailable

5

Honda 13200-812-000

ROD, CONNECTING

$116.99

$

Usually ships in 3-6 days

0

6

Honda 13204-812-000

PLATE, LOCK (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 13203-812-000

BOLT, CONNECTING ROD

$

$

Not available

8

Honda 94303-05080

SEE PART DETAILS - PRI; PIN, DOWEL (5X8)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 94601-13000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$0.99

$

In Stock, only 2 left!

0

10

Honda 96100-60020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6002)

$15.99

$

Usually ships in 3-6 days

0

11

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
