ER400 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1175814 - GE300-2147285) CARBURETOR Parts Diagram

Generator, Made in Japan

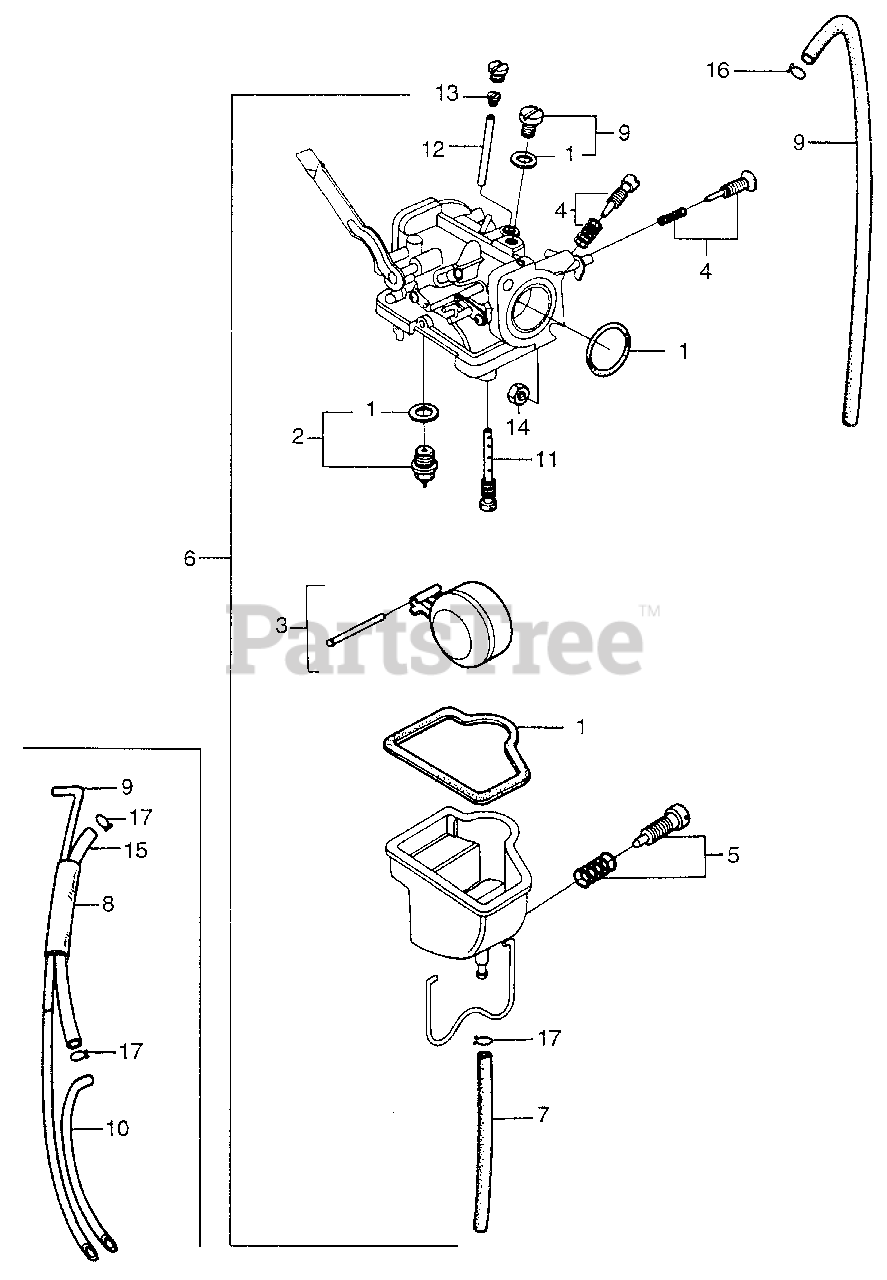

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-812-004

GASKET SET (NOT AVAILABLE)

$

$

Not available

2

Honda 16011-866-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16013-812-004

FLOAT SET

$

$

Not available

4

Honda 16016-836-004

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16024-836-004

SCREW SET, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16100-836-004

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16118-836-010

PIPE, RUBBER (2.5X7X60) (NOT AVAILABLE)

Note: Use from Engine SN 2000001.

$

$

Currently unavailable

8

Honda 16854-836-010

SEE PART DETAILS - PRI; RUBBER, SUPPORTER

$

$

Not available

9

Honda 16855-836-010

SEE PART DETAILS - PRI; TUBE, VALVE BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16856-836-000

SEE PART DETAILS - PRI; TUBE, CARBURETOR OVERFLOW (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 99114-836-0550

JET, MAIN (#55) Use up to Engine SN 1205100.

$

$

Not available

11

Honda 99114-836-0580

JET, MAIN (#58) Use up to Engine SN 1205100.

$

$

Not available

11

Honda 99114-836-0581

JET, MAIN (#58) Use from Engine SN 1205101 to 2000000.

$

$

Not available

11

Honda 99114-836-0582

JET, MAIN (#58) Use from Engine SN 2000001.

$

$

Currently unavailable

11

Honda 99114-836-0600

JET, MAIN (#60)

Note: Use up to Engine SN 1205100.

$

$

Currently unavailable

11

Honda 99114-836-0620

JET, MAIN (#62) Use up to Engine SN 1205100.

$

$

Currently unavailable

12

Honda 99124-816-0420

SEE PART DETAILS - PRI; JET, SLOW (#42)

$

$

Currently unavailable

12

Honda 99124-836-0380

JET, SLOW (#38)

$

$

Not available

12

Honda 99124-836-0400

JET, SLOW (#40)

$

$

Currently unavailable

12

Honda 99124-836-0450

JET, SLOW (#45)

$

$

Not available

12

Honda 99124-836-0480

JET, SLOW (#48)

$

$

Not available

13

Honda 99134-551-0400

SEE PART DETAILS - PRI; JET, SLOW AIR

$

$

Currently unavailable

13

Honda 99134-836-0380

SEE PART DETAILS - SUP; JET, PILOT (#38)

$

$

Currently unavailable

13

Honda 99134-836-0400

SEE PART DETAILS - SUP; JET, PILOT (#40)

$

$

Currently unavailable

13

Honda 99134-836-0480

JET, PILOT (#48)

$

$

Not available

13

Honda 99144-286-0420

SEE PART DETAILS - PRI; JET, PILOT (#42)

$

$

Currently unavailable

13

Honda 99144-286-0450

SEE PART DETAILS - PRI; JET, PILOT (#45)

$

$

Not available

14

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95001-45000

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5)

Note: Use up to Engine SN 1240000.

$54.99

$

In Stock, only 1 left!

0

15

Honda 95001-45000-90

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45100

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45100-90

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45120

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X132)

Note: Use from Engine SN 1240001.

$54.99

$

In Stock, only 1 left!

0

15

Honda 95001-45150

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

15

Honda 95001-45210

SEE PART DETAILS - SUP; TUBE (4.5X130)

Note: Use up to Engine SN 1240000.

$

$

Currently unavailable

16

Honda 95002-02650

SEE PART DETAILS - PRI; CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 4 left!

0

17

Honda 95002-45000

CLIP, TUBE (4.5)

$1.99

$

In Stock, Qty 9

0
