ER1500 A (G41) - Honda Generator, Made in Japan (SN: G41-1018501 - G41-1071999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

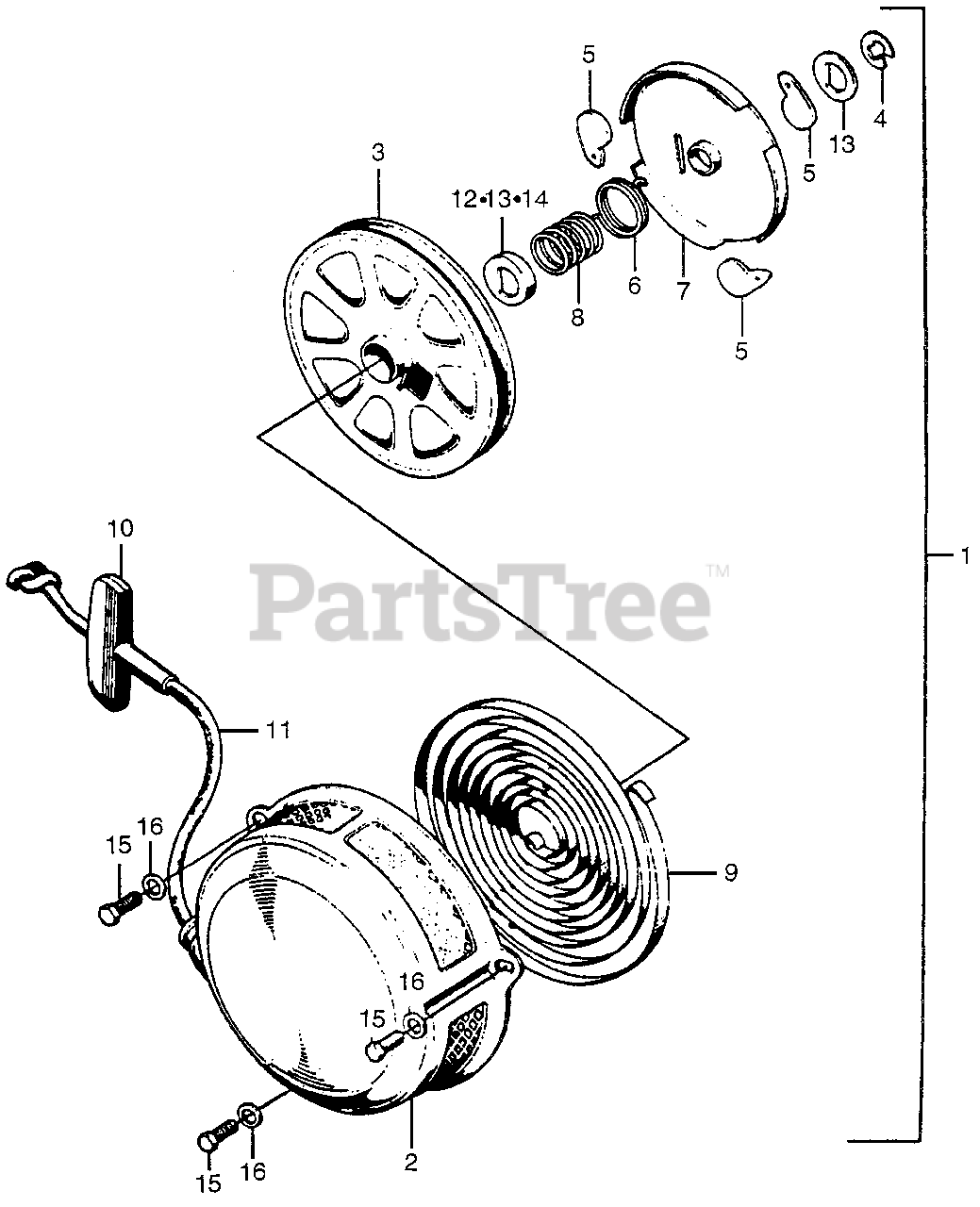

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-848-024H

RECOIL, STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-848-811H

CASE, RECOIL STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28420-848-810

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28423-810-810

E-RING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 28441-848-810

RATCHET, STARTER

$7.99

$

Usually ships in 3-6 days

0

6

Honda 28455-822-650

SPRING, SET

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28445-848-810

PLATE, FRICTION

$

$

Not available

8

Honda 28446-809-810

SPRING, FRICTION

$2.49

$

Usually ships in 3-6 days

0

9

Honda 28451-848-810

SPRING, STARTER RETURN

$39.99

$

Usually ships in 3-6 days

0

10

Honda 28461-950-305

SEE PART DETAILS - PRI; KNOB SET, STARTER

$

$

Currently unavailable

11

Honda 28462-ZE8-004

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#6X54")

$

$

Not available

12

Honda 90481-809-810

WASHER A

$

$

Not available

13

Honda 90482-822-650

WASHER B (NOT AVAILABLE)

Note: Use up to Engine SN 2115070.

$

$

Currently unavailable

15

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
