EQ 700 X (2691476-01) - Murray 21" Self Propelled Walk-Behind Mower (2018) Drive Group Parts Diagram

21" Self Propelled Walk-Behind Mower

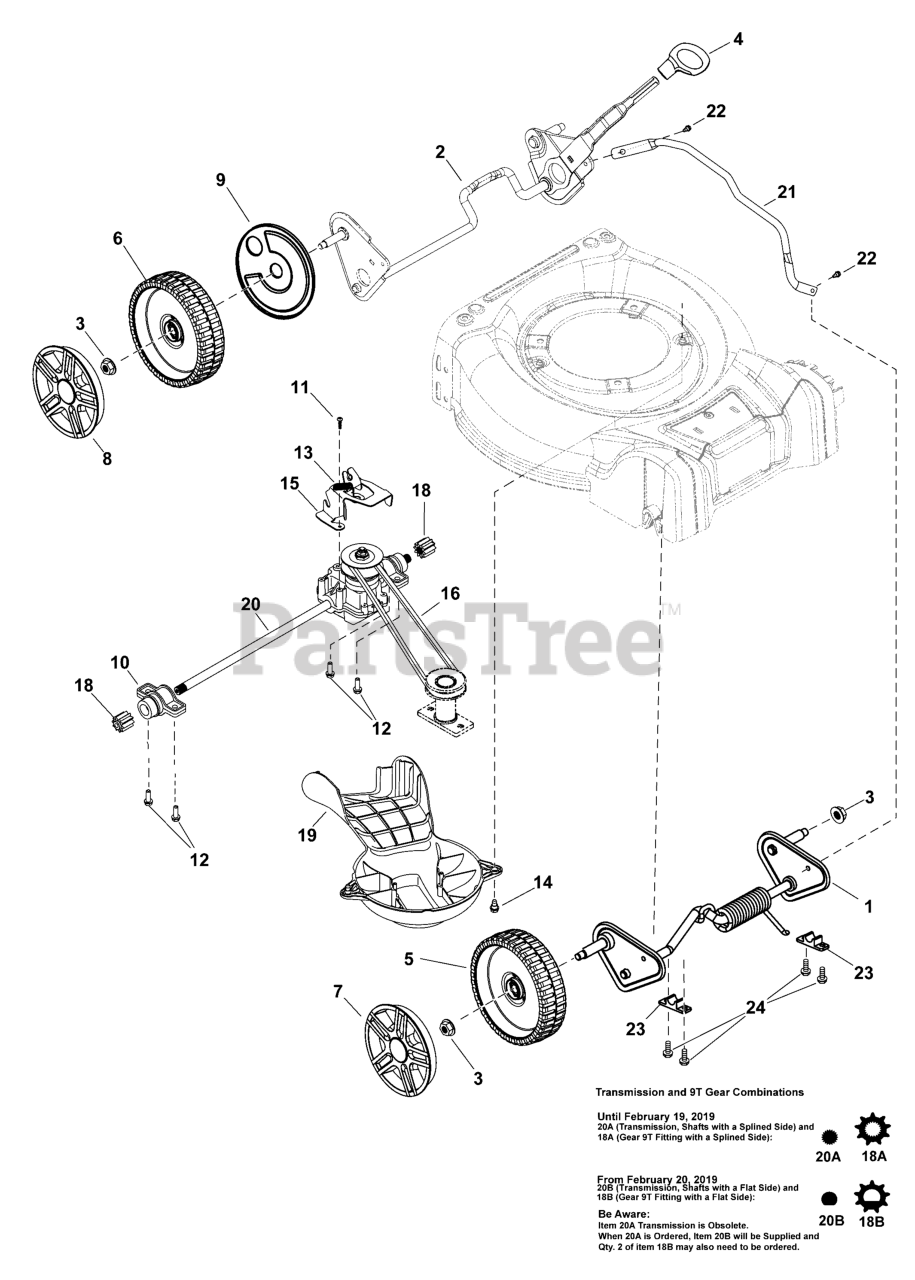

Drive Group Parts Diagram

  • Title
1

$

$

Currently unavailable

$

$

Currently unavailable

3

Briggs & Stratton 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

$

$

Currently unavailable

5

$

$

Currently unavailable

6

$

$

Currently unavailable

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Briggs & Stratton 703503

DUST COVER, Wheel

$18.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 7900023SM

CAPSCREW, Hex Head Flange Taptite, 1/4-15 X 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0

13

Briggs & Stratton 703516

SPRING, Extension, 2.405

$7.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 303714

SCREW, Shoulder

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

18A

Briggs & Stratton 704782

GEAR, 9 Tooth

Note: (Old Spline Version)

$

$

Currently unavailable

18B

Briggs & Stratton 700148

GEAR, 9 Tooth
(Superseded to 880615YP)

Note: (New Version with a Flat)

$4.99

$

Usually ships in 2-12 days

0

19

$

$

Currently unavailable

20A

Briggs & Stratton 84002583

TRANSMISSION

Note: (Old Spline Version No Longer Available)

$

$

Currently unavailable

20B

Briggs & Stratton 1761289YP

TRANSMISSON

Note: (New Version with a Flat on Shaft End, Requires Qty. 2 of Spur Gear with a Flat. Can Not be used with Old Spline Version Spur Gear.)

$

$

Currently unavailable

21

Briggs & Stratton 704707

TUBE

Note: (Wheel Height Adjustment)

$

$

Currently unavailable

22

Briggs & Stratton 303714

SCREW, Shoulder

$

$

Currently unavailable

23

Briggs & Stratton 703524

BUSHING, Bearing, Front Crossbar

$10.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750

$4.49

$

In Stock, Qty 12

0
