EQ 700 X (2691476-01) - Murray 21" Self Propelled Walk-Behind Mower (2018) Deck Group Parts Diagram

21" Self Propelled Walk-Behind Mower

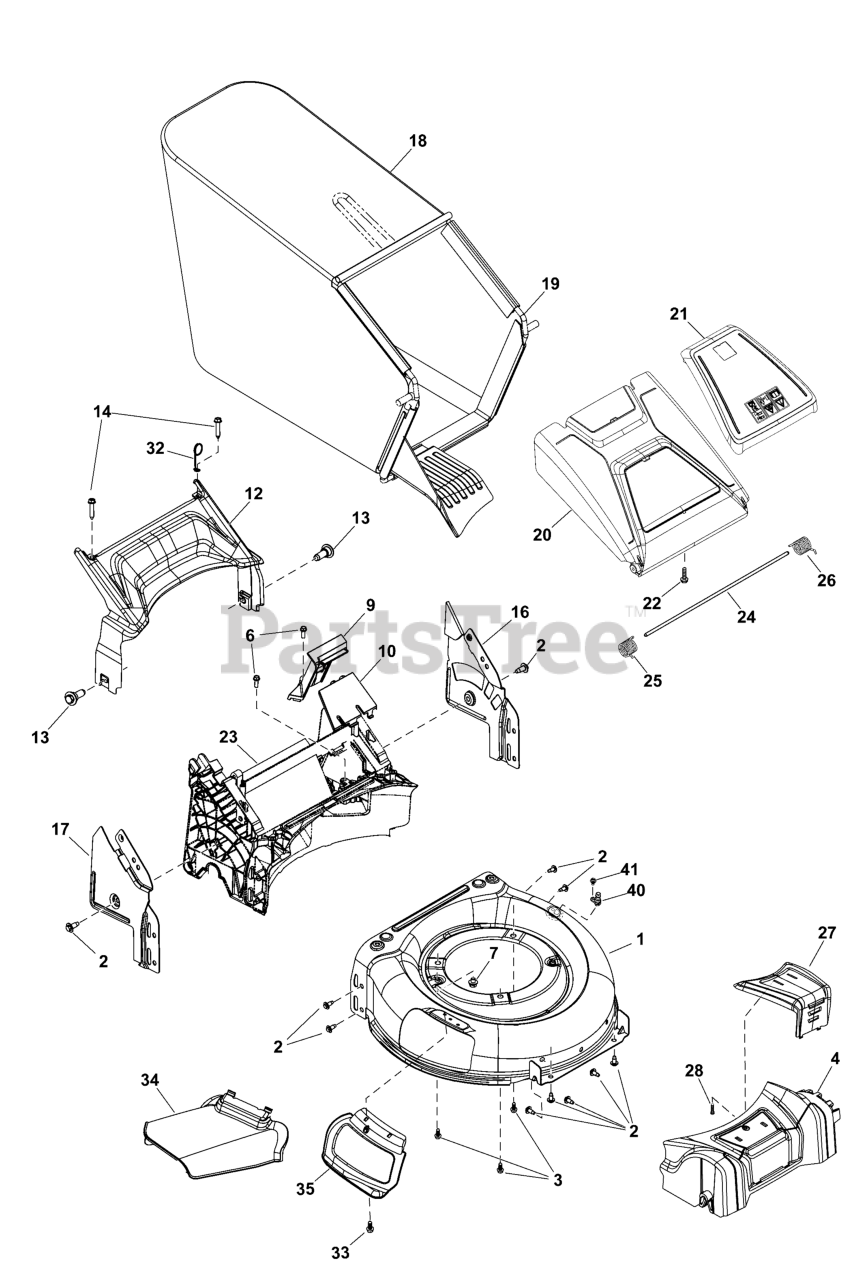

Deck Group Parts Diagram

  • Title

1

DECK, NSP

Note: (Not Serviceable)

$

$

Not available

2

Briggs & Stratton 704787

SCREW, Hex Head

$

$

Currently unavailable

3

Briggs & Stratton 707904

SCREW, Engine Mounting, 3/8-16 x 1

$16.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704766

FRONT COVER, Deck

$

$

Currently unavailable

6

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 84002598

LOCKNUT, Square

$25.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 704760

COVER, Rear

$

$

Currently unavailable

10

Briggs & Stratton 704759

COVER, Front

$

$

Currently unavailable

12

Briggs & Stratton 704754

COVER, Rear

$

$

Currently unavailable

13

Briggs & Stratton 703523

SCREW, 5/16-14

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 704789

SCREW, 1/4-15 x 1-1/4

$

$

Currently unavailable

16

Briggs & Stratton 704690

SUPPORT, Handle, LH

Note: Before Serial Number EAA1481575

$

$

Currently unavailable

16

Briggs & Stratton 84002578

SUPPORT, Handle, LH

Note: After Serial Number EAA1481574

$

$

Currently unavailable

17

Briggs & Stratton 704689

SUPPORT, Handle, RH

Note: Before Serial Number EAA1481575

$

$

Currently unavailable

17

Briggs & Stratton 84002579

SUPPORT, Handle, RH

Note: After Serial Number EAA1481574

$

$

Currently unavailable

18

Briggs & Stratton 704796

BAG

$

$

Currently unavailable

19

Briggs & Stratton 84002585

FRAME

$214.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 704768

REAR FLAP

$

$

Currently unavailable

21

Briggs & Stratton 704747

COVER, Gray

$

$

Currently unavailable

22

Briggs & Stratton 704786

SCREW #10-16 x 3/4

$

$

Currently unavailable

23

Briggs & Stratton 704810

BAFFLE, Rear

$

$

Currently unavailable

24

Briggs & Stratton 704714

ROD

$

$

Currently unavailable

25

Briggs & Stratton 704735

TORSION SPRING, RH

$12.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704734

TORSION SPRING, LH

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 704745

INSERT, Front Cover

$

$

Currently unavailable

28

Briggs & Stratton 84002595

SCREW, 35 x 14

$

$

Currently unavailable

32

Briggs & Stratton 84002596

GUIDE, Cable

$

$

Currently unavailable

33

Briggs & Stratton 84002592

CAPSCREW, 1/4-20 X 1/2

$

$

Currently unavailable

34

Briggs & Stratton 704753

COVER, Side

$

$

Currently unavailable

35

Briggs & Stratton 84002577

MULCHING FLAP

$

$

Currently unavailable

36

Briggs & Stratton 84002594

LEVER, Adjustment

Note: (Mulching Flap Adjustment Lever Not Illustrated)

$

$

Currently unavailable

37

Briggs & Stratton 703490

KNOB, Adjustment Lever

Note: (Adjustment Lever Knob Not Illustrated)

$9.99

$

In Stock, Qty 7

0

40

Briggs & Stratton 703502

NOZZLE, Water

$6.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 303714

SCREW, Shoulder

$

$

Currently unavailable

42

Briggs & Stratton 84002593

CAPSCREW, 1/4-20 X 3/8

Note: (Mulching Flap Adjustment Lever mounting screw Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0
