EQ 700 X (2691215-00) - Murray 21" Self Propelled Walk-Behind Mower (2014) Drive Group (2691215) Parts Diagram

21" Self Propelled Walk-Behind Mower

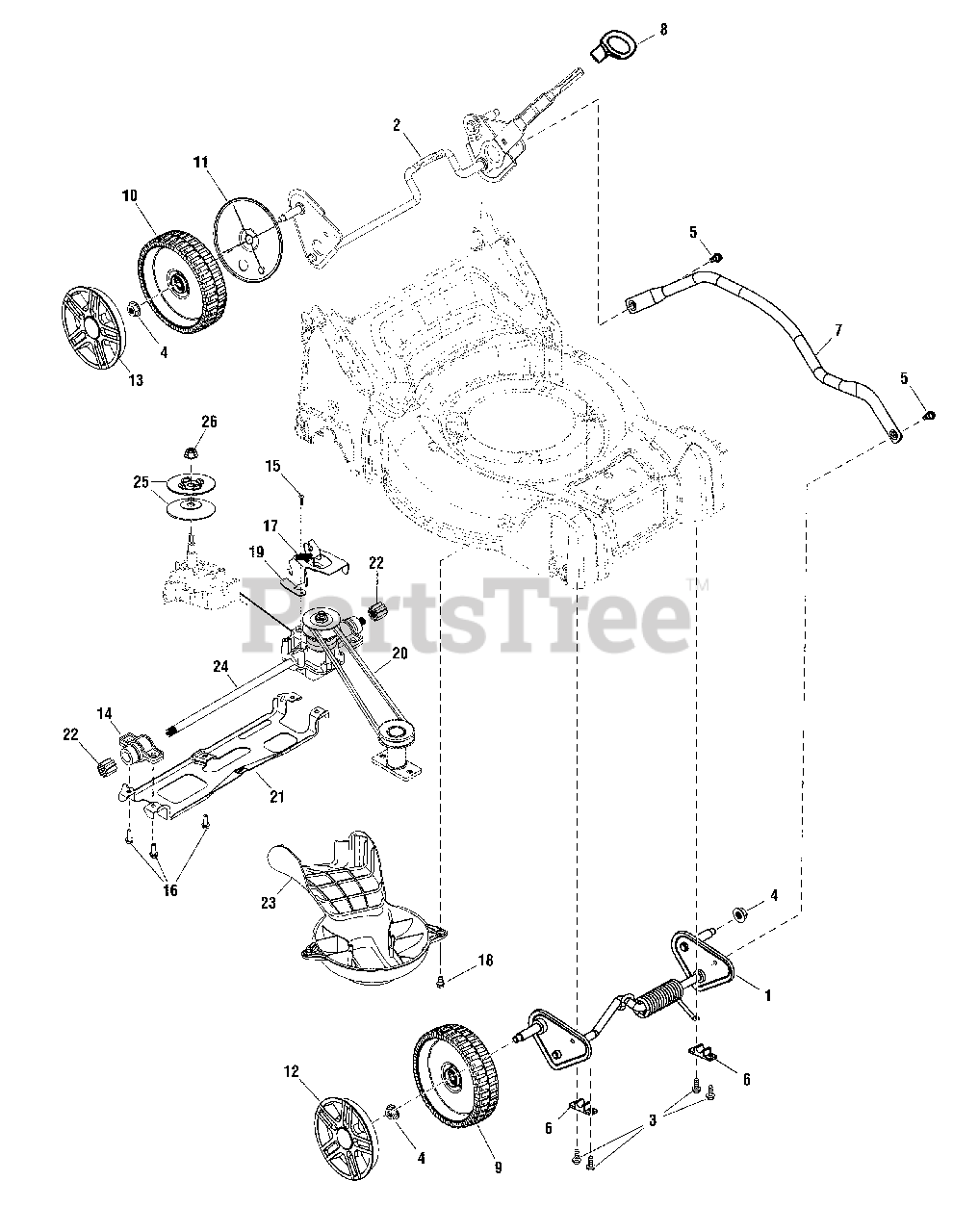

Drive Group (2691215) Parts Diagram

  • Title

1

Briggs & Stratton 704819

AXLE, Front

$

$

Currently unavailable

2

Briggs & Stratton 704818

AXLE, Rear

$

$

Currently unavailable

3

Briggs & Stratton 7091081SM

SCREW, 1/4-15 X .750

$4.49

$

In Stock, Qty 12

0

4

Briggs & Stratton 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 703714

SCREW, 1/4-20 x 1/2

$

$

Currently unavailable

6

Briggs & Stratton 703524

BUSHING, Lock

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 704707

TUBE

$

$

Currently unavailable

8

Briggs & Stratton 704780

KNOB, Red

$

$

Currently unavailable

8

Briggs & Stratton 703648

KNOB, Black

$

$

Currently unavailable

9

Briggs & Stratton 704805

WHEEL, Front

$

$

Currently unavailable

10

Briggs & Stratton 704802

WHEEL, Drive

$

$

Currently unavailable

11

Briggs & Stratton 703503

DUST COVER, Wheel

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 704738

HUBCAP

$

$

Currently unavailable

13

Briggs & Stratton 704737

HUBCAP, Rear

$

$

Currently unavailable

14

Briggs & Stratton 703469

BEARING ASSEMBLY

$11.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 7900023SM

SCREW, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 3 left!

0

17

Briggs & Stratton 703516

SPRING

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 703714

SCREW, 1/4-20 x 1/2

$

$

Currently unavailable

19

Briggs & Stratton 704694

BRACKET

$

$

Currently unavailable

20

Briggs & Stratton 704702

BELT

$

$

Currently unavailable

21

Briggs & Stratton 703542

BRACKET, Rear Support

$26.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 700148

GEAR, 9 Tooth
(Superseded to 880615YP)

Note: ( Refer to Note: *)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 704814

COVER, Rear

$

$

Currently unavailable

24

Briggs & Stratton 1761289YP

TRANSMISSON

Note: ( Refer to Note: *)

$

$

Currently unavailable

25

Briggs & Stratton 704698

PULLEY HALF

$

$

Currently unavailable

26

Briggs & Stratton 704783

NUT, Lock

$

$

Currently unavailable
