EQ 300 E (2691602-01) - Murray 16" Self Propelled Walk-Behind Mower (2020) Drive Group_C Parts Diagram

16" Self Propelled Walk-Behind Mower

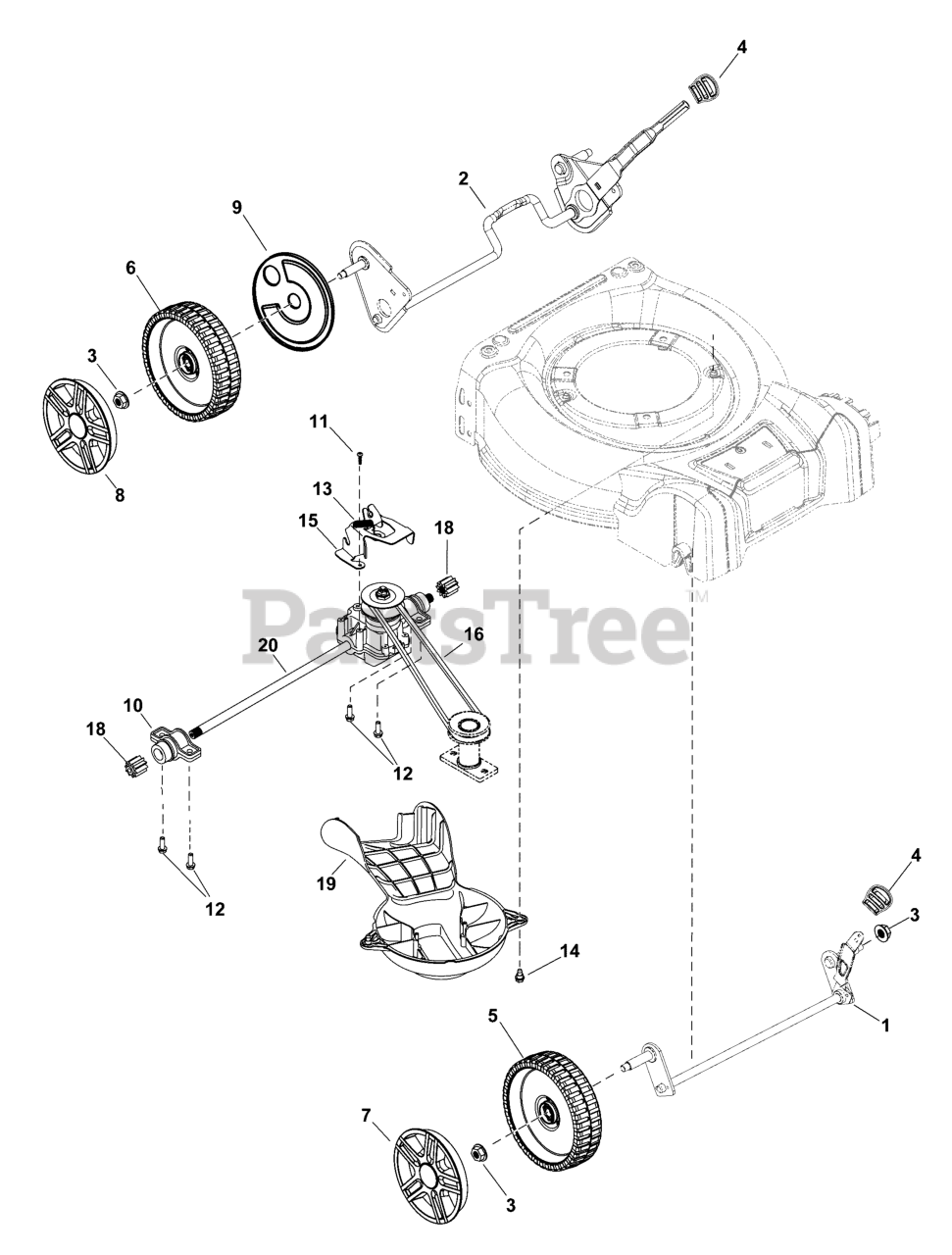

Drive Group_C Parts Diagram

  • Title

1

Briggs & Stratton 704827

AXLE, FRONT

$

$

Currently unavailable

2

Briggs & Stratton 704822

AXLE, Rear

$

$

Currently unavailable

3

Briggs & Stratton 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 703490

KNOB, Adjustment Lever

$9.49

$

In Stock, Qty 8

0

5

Briggs & Stratton 704732

WHEEL, 180 x 47

$

$

Currently unavailable

6

Briggs & Stratton 704806

WHEEL, Drive

$

$

Currently unavailable

7

Briggs & Stratton 704739

HUB CAP, Front

Note: (180mm)

$

$

Currently unavailable

8

Briggs & Stratton 704738

HUBCAP

Note: (200mm)

$

$

Currently unavailable

9

Briggs & Stratton 703505

DUST COVER, Wheel

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703469

ASSEMBLY, Bearing

$11.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 703479

SCREW, Hex Washer Head, .159 x .43

$7.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 7900023SM

CAPSCREW, Hex Head Flange Taptite, 1/4-15 X 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 703516

SPRING, Extension, 2.405

$7.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 303714

SCREW, Shoulder

$

$

Currently unavailable

15

Briggs & Stratton 704694

BRACKET

$

$

Currently unavailable

16

Briggs & Stratton 704700

BELT

$

$

Currently unavailable

18

Briggs & Stratton 84004933

GEAR, Spur (10T)

Note: (New Version with a Flat)

$9.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 704812

COVER, Rear

$

$

Currently unavailable

20

Briggs & Stratton 84006885

TRANSMISSION

Note: (New Version with a Flat on Shaft End, Requires Qty. 2 of Spur Gear with a Flat. Can Not be used with Old Spline Version Spur Gear.)

$

$

Currently unavailable
