EQ 200 (2691601-00) - Murray 16" Walk-Behind Mower (2019) Deck Group Parts Diagram

16" Walk-Behind Mower

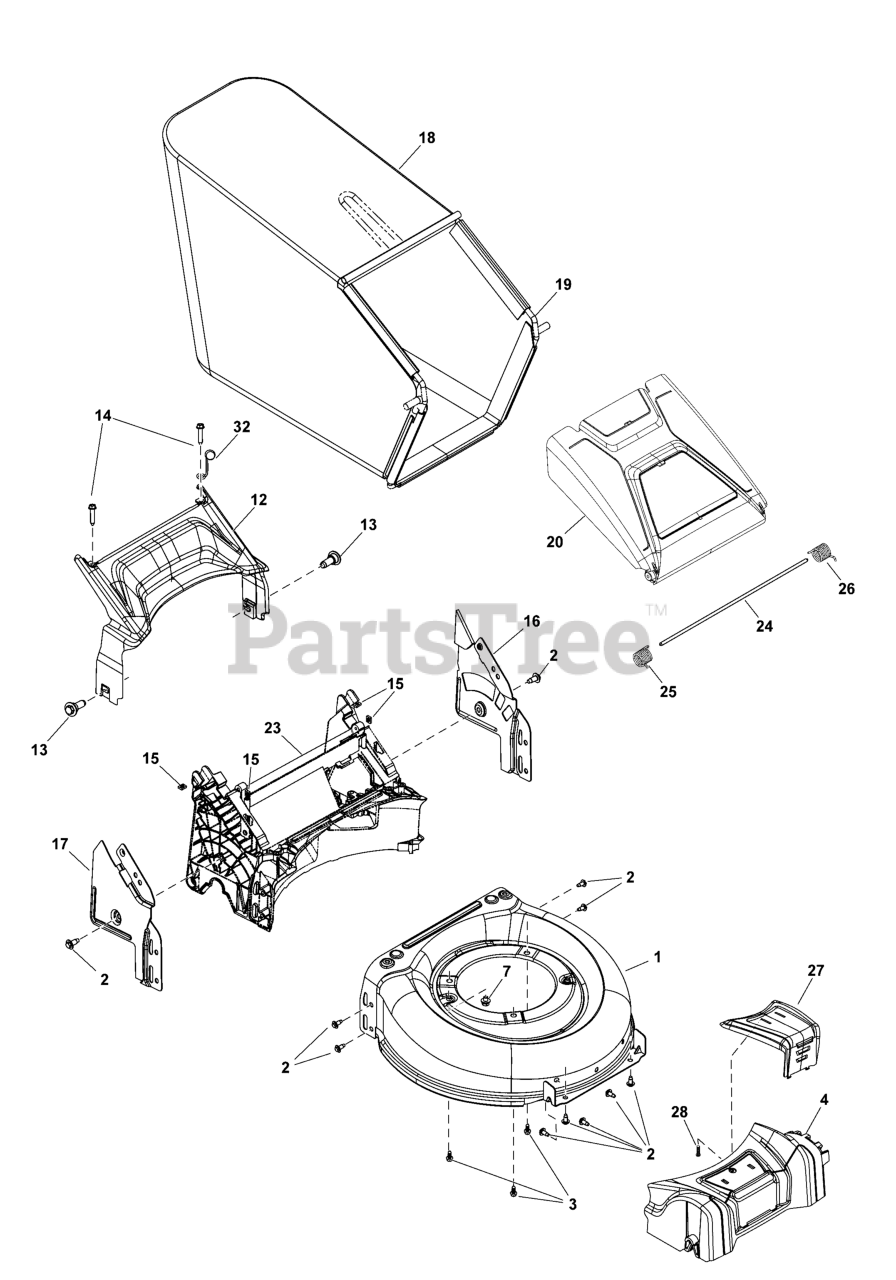

Deck Group Parts Diagram

  • Title

1

DECK, NSP

$

$

Not available

2

Briggs & Stratton 704787

SCREW, Hex Head

$

$

Currently unavailable

3

Briggs & Stratton 707904

SCREW, Engine Mounting, 3/8-16 x 1

$15.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 704757

FRONT COVER, Deck

$

$

Currently unavailable

7

Briggs & Stratton 704784

SCREW

$

$

Currently unavailable

12

Briggs & Stratton 704755

COVER, Rear

$

$

Currently unavailable

13

Briggs & Stratton 703523

BOLT, Shoulder, 5/16-14 x .972

$6.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 704789

SCREW, 1/4-15 x 1-1/4

$

$

Currently unavailable

15

Briggs & Stratton 84002598

LOCKNUT, Square

$25.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84002578

SUPPORT, Handle, LH

Note: Replaces Older and Newer Part Versions

$

$

Currently unavailable

17

Briggs & Stratton 84002579

SUPPORT, Handle, RH

Note: Replaces Older and Newer Part Versions

$

$

Currently unavailable

18

Briggs & Stratton 84006471

BAG

$

$

Currently unavailable

19

Briggs & Stratton 84002576

FRAME

$

$

Currently unavailable

20

Briggs & Stratton 704763

REAR FLAP

$

$

Currently unavailable

23

Briggs & Stratton 84002600

BAFFLE, Rear

$

$

Currently unavailable

24

Briggs & Stratton 704717

ROD

$

$

Currently unavailable

25

Briggs & Stratton 704735

TORSION SPRING, RH

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 704734

TORSION SPRING, LH

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 704748

INSERT, Front Cover

$

$

Currently unavailable

28

Briggs & Stratton 84002595

SCREW, 35 x 14

$

$

Currently unavailable

32

Briggs & Stratton 84002596

GUIDE, Cable

$

$

Currently unavailable
