EP2500CX 1 AH (EAHC) - Honda Generator, Made in China (SN: EAHC-1000001 - EAHC-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in China

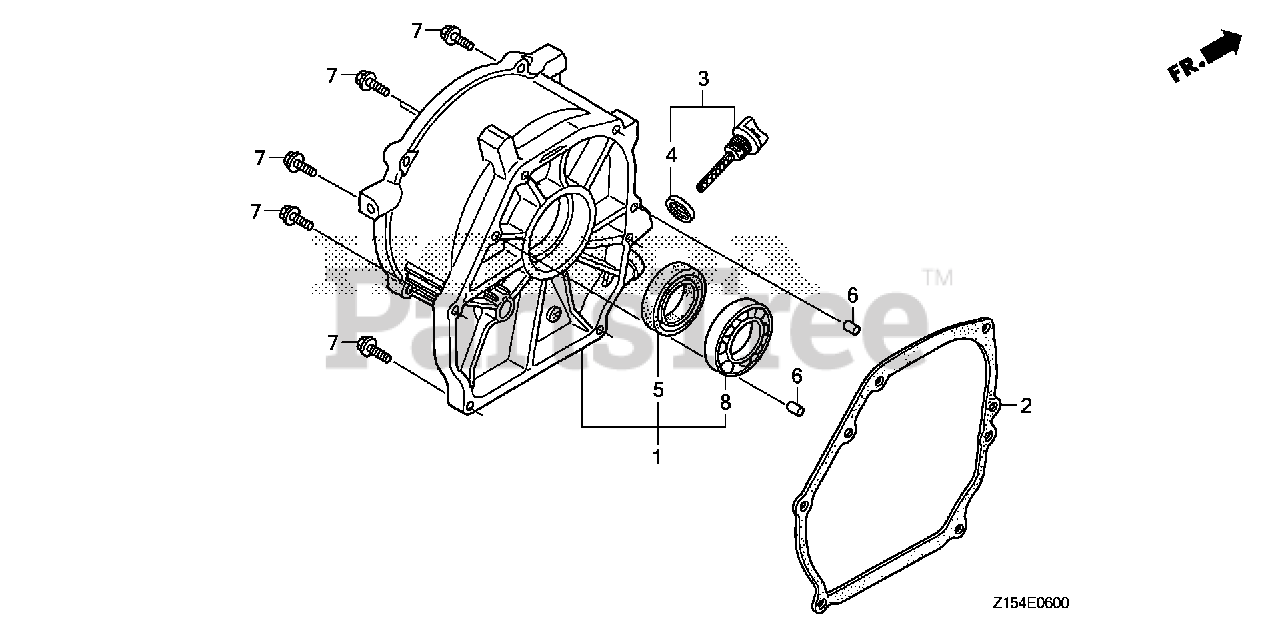

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-Z1T-F00

COVER ASSY., CRANKCASE

$225.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZH8-801

GASKET, CASE COVER (NON-ASBESTOS)

$7.49

$

In Stock, Qty 20+

0

2

Honda 11381-Z1T-701

GASKET, CASE COVER (NINGBO SIL GASKET)

$9.99

$

Usually ships in 3-6 days

0

3

Honda 15600-ZE1-003

CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 7

0

4

Honda 15625-Z1T-000

GASKET, OIL FILLER CAP

$3.99

$

Usually ships in 3-6 days

0

5

Honda 91202-Z1T-003

OIL SEAL (25X41X6)

$10.99

$

In Stock, Qty 5

0

6

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

7

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

8

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

$24.99

$

In Stock, only 3 left!

0
